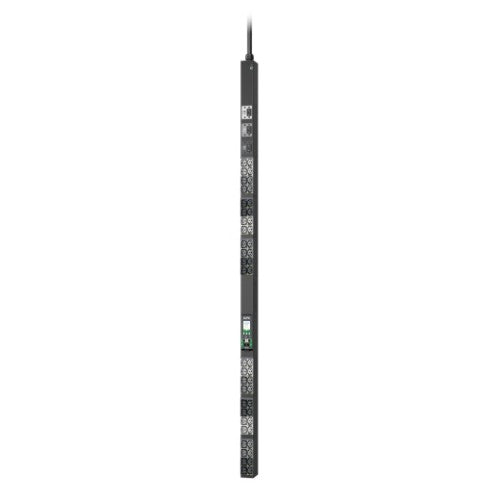

APC NetShelter Rack PDU Advanced, Switched, 8.6kW, 3PH, 208V, 30A, L21-30P, 48 Outlet

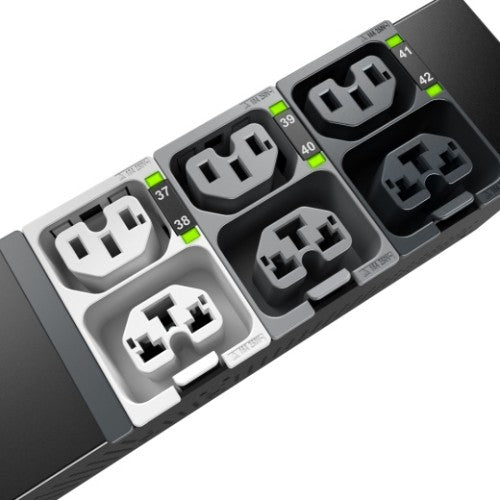

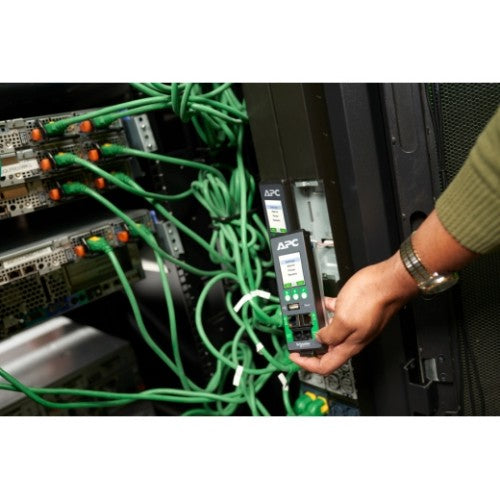

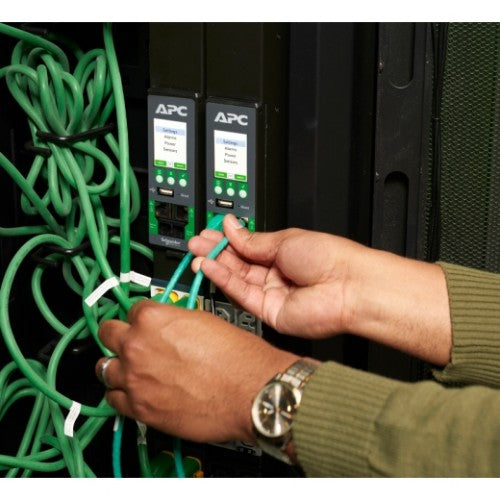

APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. Switched outlets to turn outlets on or off remotely. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2" wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected.

Design
PDU types	Switched
Mounting	Vertical
On/off switch	No
Type	Single-phase
Display	LCD
Product colour	Black
Certification	CSA C22.2 No 62368-1, FCC part 15 subpart B, UL 62368-1
Rack capacity	0U
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
Features
Certification	CSA C22.2 No 62368-1, FCC part 15 subpart B, UL 62368-1
Daisy chain	Yes
Ergonomics
Display	LCD
Power
Nominal input voltage	200 - 240 V
Maximum current	30 A
Nominal output voltage	208 V
Load capacity	8600 VA
Maximum input current per phase	30 A
Maximum total current draw per phase	24 A
AC input frequency	50 - 60 Hz
Weight & dimensions
Weight	20.7 lbs (9.4 kg)
Width	2.2" (56 mm)
Depth	2.95" (75 mm)
Height	70.1" (1780 mm)
Package width	8.19" (208 mm)
Package depth	4.57" (116 mm)
Package height	78" (1980 mm)
Package weight	27.3 lbs (12.4 kg)
Packaging data
Package width	8.19" (208 mm)
Package depth	4.57" (116 mm)
Package height	78" (1980 mm)
Package weight	27.3 lbs (12.4 kg)
Operational conditions
Operating temperature (T-T)	-5 - 60 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 120000" (0 - 3048 m)
Non-operating altitude	0 - 600000" (0 - 15240 m)
