In stock
- Automatically cuts power to idle equipment to conserve electricity.
Disconnected battery notification
- Warns when a battery is not available to provide backup power.
Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
LCD graphics display
- Text and mimic diagrams that display modes of operation, system parameters and alarms.

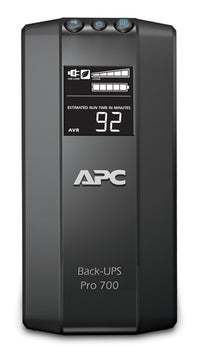

APC BR700G uninterruptible power supply (UPS) 0.7 kVA 420 W
Part number
BR700G
$219.68 CAD
Back UPS RS LCD 700 Master Control
Description
Power-saving outlets- Automatically cuts power to idle equipment to conserve electricity.
Disconnected battery notification
- Warns when a battery is not available to provide backup power.
Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
LCD graphics display
- Text and mimic diagrams that display modes of operation, system parameters and alarms.
Specifications
| Power | |
|---|---|
| Output power capacity | 0.7 kVA |
| Output power | 420 W |
| Surge energy rating | 355 J |
| Ports & interfaces | |
| Cable length | 72" (1.83 m) |
| AC outlet types | NEMA 5-15R |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| Noise level | 40 dB |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Features | |
| Output power capacity | 0.7 kVA |
| Output power | 420 W |
| Surge energy rating | 355 J |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 12 h |
| Design | |
| Product colour | Black |
| Certification | FCC Part 15 Class B, FCC Part 68, NOM, UL 1778 |
| Cable length | 72" (1.83 m) |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -14 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 40% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Packaging data | |
| Package dimensions (WxDxH) | 5.43 x 17.4 x 9.92" (138 x 442 x 252 mm) |
| Package weight | 17.5 lbs (7.95 kg) |
| Certificates | |
| Certification | FCC Part 15 Class B, FCC Part 68, NOM, UL 1778 |
| Weight & dimensions | |
| Weight | 15.8 lbs (7.15 kg) |
| Package weight | 17.5 lbs (7.95 kg) |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Filtering | Yes |
| Output connections | 3 x NEMA 5-15R 3 x NEMA 5-15R |
| Dimensions (WxDxH) | 3.58 x 12.2 x 7.48" (91 x 310 x 190 mm) |
| Package dimensions (WxDxH) | 5.43 x 17.4 x 9.92" (138 x 442 x 252 mm) |
| Nominal output voltage | 120 V |
| Nominal input voltage | 120 V |
