Cover Every Corner with Blazing Fast WiFi 6

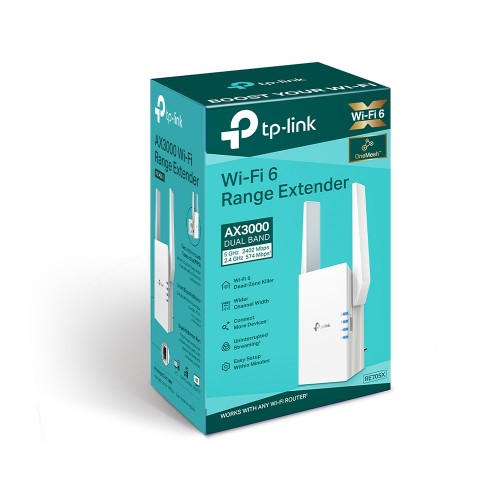

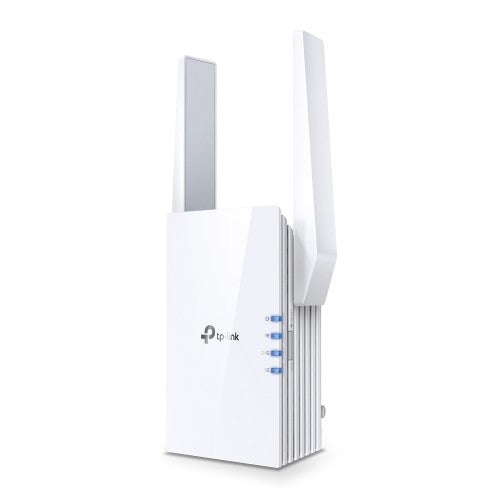

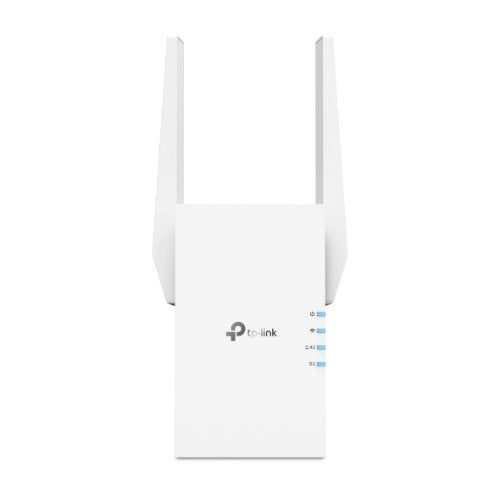

AX3000 WiFi 6 Range Extender

Life in the fast lane with advanced WiFi6

WiFi 6 comes with it all: faster speeds, lower latency, and more connections. It also features 25% faster data throughput compared with last-gen WiFi thanks to 1024-QAM.† With this speed boost, experience high-speed and stable WiFi throughout your rooms.

Double Channel Speed with HE160
Higher Efficiency, Lower Latency

Supports 2x2 160MHz on the 5G band, enjoys wider bandwidth and faster speed than the traditional 80MHz.‡

4 high-performance amplifiers, we got you covered

Enjoy 4K streaming and gaming in whatever room you’re in thanks to RE705X’s 4 high-performance amplifiers. Whether you’re sharing a pad with friends or living in your forever home, RE705X sends out strong signals to those hard-to-cover areas.

OFDMA
More efficient data.

Orthogonal Frequency Division Multiple Access helps integrate the data of different end devices for higher efficiency.‡

Beamforming
Strong, targeted WiFi.

Find the direction of your phone or laptop, and accelerate your signal strength.

Adaptive Path Selection

Keeps your network running at top speed by automatically choosing the fastest connection path to the router.

Flexibly Create Whole Home Mesh WiFi

If you have any dead zones at home, just add another Easymesh-Compatible router/WiFi extender to further form your whole home mesh WiFi. No more searching for a stable connection.

Wide.
Wider.
Widest.

Keep your internet focused on a single room or blanket an entire floor with WiFi by picking between 3 strength levels on the Tether app.

Built-In
Access Point Mode

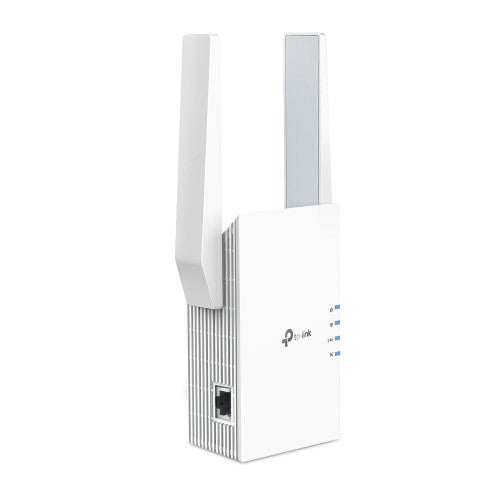

RE705X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2×2 MU-MIMO dual band wireless access point.

Control at Your Fingertips

Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS), including TP-Link routers and range extenders.

Performance
Type	Network transmitter & receiver
Data transfer rate	1000 Mbit/s
Mac operating systems supported	Yes
Antenna
Antenna type	External
Antennas quantity	2
Network
Networking standards	IEEE 802.11a, IEEE 802.11ax, IEEE 802.11g
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max)	2400 Mbit/s
Security algorithms	WEP, WPA, WPA2, WPA3
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Design
Reset button	Yes
LED indicators	Yes
Product colour	White
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	12.6 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	3.82" (97 mm)
Depth	1.81" (46 mm)
Height	6.22" (158 mm)
Packaging data
Package width	7.95" (202 mm)
Package depth	4.92" (125 mm)
Package height	3.82" (97 mm)
Package weight	15.2 oz (430 g)
Technical details
Type	Network transmitter & receiver
Reset button	Yes
Data transfer rate	1000 Mbit/s
LED indicators	Yes
Antennas quantity	2
Compliance certificates	CE, RoHS
System requirements
Mac operating systems supported	Yes
Certificates
Compliance certificates	CE, RoHS
