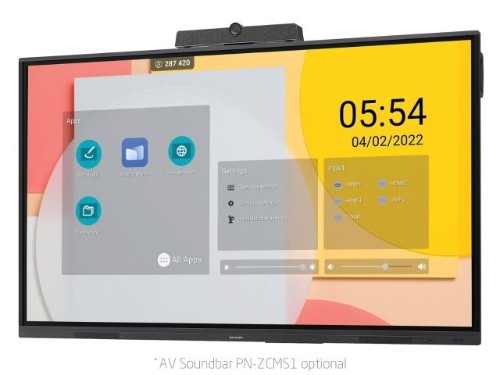

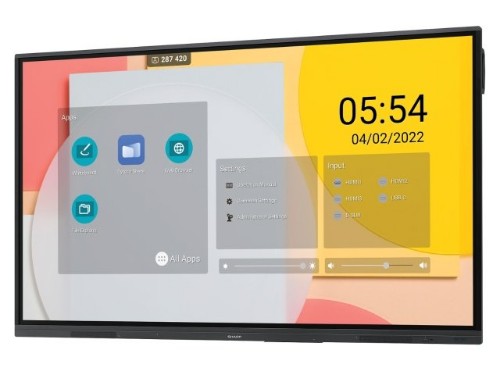

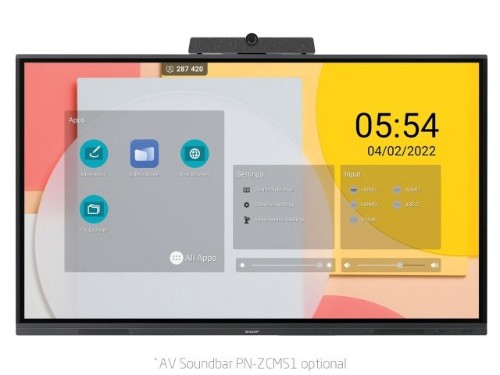

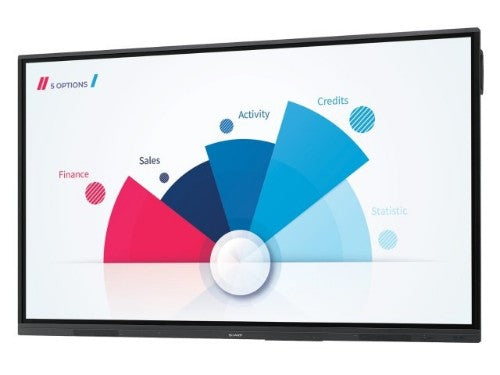

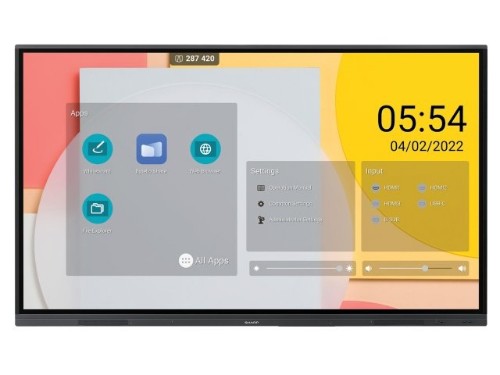

Sharp PNL752B Interactive flat panel 75" LCD Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen Android 16/7
6,960.93 CAD
Skip to product information
Out of stock
Sharp PNL752B Interactive flat panel 75" LCD Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen Android 16/7
Part number
PNL752B
6,960.93 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
62.0 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Pen-On-Paper user experience – Zero Bonding and Sharp’s PrecisionTouch technology enable highly accurate and responsive writing and drawing with up to 20 touch points
- Out-of-the-box collaboration – the integrated Android PC features a powerful home screen launcher offering fast and flexible access to a range of pre-installed applications
- Latest BYOD wireless collaboration – wirelessly share content from any device via the integrated Android PC or utilise the OPS slot to extend the BIG PADs functionality with third-party add-ons and solutions
- Maximum flexibility – provides exceptional freedom of use to meet the demands of even the most challenging corporate environments using USB-C, HDMI or VGA connectors
- ‘Secure by design’ – graded data security allows to adjust the level of security of the Android PC and maintain protection at the security level you need
Enjoy a more natural way of working
The BIG PAD L2B range of smart interactive displays combines genuine ‘4K reading and writing’ and an intuitive ‘Pen-on-Paper’ user experience with Zero Bonding and Sharp’s PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The L2B series also features an integrated Android PC with whiteboard, overlay writing mode and wireless screen sharing functionality as well as graded security to help enhance your productivity.
The BIG PAD L2B series is the perfect choice for busy office environments, boardrooms, meeting rooms and training sessions that require quick responsive operation and smart integrated collaboration tools. It encourages effective group teamwork, promotes idea sharing and helps people deliver great presentations and achieve better meeting outcomes.
The BIG PAD L2B range of smart interactive displays combines genuine ‘4K reading and writing’ and an intuitive ‘Pen-on-Paper’ user experience with Zero Bonding and Sharp’s PrecisionTouch technology. The single USB-C connector makes it so simple to walk into a room, plug in your device and start working together straightaway. The L2B series also features an integrated Android PC with whiteboard, overlay writing mode and wireless screen sharing functionality as well as graded security to help enhance your productivity.
The BIG PAD L2B series is the perfect choice for busy office environments, boardrooms, meeting rooms and training sessions that require quick responsive operation and smart integrated collaboration tools. It encourages effective group teamwork, promotes idea sharing and helps people deliver great presentations and achieve better meeting outcomes.
| Display | |
|---|---|
| LED backlight | Yes |
| Display diagonal | 75" |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Active display area (W x H) | 65 x 36.5" (1650.2 x 928.3 mm) |
| Display diagonal (metric) | 74.5" (189.3 cm) |
| Touchscreen | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 960, 1360 x 768 (WXGA), 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 720, 3840 x 2160, 4096 x 2160 |
| Panel type | VA |
| Number of simultaneous touchpoints | 20 |
| Native aspect ratio | 16:9 |
| LED backlighting type | Direct-LED |
| Display technology | LCD |
| Anti-glare screen | Yes |
| Touchscreen technology | Hybrid Precision |
| Surface hardness | 8 |
| Haze rate | 8% |
| Multi-touch | Yes |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| Ethernet LAN data rates | 100 Mbit/s |
| VGA (D-Sub) input ports | 1 |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| Wi-Fi standards | 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 8 |
| RS-232C | Yes |
| Microphone in | Yes |
| OPS module slot | Yes |
| HDMI input ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio | |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Interactive flat panel |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 400 mm |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Bezel width (top) | 0.661" (1.68 cm) |
| Bezel width (side) | 0.661" (1.68 cm) |
| Bezel width (bottom) | 1.8" (4.57 cm) |
| Anti-glare screen | Yes |
| Mounting type | Wall |
| Screen shape | Flat |
| Performance | |
| Purpose | Corporate |
| Operating hours (hours/days) | 16/7 |
| HDCP | Yes |
| Writing tools | Finger, Passive pen |
| Wi-Fi | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.0 Cheetah |
| Power | |
| Power consumption (typical) | 230 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 400 W |
| Computer system | |
| Operating system installed | Android |
| Computer system | Yes |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Windows operating systems supported | Windows 10 Education, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.0 Cheetah |
| Operating system version | 9 |
| Packaging data | |
| Package width | 73.3" (1863 mm) |
| Package depth | 8.86" (225 mm) |
| Package height | 45.5" (1155 mm) |
| Package weight | 136.7 lbs (62 kg) |
| Remote control included | Yes |
| Cables included | AC, HDMI, USB |
| Batteries included | Yes |
| Packaging content | |
| Remote control included | Yes |
| Cables included | AC, HDMI, USB |
| Batteries included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Thin Client | |
| Operating system installed | Android |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Technical details | |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| Bezel width | 1.8" (4.57 cm) |
| Weight (without stand) | 109.1 lbs (49.5 kg) |
| Panel type | VA |
| Number of simultaneous touchpoints | 20 |
| LED backlighting type | Direct-LED |
| Height (without stand) | 40.1" (1019.8 mm) |
| Depth (without stand) | 3.37" (85.7 mm) |
| OPS slot | 1 |
| Internal memory | 4000 MB |
| Compliance certificates | CE, REACH, RoHS |
| Other features | |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| Bezel width | 1.8" (4.57 cm) |
| Wi-Fi standards | 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Weight (without stand) | 109.1 lbs (49.5 kg) |
| USB 2.0 ports quantity | 1 |
| Power consumption (max) | 400 W |
| Panel type | VA |
| Number of simultaneous touchpoints | 20 |
| Mobile operating systems supported | Android |
| Microphone in | Yes |
| Height (without stand) | 40.1" (1019.8 mm) |
| Headphone outputs | 1 |
| Display technology | LCD |
| Depth (without stand) | 3.37" (85.7 mm) |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Bezel width (top) | 0.661" (1.68 cm) |
| Bezel width (side) | 0.661" (1.68 cm) |
| Bezel width (bottom) | 1.8" (4.57 cm) |
| Backlight type | LED |
| Audio output | 1 x 3,5 mm jack |
| Audio input | 1 x 3,5 mm jack |
| Windows operating systems supported | Windows 10 Education, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.0 Cheetah |
| OPS module slot | Yes |
