The DWMM4[G]-6-60 Antenna Provides a 4x4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz.

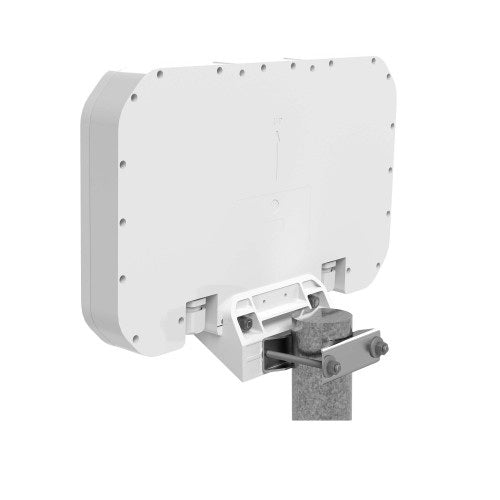

Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps.

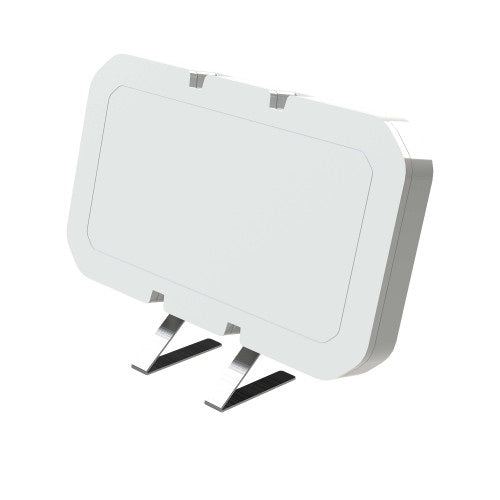

The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.

The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.

Performance
Antenna gain level (max)	7 dBi
Frequency band	617-960 / 1427-6000, 1559-1612 GHz
Impedance	50 Ω
Features
Type of clamp	U-bolt
Mounting pipe	0 - 1.97" (0 - 50 mm)
International Protection (IP) code	IP66
Connector gender	Male
Antenna type	Omni-directional antenna
Purpose	Indoor & outdoor
Mounting	Wall/Pole
Cable type	CS32
Cable length	19.7" (0.5 m)
Antenna connector type	SMA
Product colour	White
Antenna gain level (max)	7 dBi
Frequency band	617-960 / 1427-6000, 1559-1612 GHz
Impedance	50 Ω
Power
Input voltage	3 - 5 V
Power consumption	20 mA
Operational conditions
Operating temperature (T-T)	-40 - 85 °C
Weight & dimensions
Width	14.6" (371 mm)
Depth	1.57" (40 mm)
Height	8.7" (221 mm)
Packaging content
Mounting kit	Yes
Stand included	Yes
Cables included	Coaxial
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
