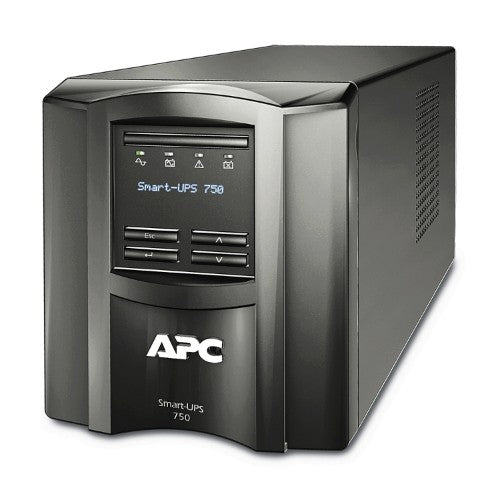

APC SMT750X93 uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 500 W 6 AC outlet(s)
Part number
SMT750X93
$1,234.14 CAD
750 VA, 500 W, 120 V, 593 J, 41 dBA, NEMA 5-15P, 6 NEMA 5-15R, Lead-Acid battery, 6 ms
Description
APC Smart-UPS 750VA 120V ShipboardSpecifications
| Power | |
|---|---|
| Output power capacity | 0.75 kVA |
| Output power | 500 W |
| Input operation voltage (min) | 82 V |
| Input operation voltage (max) | 144 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 593 J |
| Output frequency | 50/60 Hz |
| Input frequency | 50/60 Hz |
| Performance | |
| UPS topology | Line-Interactive |
| Response time | 6 ms |
| Waveform | Sine |
| Noise level | 41 dB |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 0.75 kVA |
| Response time | 6 ms |
| Output power | 500 W |
| Input operation voltage (min) | 82 V |
| Input operation voltage (max) | 144 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 593 J |
| Waveform | Sine |
| Output frequency | 50/60 Hz |
| Noise level | 41 dB |
| Audible alarm(s) | Yes |
| Input frequency | 50/60 Hz |

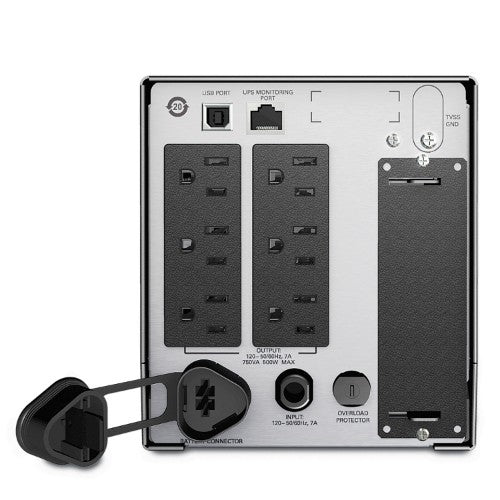

| Ports & interfaces | |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Power plug | NEMA 5-15P |
| USB port | Yes |
| USB port type | USB Type-B |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 15 min |
| Typical backup time at full load | 5 min |
| Battery capacity | 172 Ah |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Certification | CSA C22.2 No 107.1, REACH, RoHS, WEEE |
| LED indicators | Yes |
| Control type | Buttons |
| Display type | LED |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Doesn't contain | Mercury |
| Warranty period | 3 year(s) |
| Compliance certificates | REACH, RoHS, WEEE |
| Weight & dimensions | |
| Width | 5.43" (138 mm) |
| Depth | 14.5" (369 mm) |
| Height | 6.34" (161 mm) |
| Weight | 27.6 lbs (12.5 kg) |
| Package width | 19.6" (499 mm) |
| Package depth | 10.9" (278 mm) |
| Package height | 11.9" (301 mm) |
| Package weight | 30.9 lbs (14 kg) |
| Packaging data | |
| Manual | Yes |
| Package width | 19.6" (499 mm) |
| Package depth | 10.9" (278 mm) |
| Package height | 11.9" (301 mm) |
| Package weight | 30.9 lbs (14 kg) |
| Certificates | |
| Certification | CSA C22.2 No 107.1, REACH, RoHS, WEEE |
| Packaging content | |
| Manual | Yes |
