- Connect up to four RS-232/RS-422/RS-485 serial devices to a network
- Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps

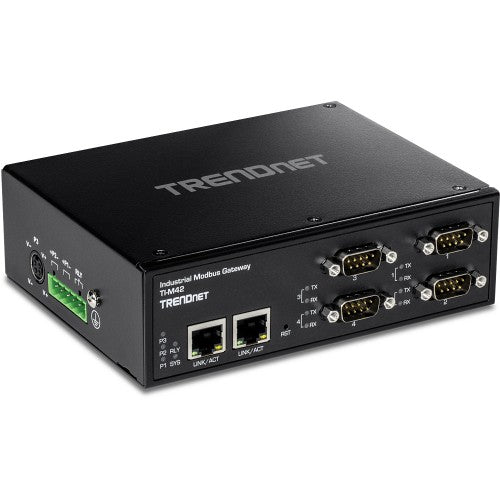

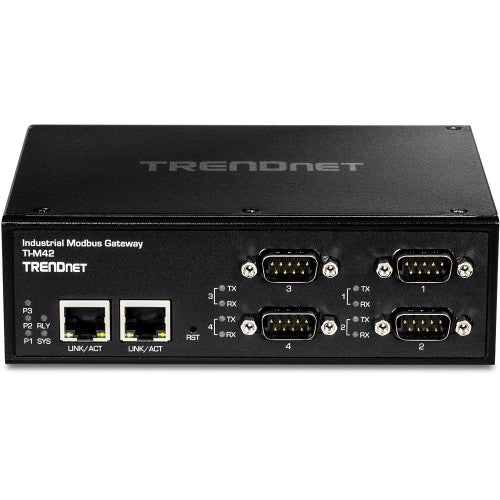

TRENDnet’s Industrial Modbus Gateway, model TI-M42, provides four port serial connections, and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling . This industrial gateway allows users to connect four modbus serial devices to a network.
Network
Two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling.
Serial Connector
Connect up to four RS-232/RS-422/RS-485 serial devices to the network.
Industrial Design
Designed with a rugged IP30 rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and operates within a wide operation temperature range -40° - 75° C (-40° – 167° F).
Network
Two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling.
Serial Connector
Connect up to four RS-232/RS-422/RS-485 serial devices to the network.
Industrial Design
Designed with a rugged IP30 rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and operates within a wide operation temperature range -40° - 75° C (-40° – 167° F).
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| Features | |
| Interface | 4 x Serial (DB-9) ports |
| Performance | |
| Control display unit | No |
| Product colour | Black |
| International Protection (IP) code | IP30 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Security | |
| MAC address filtering | Yes |
| Ports & interfaces | |
| Interface | 4 x Serial (DB-9) ports |
| RS-232 ports | 4 |
| Serial interface type | RS-232/422/485 |
| Power | |
| Input voltage | 48 V |
| Power consumption (max) | 3.84 W |
| Weight & dimensions | |
| Weight | 18.1 oz (512 g) |
| Width | 4.07" (103.5 mm) |
| Height | 1.26" (32 mm) |
| Depth | 3.21" (81.5 mm) |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Interface | 4 x Serial (DB-9) ports |
| Indication | |
| LED indicators | Yes |
| Display | |
| Control display unit | No |
