Gigabit Speeds
Gigabit ports provide high-speed network connections to five devices, and a 10Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Compact Design
With a compact and lightweight metal housing design, this switch is well-suited for desktop installations.
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.

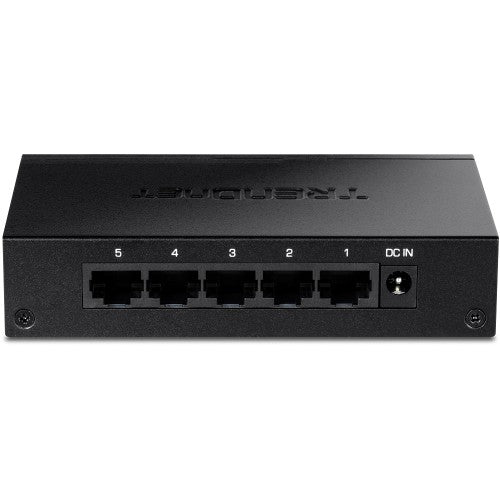

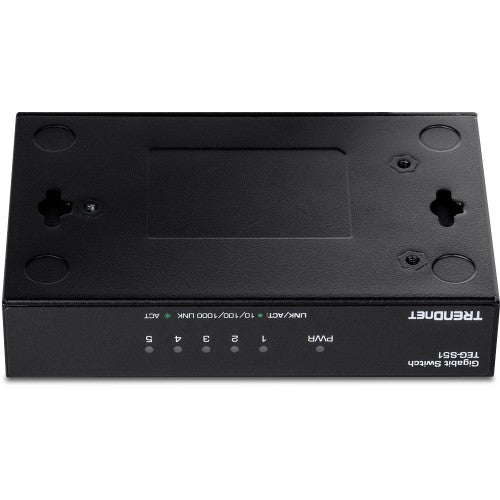

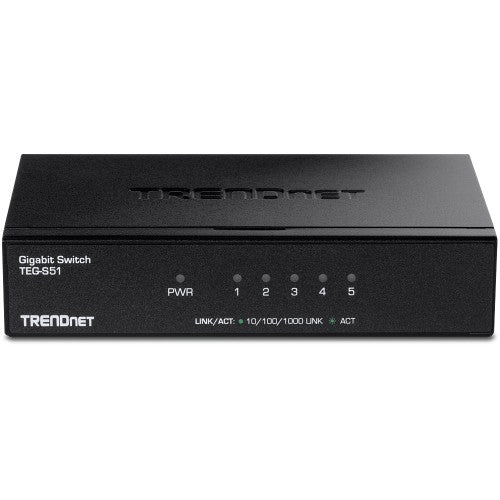

Trendnet TEG-S51 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Part number
TEG-S51
$23.00 CAD
5-Port Gigabit Desktop Switch
Key Features
- Plug and play installation
- 5 x Gigabit ports
- 10Gbps switching capacity
- Sturdy metal switch
- Fanless design
- NDAA / TAA compliant (U.S. and Canada only)
Description
The 5-Port Gigabit Desktop Switch, model TEG-S51, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 10Gbps with full-duplex mode. Integrate this sturdy metal switch for reliable high-speed network connectivity.Gigabit Speeds
Gigabit ports provide high-speed network connections to five devices, and a 10Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Compact Design
With a compact and lightweight metal housing design, this switch is well-suited for desktop installations.
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.125 MB |
| Forwarding rate | 7.44 Mpps |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Certification | FCC CE |
| Performance | |
| Mean time between failures (MTBF) | 1615840 h |
| Fanless | Yes |
| Packet buffer memory | 0.125 MB |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 2.01 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 2.95" (75 mm) |
| Depth | 4.76" (121 mm) |
| Height | 1.02" (26 mm) |
| Weight | 7.76 oz (220 g) |
| Certificates | |
| Certification | FCC CE |
