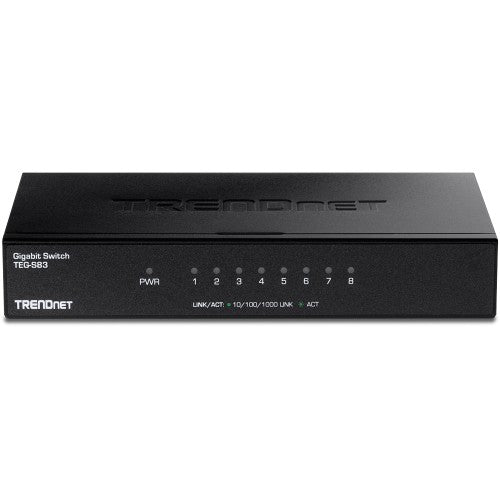

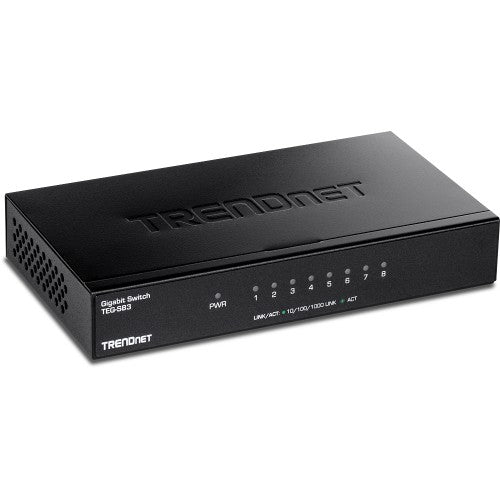

The 8-Port Gigabit Desktop Switch, model TEG-S83, provides high-bandwidth performance, ease of use, and reliability. This gigabit switch boosts office network efficiency and eliminates network congestion. It features gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy metal gigabit switch for reliable high-speed network connectivity.

Gigabit Speeds
Gigabit ports provide high-speed network connections to eight devices, and a 16Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Compact Design
With a compact and lightweight metal housing design, this gigabit switch is well-suited for desktop installations.

Fanless
Fanless design lowers energy consumption, and eliminates distracting noise for quiet environments that require silent operation.

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
10G support	No
Half duplex	Yes
Data transmission
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	0.1875 MB
Forwarding rate	11.9 Mpps
Design
Rack mounting	No
LED indicators	Yes
Certification	FCC CE
Performance
Mean time between failures (MTBF)	1451740 h
Fanless	Yes
Packet buffer memory	0.1875 MB
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	3.2 W
DC input voltage	5 V
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	0.984" (25 mm)
Depth	6.3" (160 mm)
Height	4.29" (109 mm)
Weight	14.6 oz (414 g)
Certificates
Certification	FCC CE
