ATS PDU allows real-time current metering and remote power monitoring to help prevent circuit overloads and ensure proper load balance.

Single-Phase 30A ATS PDU Distributes and Monitors Network-Grade Power in Real Time

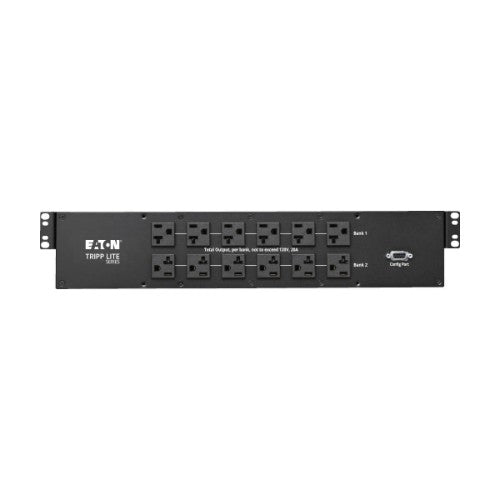

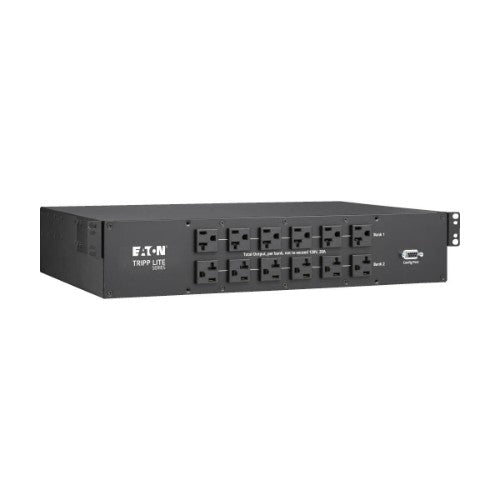

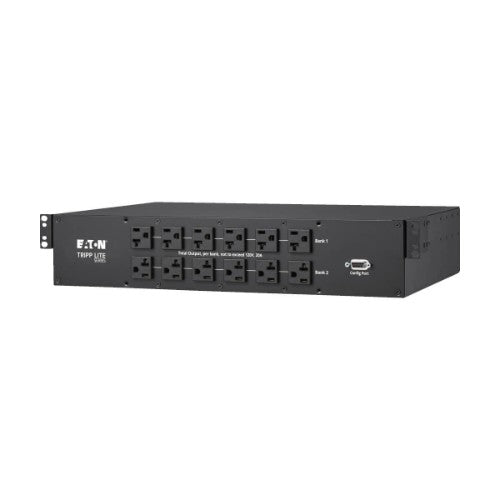

This monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH30AT2 features 24 NEMA 5-15/20R 120V outlets and one NEMA L5-30R outlet, which distribute AC power to rack equipment. Dual 10-foot (3.1-meter) power cords with NEMA L5-30P inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.

Switches from Primary to Secondary Power Source in Milliseconds
Dynamic solid-state automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 1–5 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.

Built-In LX Platform Network Management Card Allows Remote Access 24/7
The HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite’s PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.

Digital LED Display and Load Meter Helps Prevent Potentially Expensive Overloads

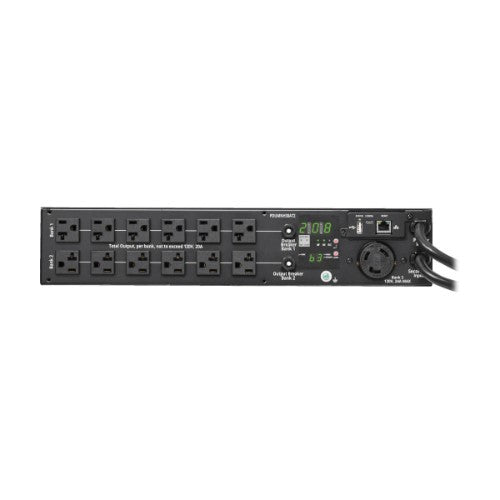

A three-digit LED display shows measured or calculated amperage, kilowatt and voltage values at a glance. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low. Monitoring current provides 1% billing grade accuracy.

Mounts into 2U of Rack Space or on a Wall

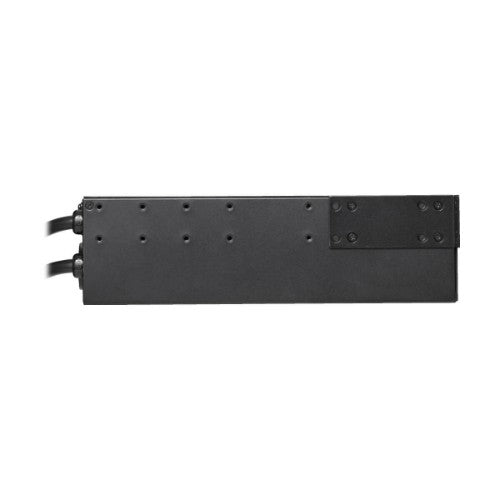

Use the included mounting hardware to install the all-metal housing into 2U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall or under a counter. Included cord retention brackets help organize connected power cords and eliminate cable clutter.

TAA-Compliant for GSA Schedule Purchases
The PDUMNH30AT2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Design
PDU types	Monitored, Switched
Mounting	Horizontal
Type	Single-phase
Display	LCD
Product colour	Black
Rack capacity	2U
Housing material	Metal
Ports & interfaces
Power plug	NEMA L5-30P
AC outlets quantity	25 AC outlet(s)
AC outlet types	NEMA 5–20R, NEMA L5-30R
USB ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
Features
LED indicators	Yes
Cable length	120.1" (3.05 m)
Ergonomics
Display	LCD
LED indicators	Yes
Cable length	120.1" (3.05 m)
Power
Nominal input voltage	120 V
Maximum power	3050 W
Maximum current	30 A
Nominal output voltage	100 - 127 V
AC input frequency	50 - 60 Hz
Circuit breaker	Yes
Weight & dimensions
Weight	13.7 lbs (6.22 kg)
Width	17.3" (439.9 mm)
Depth	11.9" (302 mm)
Height	3.41" (86.6 mm)
Package width	16.6" (421.6 mm)
Package depth	19.9" (505.5 mm)
Package height	7.7" (195.6 mm)
Package weight	18 lbs (8.16 kg)
Packaging data
Package width	16.6" (421.6 mm)
Package depth	19.9" (505.5 mm)
Package height	7.7" (195.6 mm)
Package weight	18 lbs (8.16 kg)
Packaging content
Cables included	USB Type-A to Micro-USB Type-B
Manual	Yes
Rack mount kit	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 393700.8" (0 - 10000 m)
Operating temperature (T-T)	32 - 104 °F
Technical details
Sustainability compliance	Yes
Compliance certificates	Federal Communications Commission (FCC), RoHS
Logistics data
Products per master (outer) case	1 pc(s)
Country of origin	Taiwan
