Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60

DDR5 Support
This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.

PCIe 4.0
This business motherboard is specially designed for 12th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it’s needed.

ASUS Boot Defender
ASUS Boot Defender ensures your PC is secure even before you boot up the OS and offers additional protection beyond the OS environment. On start-up, it verifies the BIOS code to detect attacks or corrupted firmware. It’s designed to automatically protect and repair the compromised BIOS code to safeguard PCs from intrusions and attacks.

Protection
Provide advanced BIOS protection and resiliency through ASUS Defender controller

Detection
Identifies corrupted or tampered BIOS codes at start up

Recovery
Automatically repairs corrupted BIOS with a backup copy of the ASUS BIOS

The ASUS Defender controller uses hardware-based Root-of-Trust (ROT) with immutable and non-bypassable boot firmware to form a chain of trust (COT) with integrity for a secure computing system.
* The system with ASUS Boot Defender will be automatically shut down after BIOS update via ASUS EZ Flash. Please press the power button to turn it on.

ASUS Self-recovering BIOS

With ASUS Self-recovering BIOS
The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.

ASUS RELIANT
Ensures consistent performance with the finest components and rigorous reliability testing

Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.

Anti-sulfur Resistors
Consider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.

Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

24/7 Reliability Test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.

ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!

ASUS SERVICEABILITY
Facilitate the assembly process and enable efficient troubleshooting

Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

ASUS COM Debug Header
This 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card*.
*Third-party debug card sold separately.

Box Headers
All USB headers are box style, enabling fast connector installation and preventing pin damage.

Fixed-position Connectors
Connector positions on ASUS Business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.

Internal I/O
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Audio connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of SATA III connectors	6
Number of COM connectors	2
Number of chassis fan connectors	2
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Performance
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel Q670
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Supported storage drive types	HDD & SSD
Supported processor sockets	LGA 1700
RAID levels	0, 1, 5, 10
Number of HDDs supported	6
Cooling type	Active
Windows operating systems supported	Windows 10, Windows 11
Expansion card interfaces
Audio connector	Yes
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Processor socket	LGA 1700
Maximum internal memory supported by processor	128 GB
Supported processor sockets	LGA 1700
Memory
Supported memory types	DDR5-SDRAM
Memory slots type	DIMM
Number of memory slots	4
Memory channels	Dual-channel
Supported memory clock speeds	4800 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Maximum internal memory	128 GB
ECC сompatibility	Non-ECC
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
RAID levels	0, 1, 5, 10
Number of HDDs supported	6
Number of storage drives supported	8
RAID support	Yes

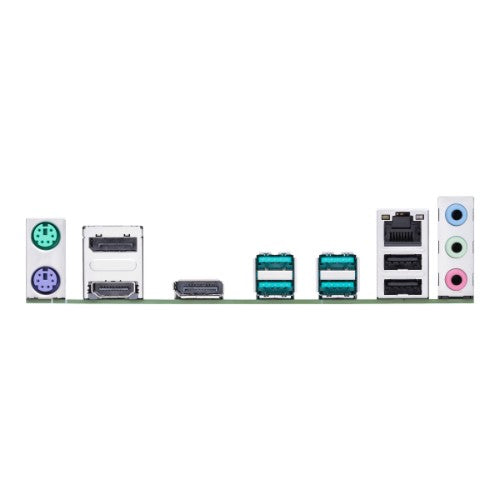

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
VGA (D-Sub) ports quantity	0
PS/2 ports quantity	2
Microphone in	Yes
Headphone outputs	2
HDMI version	2.1
HDMI ports quantity	1
DVI-D ports quantity	0
DisplayPorts quantity	2
DisplayPort version	1.4
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Features
Component for	PC
Motherboard chipset family	Intel
Motherboard chipset	Intel Q670
Motherboard form factor	micro ATX
Audio output channels	7.1 channels
Number of mounting holes	8
Supported processor sockets	LGA 1700
Power source type	ATX
Cooling type	Active
Compatible operating systems	Windows® 11 64-bit, Windows® 10 64-bit
Windows operating systems supported	Windows 10, Windows 11
Harmonized System (HS) code	84733020
Expansion slots
PCI Express x1 (Gen 3.x) slots	2
Number of M.2 (M) slots	2
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS memory size	256 Mbit
Power
Power source type	ATX
Logistics data
Harmonized System (HS) code	84733020
Weight & dimensions
Width	9.61" (244 mm)
Depth	9.61" (244 mm)
Height	2.01" (51 mm)
Weight	22.4 oz (634 g)
Packaging content
Drivers included	Yes
Cables included	SATA
Technical details
Maximum internal memory supported by processor	128 GB
Number of mounting holes	8
Other features
Height	2.01" (51 mm)
Weight	22.4 oz (634 g)
Compatible operating systems	Windows® 11 64-bit, Windows® 10 64-bit
