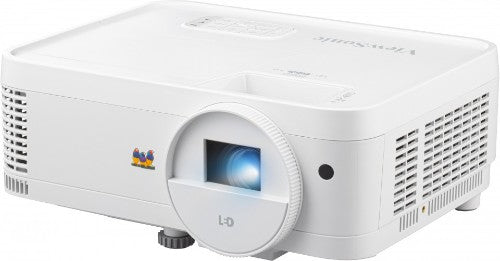

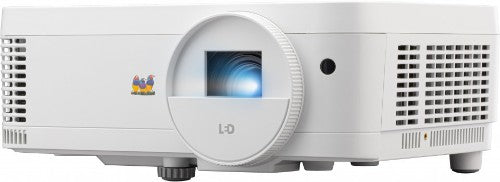

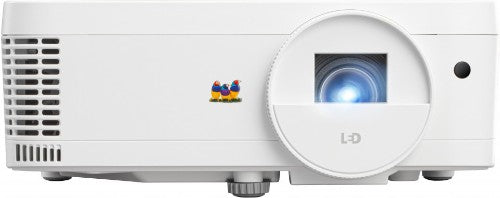

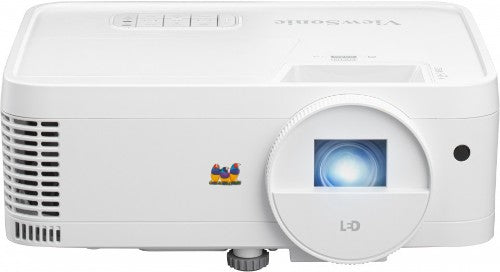

The LS500WH is ViewSonic’s first lamp-free, 2,000 ANSI Lumens high brightness WXGA projector for business and education. Adopting industry-leading 3rd generation LED technology, it frees users from frequent lamp replacement and toxic mercury for a safer and greener environment, offering phenomenal lifespan of 30,000 hours, less power consumption, and true-to-life colors with 125% Rec.709. Give light to your presentations effortlessly with efficient instant power on/off and 360° tilt angle projection for flexible setup in small-to- medium sized meeting rooms/classrooms.

Advanced 3rd Generation LED Technology
The latest 3rd generation LED technology eliminates toxic mercury and the cost and effort of frequent lamp replacement, offering consistently impressive brightness for up to 30,000 hours.
Lamp Free, Mercury Free, Maintenance Free

Enhanced Brightness for Business/Education Environments
With the latest LED technology, the LS500WH achieves a major brightness breakthrough to 2,000 ANSI Lumens, ensuring bright and detailed images in dim or lit environments.
2,000 ANSI Lumens

Higher Power Efficiency
Adopting ams OSRAM’s Ostar Projection Power LED technology, the LS500WH saves nearly 50% more energy than competing lamp-based projectors.
Energy-Saving

Cinema SuperColor+™ Technology
Impress any audience with ViewSonic’s exclusive Cinema SuperColor+™ Technology, covering 125% Rec.709 wide color gamut for a rich, true-to-life color experience.

Efficient Instant Power On/Off
Eliminate waiting times before and after use with instant power on/off capability, delivering immediate full brightness for timely starts with no cooling period required.

360° Projection for Versatile Application
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.

USB Type A Power Supply
The built-in 5V/2A USB output conveniently delivers power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming multimedia content.

Sealed Optical Engine with IP5X
Maintain crystal-clear image quality and product longevity with an advanced sealed optical engine that prevents dust from entering and affecting the thermal system.
IP5X

Projector
Projector brightness	2000 ANSI lumens
Projector native resolution	WXGA (1280x800)
Screen size compatibility	30 - 300"
Contrast ratio (typical)	3000000:1
Number of colours	1.07 billion colors
Vertical scan range	23 - 120 Hz
Horizontal scan range	15 - 102 kHz
Keystone correction, vertical	-40 - 40°
Light source
Light source type	LED
Service life of light source	30000 h
Lens system
Zoom ratio	1.1:1
Zoom capability	Yes
Focus	Auto
Focal length range	22 - 24.1 mm
Aperture range (F-F)	2.56 - 2.68
Throw ratio	1.55 - 1.70
Offset	100%
Video
Analog signal format system	NTSC, PAL, SECAM
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 512, 640 x 640, 640 x 160, 640 x 352, 640 x 360, 640 x 400, 640 x 480 (VGA), 640 x 544, 640 x 576, 640 x 960, 704 x 288, 704 x 480, 704 x 576, 720 x 350, 720 x 400, 720 x 480, 720 x 576, 720 x 720, 752 x 582, 768 x 432, 768 x 448, 768 x 494, 768 x 576, 800 x 448, 800 x 450, 800 x 480 (WVGA), 800 x 500, 800 x 592, 800 x 600 (SVGA), 832 x 624, 832 x 642, 848 x 480, 854 x 480 (WVGA), 900 x 720, 960 x 960, 960 x 480, 960 x 540, 960 x 576, 960 x 720, 1024 x 576 (WSVGA), 1024 x 600, 1024 x 640, 1024 x 768 (XGA), 1024 x 800, 1032 x 452, 1056 x 144, 1080 x 1080, 1152 x 864 (XGA+), 1152 x 870, 1200 x 1600, 1200 x 1920, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 768, 1280 x 800 (WXGA), 1280 x 800, 1280 x 960, 1280 x 1280, 1284 x 560, 1296 x 732, 1360 x 768 (WXGA), 1366 x 480, 1366 x 760, 1366 x 768, 1366 x 768, 1368 x 768, 1376 x 768, 1400 x 1050 (SXGA+), 1400 x 1080, 1400 x 900, 1440 x 1050, 1440 x 1080, 1440 x 234, 1440 x 900 (WXGA+), 1440 x 900, 1440 x 912, 1536 X 6144, 1536 x 2048, 1536 x 1536, 1600 x 1200 (UXGA), 1600 x 1280, 1600 x 600, 1600 x 900, 1600 x 904, 1680 x 1050 (WSXGA+), 1680 x 1056, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 502

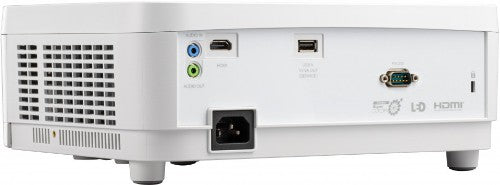

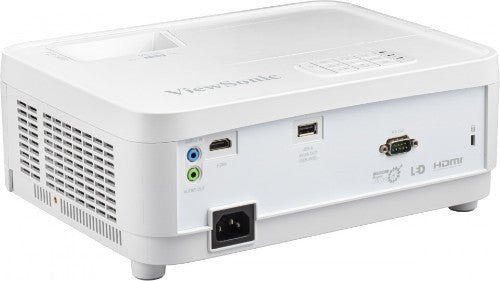

Ports & interfaces
HDMI ports quantity	1
USB 2.0 ports quantity	1
Audio (L/R) in	1
Audio (L/R) out	1
Serial interface type	RS-232
HDMI version	1.4
Features
HDCP	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Noise level	30 dB
Noise level (economic mode)	26 dB
Number of OSD languages	24
Multimedia
Built-in speaker(s)	Yes
RMS rated power	2 W
Design
Market positioning	Business
Product colour	White
Product type	Standard throw projector
Power
Power source	AC
Power consumption (typical)	156 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Supplier features
Harmonized System (HS) code	85286200
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	11.5" (293 mm)
Depth	8.7" (221 mm)
Height	4.53" (115 mm)
Weight	5.4 lbs (2.45 kg)
Packaging content
Remote control included	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	85286200
