Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s unmanaged gigabit PoE+ switches by delivering up to 30W per port of PoE+ power and data over existing Ethernet cables. Easily network PoE devices, such as high-power wireless access points, PTZ cameras, digital signage, IPTV decoders, and access controls with these reliable gigabit PoE+ switches with SFP support.
Gigabit Ports
Gigabit ports feature a full switching capacity on this rackmount PoE+ switch, with SFP slots for long-distance fiber applications.
Hardware Design
With a sturdy metal housing and rackmount brackets included, this switch is well-suited for 19” 1U rack installations.
PoE Power
A 240W total PoE power budget supports 16 PoE+ devices with up to 30W per port.

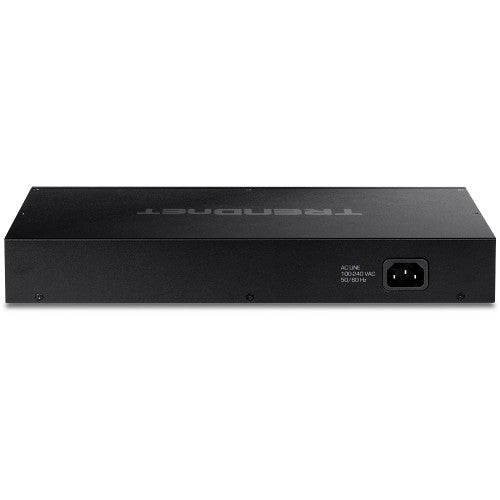

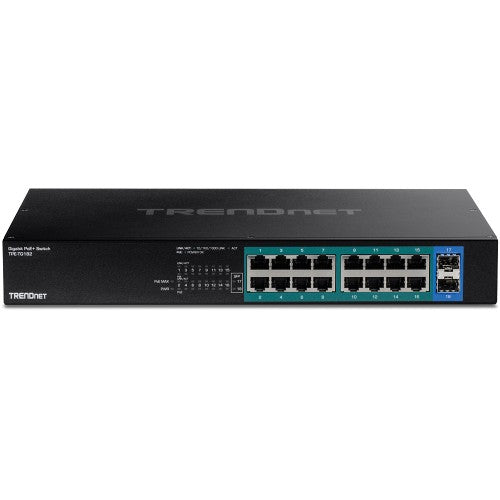

Trendnet TPE-TG182 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Part number
TPE-TG182
$365.37 CAD
18-Port Gigabit PoE+ Switch, 2x SFP, 1U
Key Features
- 16 x Gigabit PoE+ ports (up to 30W per port)
- 2 x Gigabit SFP Slots
- 240W PoE power budget
- 36Gbps switching capacity
- Internal power supply
- Sturdy 1U 19” rack-mountable metal housing
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s Unmanaged Gigabit PoE+ Switches provide high-bandwidth performance, ease of use, and reliability. These IEEE 802.3at compliant switches conveniently feature a sturdy 1U 19” rack-mountable metal housing with mounting brackets included. These gigabit PoE+ switches with SFP slots also support long-distance fiber network applications.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s unmanaged gigabit PoE+ switches by delivering up to 30W per port of PoE+ power and data over existing Ethernet cables. Easily network PoE devices, such as high-power wireless access points, PTZ cameras, digital signage, IPTV decoders, and access controls with these reliable gigabit PoE+ switches with SFP support.
Gigabit Ports
Gigabit ports feature a full switching capacity on this rackmount PoE+ switch, with SFP slots for long-distance fiber applications.
Hardware Design
With a sturdy metal housing and rackmount brackets included, this switch is well-suited for 19” 1U rack installations.
PoE Power
A 240W total PoE power budget supports 16 PoE+ devices with up to 30W per port.
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.5 MB |
| Forwarding rate | 23.8 Mpps |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Form factor | 1U |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
| Certification | NDAA / TAA, CE, FCC, ETL |
| Performance | |
| Noise level | 26 dB |
| Mean time between failures (MTBF) | 659157 h |
| Packet buffer memory | 0.5 MB |
| Power | |
| Power protection features | Over current, Short circuit |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 40 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power protection features | Over current, Short circuit |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 12.8" (324 mm) |
| Depth | 9.06" (230 mm) |
| Height | 1.73" (44 mm) |
| Weight | 5.51 lbs (2.5 kg) |
| Packaging content | |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | AC |
| Certificates | |
| Certification | NDAA / TAA, CE, FCC, ETL |
| Packaging data | |
| Rack mount kit | Yes |
| Manual | Yes |
| Cables included | AC |
