The PDU44001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44001 is protected by a three-year limited warranty.

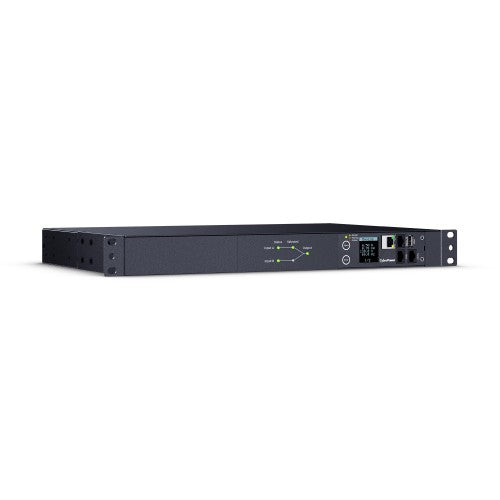

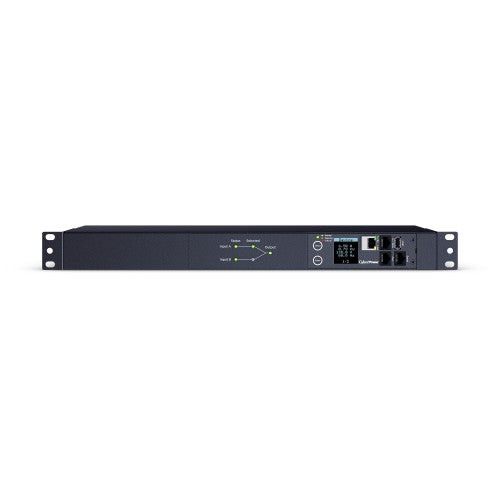

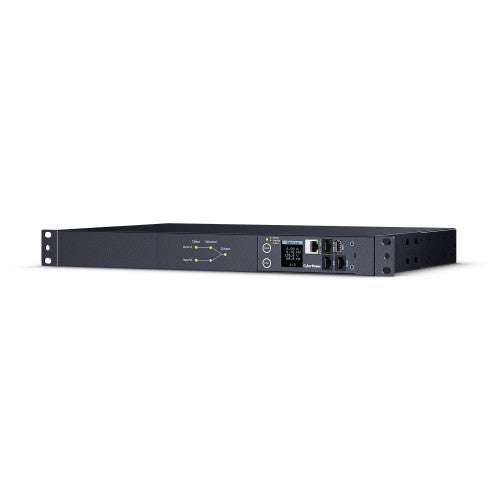

CyberPower PDU44001 power distribution unit (PDU) 12 AC outlet(s) 1U Black
Part number
PDU44001
Regular price
$1,060.34 CAD
Sale price
$892.80 CAD
15A, 100-120V, 50/60Hz, 2 x NEMA 5-15P, 10 x NEMA 5-15R
Description
Ensure continued operation of critical devices with the CyberPower PDU44001 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.The PDU44001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44001 is protected by a three-year limited warranty.
Specifications
| Design | |
|---|---|
| PDU types | Metered, Switched |
| Type | Single-phase |
| Display | LCD |
| Product colour | Black |
| Certification | UL62368,FCC Class A,cTUVus |
| Rack capacity | 1U |
| Housing material | Metal |
| Ports & interfaces | |
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | NEMA 5–15P, NEMA 5–15R |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Features | |
| Cable length | 118.1" (3 m) |
| Certification | UL62368,FCC Class A,cTUVus |
| Management features | |
| Management protocols | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD |
| Firmware upgradeable | Yes |
| Monitoring | Current, Power, Voltage |
| Ergonomics | |
| Display | LCD |
| Cable length | 118.1" (3 m) |
| Power | |
| Nominal input voltage | 100 - 120 V |
| Maximum current | 15 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Weight | 10 lbs (4.54 kg) |
| Width | 17" (433 mm) |
| Depth | 8.46" (215 mm) |
| Height | 1.73" (44 mm) |
| Package width | 21.6" (549.9 mm) |
| Package depth | 15.7" (398 mm) |
| Package height | 4.9" (124.5 mm) |
| Package weight | 13.3 lbs (6.03 kg) |
| Packaging data | |
| Package width | 21.6" (549.9 mm) |
| Package depth | 15.7" (398 mm) |
| Package height | 4.9" (124.5 mm) |
| Package weight | 13.3 lbs (6.03 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -15 - 55 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 590511.8" (0 - 14999 m) |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
