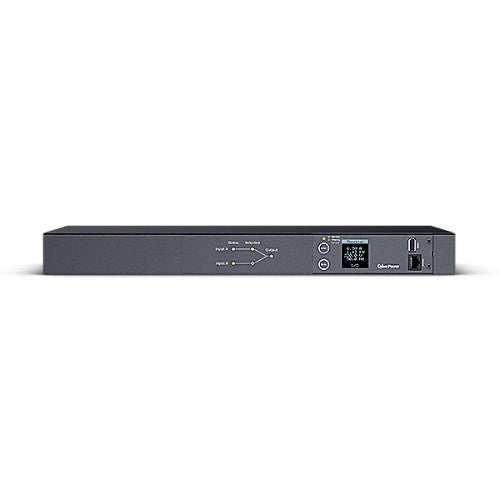

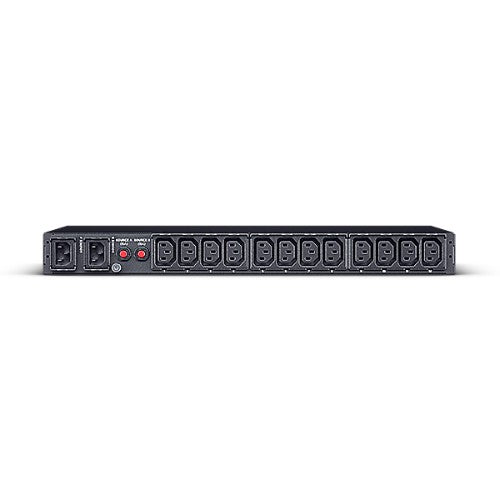

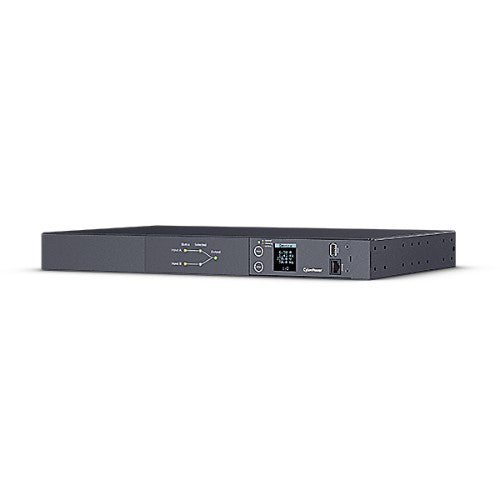

CyberPower PDU24004 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation.

The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.

Design
PDU types	Managed, Switched
Mounting	Horizontal
On/off switch	Yes
Type	Single-phase
Display	LCD
Product colour	Black
Certification	CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368
Form factor	Rackmount
Rack capacity	1U
Housing material	Steel
Ports & interfaces
Power plug	IEC 60320
AC outlets quantity	12 AC outlet(s)
AC outlet types	C13 coupler
USB ports quantity	1
Ethernet LAN (RJ-45) ports	1
Features
LED indicators	Yes
Cable length	120.1" (3.05 m)
Certification	CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368
Daisy chain	Yes
Management features
Monitoring	Current, Power, Voltage
Ergonomics
Display	LCD
LED indicators	Yes
Cable length	120.1" (3.05 m)
Power
Nominal input voltage	200 - 240 V
Maximum current	12 A
AC input frequency	50 - 60 Hz
Certificates
Certification	CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368
Compliance certificates	CE, RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-15 - 55 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 590551.2" (0 - 15000 m)
Weight & dimensions
Weight	7.72 lbs (3.5 kg)
Width	17" (433 mm)
Depth	8.46" (215 mm)
Height	1.73" (44 mm)
Package width	21.7" (550 mm)
Package depth	15.7" (398 mm)
Package height	4.92" (125 mm)
Package weight	12.6 lbs (5.7 kg)
Packaging data
Package width	21.7" (550 mm)
Package depth	15.7" (398 mm)
Package height	4.92" (125 mm)
Package weight	12.6 lbs (5.7 kg)
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Logistics data
Country of origin	China
