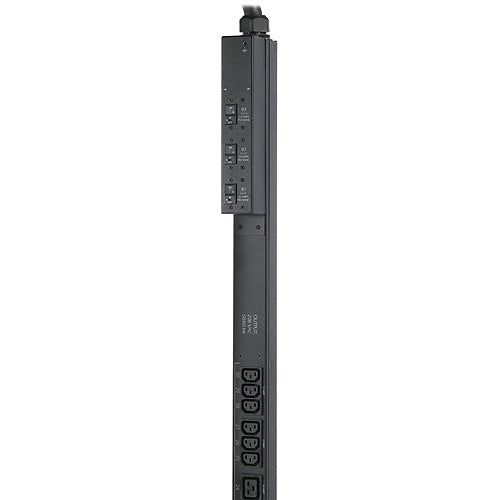

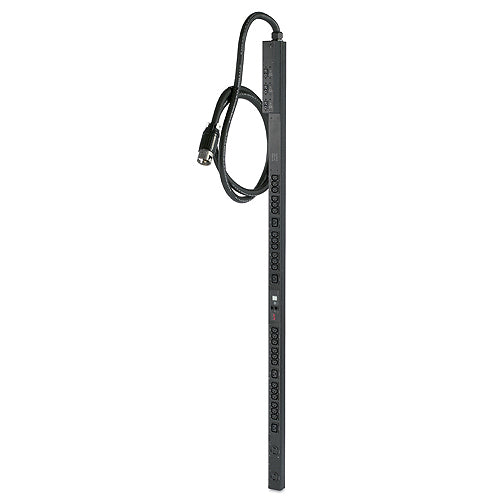

APC AP7899B power distribution unit (PDU) 30 AC outlet(s) 0U Black
2,551.19 CAD
Skip to product information
Out of stock
APC AP7899B power distribution unit (PDU) 30 AC outlet(s) 0U Black
Part number
AP7899B
2,551.19 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
14.1 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Vertical |
| Type | Three-phase |
| Product colour | Black |
| Certification | REACH |
| Rack capacity | 0U |
| Ports & interfaces | |
| Power plug | CS8365 |
| AC outlets quantity | 30 AC outlet(s) |
| AC outlet types | NEMA L6-30R, C13 coupler, C19 coupler |
| Features | |
| LED indicators | Yes |
| Cable length | 120.1" (3.05 m) |
| Certification | REACH |
| Ergonomics | |
| LED indicators | Yes |
| Cable length | 120.1" (3.05 m) |
| Power | |
| Nominal input voltage | 208 V |
| Maximum current | 50 A |
| Load capacity | 14400 VA |
| Maximum total current draw per phase | 40 A |
| Power protection features | Overload |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.2 x 3.74 x 70" (56 x 95 x 1778 mm) |
| Weight | 22.9 lbs (10.4 kg) |
| Width | 2.2" (56 mm) |
| Depth | 3.74" (95 mm) |
| Height | 70" (1778 mm) |
| Package width | 12.2" (311 mm) |
| Package depth | 3.11" (79 mm) |
| Package height | 81" (2057 mm) |
| Package weight | 31.5 lbs (14.3 kg) |
| Package dimensions (WxDxH) | 12.2 x 3.11 x 81" (311 x 79 x 2057 mm) |
| Packaging data | |
| Package width | 12.2" (311 mm) |
| Package depth | 3.11" (79 mm) |
| Package height | 81" (2057 mm) |
| Package weight | 31.5 lbs (14.3 kg) |
| Package dimensions (WxDxH) | 12.2 x 3.11 x 81" (311 x 79 x 2057 mm) |
| Packaging content | |
| Cables included | RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Operating temperature (T-T) | 23 - 113 °F |
| Technical details | |
| Compliance certificates | RoHS |
