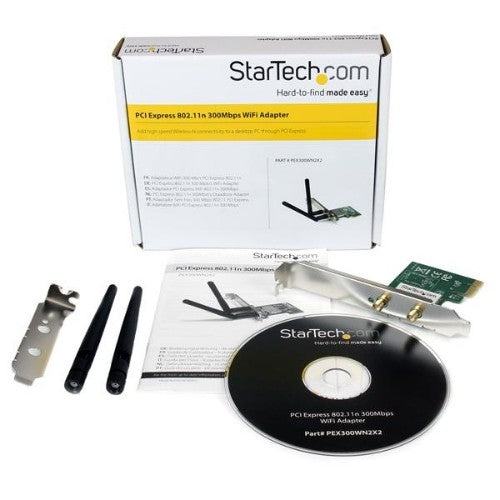

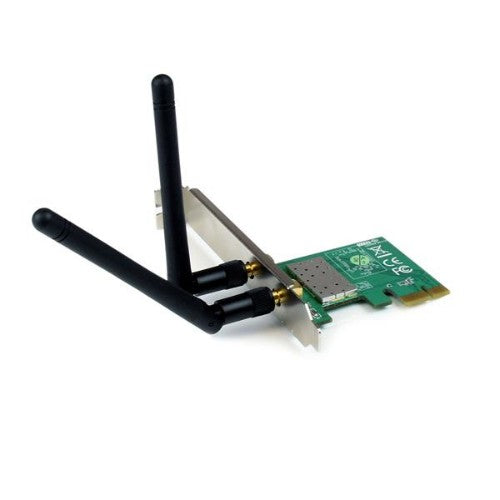

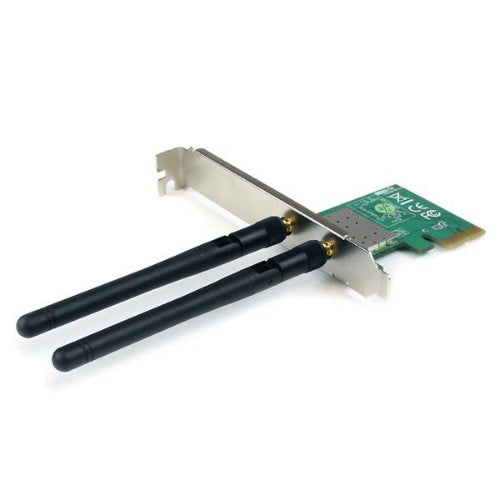

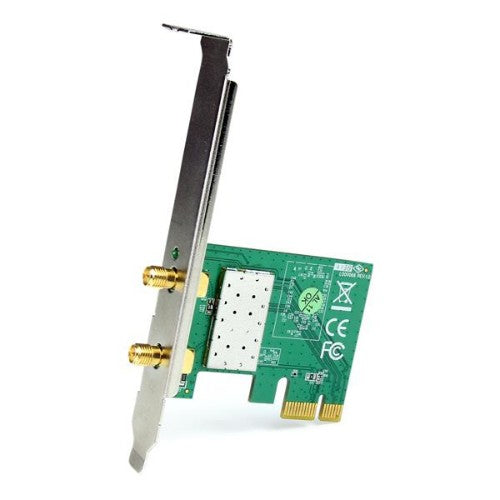

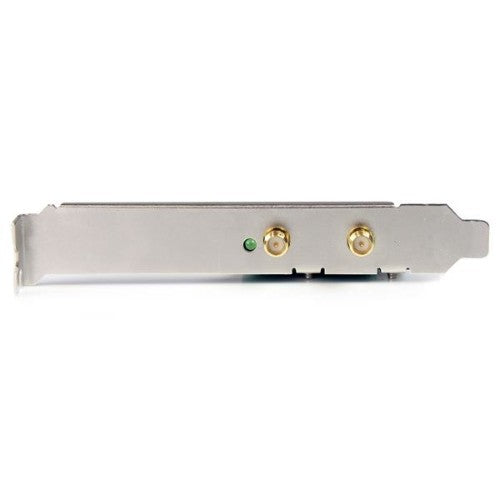

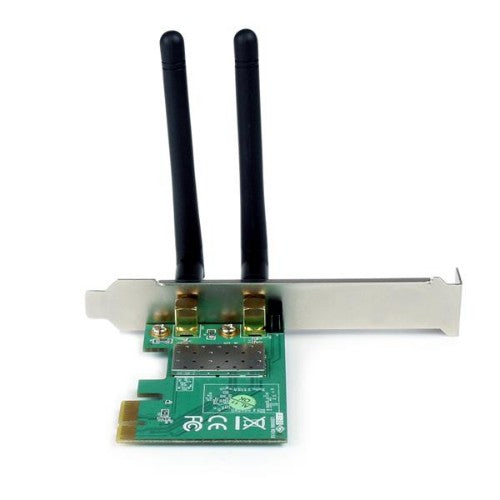

StarTech.com PEX300WN2X2 network card Internal WLAN 300 Mbit/s

StarTech.com PEX300WN2X2 network card Internal WLAN 300 Mbit/s

41.04 CAD

Skip to product information
StarTech.com PEX300WN2X2 network card Internal WLAN 300 Mbit/s
1/7

StarTech.com PEX300WN2X2 network card Internal WLAN 300 Mbit/s

Part number PEX300WN2X2
41.04 CAD
Taxes and shipping calculated at checkout.
In stock

Enjoy Free Shipping on orders over 2000 CAD

Shipping time varies based your on location.

Specifications
Weight
0.158 kg
Shipping + Returns

Shipping Policy

Ships to: Canada & USA via UPS, DHL, & Canada Post.

Fast Dispatch: Orders before 2 PM EST process same-day.

Options: Standard (Ground) and Express (Air) shipping available.

Heavy Items: Heavy freight usually requires1-2 extra days for Processing

Returns & Refunds

Return Period: Request a return within 14 days of delivery.

Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.

Condition: Items must be returned in original packaging (New or Like New).

Final Sale: Software, licenses, and special orders cannot be returned.

The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range.

Backward compatible with 802.11b/g networks (11/54Mbps), this WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS.

This easy-to-install PCI Express 2.0 card is backed by StarTech.com's 2-year warranty and free lifetime technical support, making for an excellent wireless upgrade or first-time setup option.

The StarTech.com Advantage
- PCI Express 2.0 and 802.11n compliance ensure a fast, reliable wireless-N network connection, while still being able to connect to older wireless b/g networks
- Support for the latest wireless network security protocols and QoS, ensures a safe and efficient network experience
- Includes both a full and low profile/half-height bracket for installation into any sized desktop computer
Ports & interfaces
Internal Yes
Connectivity technology Wireless
Host interface PCI Express
Interface WLAN
Bandwidth
Maximum data transfer rate 300 Mbit/s
Bandwidth note 20/40 MHz
Full duplex Yes
Wireless LAN features
Wi-Fi Yes
Wi-Fi band Single-band (2.4 GHz)
Top Wi-Fi standard Wi-Fi 4 (802.11n)
Wi-Fi standards Wi-Fi 4 (802.11n)
WLAN data transfer rates supported 300 Mbit/s
Network
Chipset Ralink - RT5392
Maximum data transfer rate 300 Mbit/s
Wi-Fi Yes
Wi-Fi band Single-band (2.4 GHz)
Networking standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Top Wi-Fi standard Wi-Fi 4 (802.11n)
Modulation CCK, DBPSK, DQPSK, DSSS, OFDM
Wi-Fi standards Wi-Fi 4 (802.11n)
WLAN data transfer rates supported 300 Mbit/s
Supported network protocols CSMA/CA
Security algorithms AES, TKIP, WEP, WPA, WPA2-PSK
Full duplex Yes
Frequency range 2.4 - 2.484 GHz
Gain 2.2 dBi
Antenna
Antenna Yes
Antennas quantity 2
Gain 2.2 dBi
Frequency range 2.4 - 2.484 GHz
Antenna connector type RP-SMA
Design
Internal Yes
Chipset Ralink - RT5392
Antenna Yes
Certification CE, FCC, REACH, TAA
LED indicators Activity, Link
Antenna connector type RP-SMA
Antenna design External
Antennas quantity 2
System requirements
Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported Yes
Linux operating systems supported Yes
Server operating systems supported Windows Server 2003, Windows Server 2008 R2
Operational conditions
Operating temperature (T-T) -10 - 70 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 1.93" (49 mm)
Depth 2.95" (75 mm)
Height 0.709" (18 mm)
Weight 1.34 oz (38 g)
Package width 5.51" (140 mm)
Package depth 6.5" (165 mm)
Package height 1.38" (35 mm)
Package weight 5.57 oz (158 g)
Protocols
Supported network protocols CSMA/CA
Packaging data
Low-profile bracket Yes
Drivers included Yes
Package width 5.51" (140 mm)
Package depth 6.5" (165 mm)
Package height 1.38" (35 mm)
Package weight 5.57 oz (158 g)
Mounting brackets included Yes
Manual Yes
Quantity per pack 1 pc(s)
Packaging content
Mounting brackets included Yes
Manual Yes
Low-profile bracket Yes
Drivers included Yes
Performance
Security algorithms AES, TKIP, WEP, WPA, WPA2-PSK
Channel bandwidth 40 MHz
Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported Yes
Linux operating systems supported Yes
Server operating systems supported Windows Server 2003, Windows Server 2008 R2
Technical details
Quantity per pack 1 pc(s)
Compliance certificates RoHS
Certificates
Certification CE, FCC, REACH, TAA
Other features
Chipset Ralink - RT5392
Manual Yes
Antennas quantity 2
Bandwidth note 20/40 MHz
Gain 2.2 dBi
Channel bandwidth 40 MHz
Quantity per pack 1 pc(s)
