Tripp Lite PDUV15 power distribution unit (PDU) 14 AC outlet(s) 0U Black
220.40 CAD
Skip to product information
2 left
Tripp Lite PDUV15 power distribution unit (PDU) 14 AC outlet(s) 0U Black
Part number
PDUV15
Sale price
220.40 CAD
Regular price
281.47 CAD
Taxes and shipping calculated at checkout.
Save
61.07 CAD
Off
22%
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.68 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 15A single phase 120V Basic Power Distribution Unit / PDU (Agency de-rated to 12A continuous)

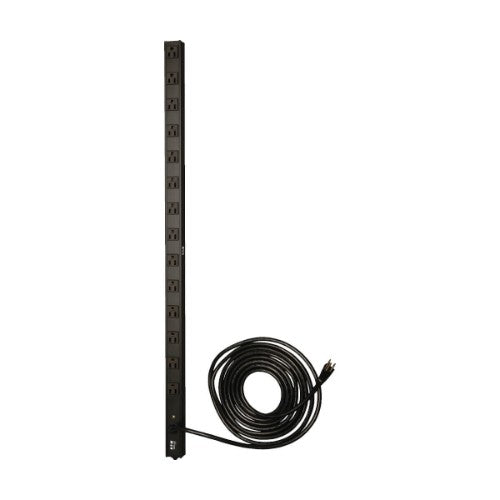

- 0U 36in / 91.4cm vertical rackmount format PDU installs using no rack spaces
- 14 NEMA 5-15R outlets

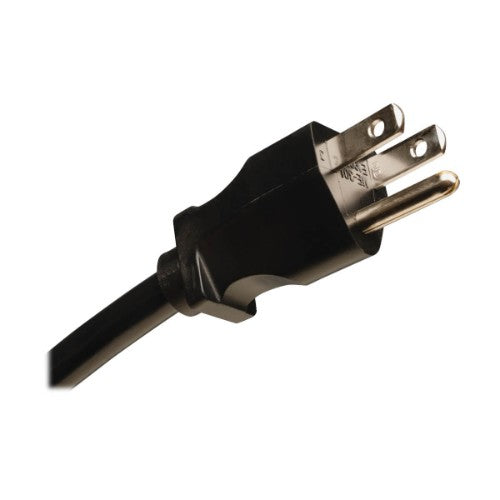

- Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
- 15A resettable circuit breaker
- Switch-free design prevents accidental shutoff
- Toolless mounting buttons enable simple installation in compatible equipment racks
- Rear facing installation buttons can be relocated to the left or right surface of the PDU for rear, center or forward-facing outlet orientation in compatible racks

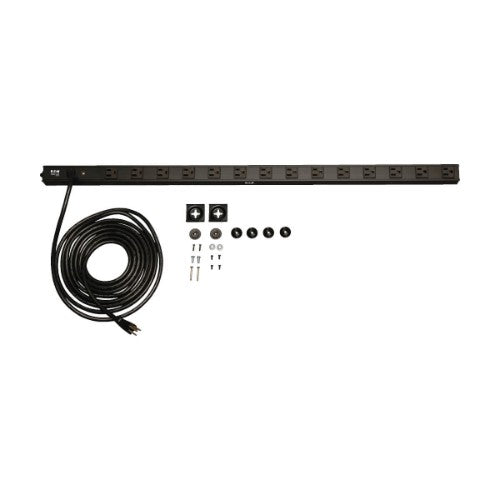

- Included nut and bolt mounting brackets support installation in non button-mount compatible racks, wallmount and raceway applications
- 15A single phase 120V Basic Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
- 0U 36in / 91.4cm vertical rackmount format PDU installs using no rack spaces
- 14 NEMA 5-15R outlets
- Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
- 15A resettable circuit breaker
- Switch-free design prevents accidental shutoff
- Toolless mounting buttons enable simple installation in compatible equipment racks
- Rear facing installation buttons can be relocated to the left or right surface of the PDU for rear, center or forward-facing outlet orientation in compatible racks
- Included nut and bolt mounting brackets support installation in non button-mount compatible racks, wallmount and raceway applications
| Design | |
|---|---|
| PDU types | Basic |
| Mounting | Vertical |
| Product colour | Black |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Rack capacity | 0U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | NEMA 5–15P |
| AC outlets quantity | 14 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Features | |
| Cable length | 179.9" (4.57 m) |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Ergonomics | |
| Cable length | 179.9" (4.57 m) |
| Power | |
| Nominal input voltage | 100-127 V |
| Maximum current | 15 A |
| Nominal output voltage | 100-127 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 1.25 x 1.75 x 36" (31.8 x 44.5 x 914.4 mm) |
| Weight | 3.06 lbs (1.39 kg) |
| Width | 1.25" (31.8 mm) |
| Depth | 1.75" (44.5 mm) |
| Height | 36" (914.4 mm) |
| Package width | 3.62" (91.9 mm) |
| Package depth | 2.4" (61 mm) |
| Package height | 39.8" (1009.9 mm) |
| Package weight | 3.99 lbs (1.81 kg) |
| Packaging data | |
| Package width | 3.62" (91.9 mm) |
| Package depth | 2.4" (61 mm) |
| Package height | 39.8" (1009.9 mm) |
| Package weight | 3.99 lbs (1.81 kg) |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332144512 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 11.6" (294.9 mm) |
| Master (outer) case length | 10.8" (275.1 mm) |
| Master (outer) case height | 40.6" (1030 mm) |
| Master (outer) case gross weight | 45.4 lbs (20.6 kg) |
| Products per master (outer) case | 12 pc(s) |
| Country of origin | China |
