Tripp Lite PDUMH15 power distribution unit (PDU) 13 AC outlet(s) 1U Black
Part number
PDUMH15
205.84 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.4 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)

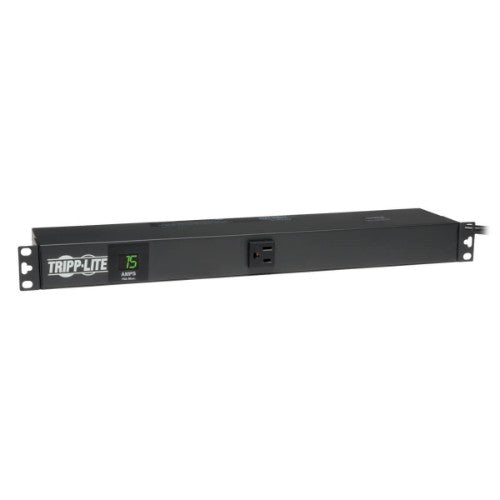

- Built-in 2 digit visual meter continuously reports PDU load level in amps
- Attached NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space

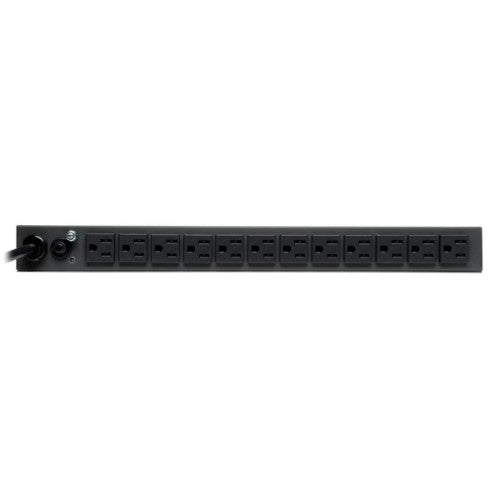

- 13 NEMA 5-15R outlets (1 front facing / 12 rear)
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
- Back panel grounding lug
- 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
- Built-in 2 digit visual meter continuously reports PDU load level in amps
- Attached NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space
- 13 NEMA 5-15R outlets (1 front facing / 12 rear)
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
- Back panel grounding lug
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Horizontal |
| Product colour | Black |
| Certification | UL60950-1/CAN/CSA C22.2 No. 60950-1-03 |
| Rack capacity | 1U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | NEMA 5–15P |
| AC outlets quantity | 13 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Features | |
| Cable length | 179.9" (4.57 m) |
| Certification | UL60950-1/CAN/CSA C22.2 No. 60950-1-03 |
| Ergonomics | |
| Cable length | 179.9" (4.57 m) |
| Power | |
| Nominal input voltage | 100-127 V |
| Maximum current | 15 A |
| Nominal output voltage | 100-127 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 17.5 x 4.5 x 1.75" (444.5 x 114.3 x 44.5 mm) |
| Weight | 4.61 lbs (2.09 kg) |
| Weight (imperial) | 4.5 lbs |
| Width | 17.5" (444.5 mm) |
| Depth | 4.5" (114.3 mm) |
| Height | 1.75" (44.5 mm) |
| Package width | 20.5" (520.7 mm) |
| Package depth | 9.5" (241.3 mm) |
| Package height | 2" (50.8 mm) |
| Package weight | 5.29 lbs (2.4 kg) |
| Packaging data | |
| Package width | 20.5" (520.7 mm) |
| Package depth | 9.5" (241.3 mm) |
| Package height | 2" (50.8 mm) |
| Package weight | 5.29 lbs (2.4 kg) |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332132526 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 14.1" (358.1 mm) |
| Master (outer) case length | 20.7" (525.8 mm) |
| Master (outer) case height | 10.2" (259.1 mm) |
| Master (outer) case gross weight | 32.4 lbs (14.7 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
