StarTech.com USB3SDOCKHD laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-B Black
121.85 CAD
Skip to product information
5 left
StarTech.com USB3SDOCKHD laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-B Black
Part number
USB3SDOCKHD
121.85 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.9 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

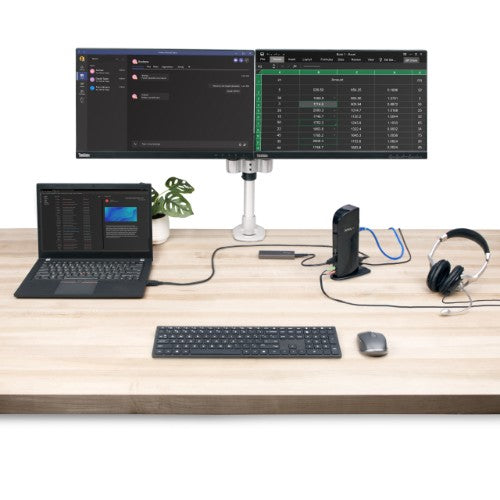

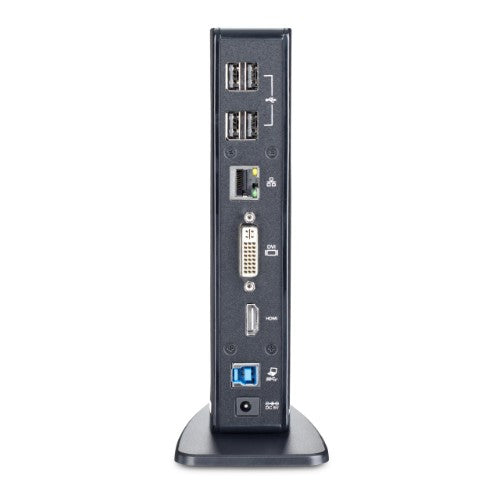

- UNIVERSAL DOCKING STATION: USB 3.0 docking station dual monitor features built-in 1x HDMI and 1x DVI monitor outputs; DVI to VGA adapter included for compatibility with VGA monitors; 1920 x 1200p maximum resolution on two displays
- INCREASED PRODUCTIVITY: This dual monitor universal docking station for laptops combines 4x USB 2.0 ports, 2x USB 3.2 Gen 1 (5Gbps) hub ports, headphone & microphone audio jack, and a Gigabit Ethernet RJ45 port into a single IT-grade dock

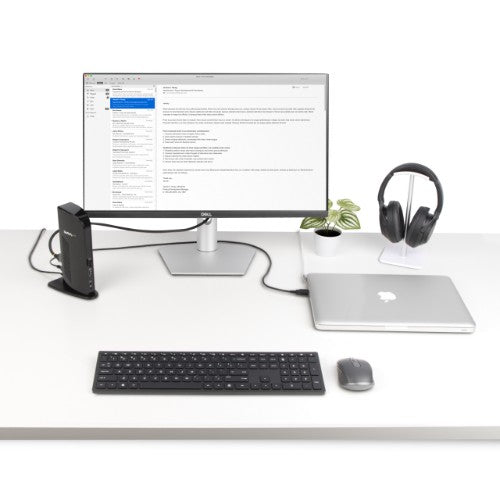

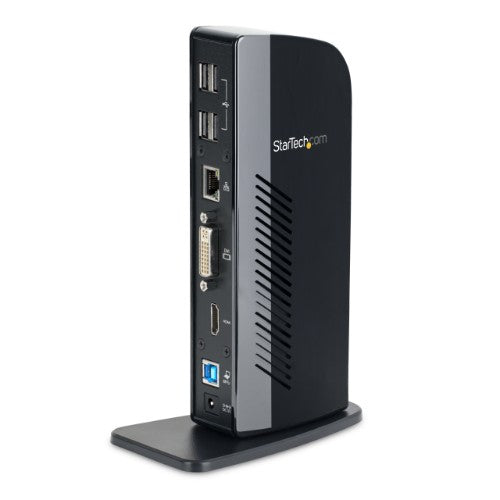

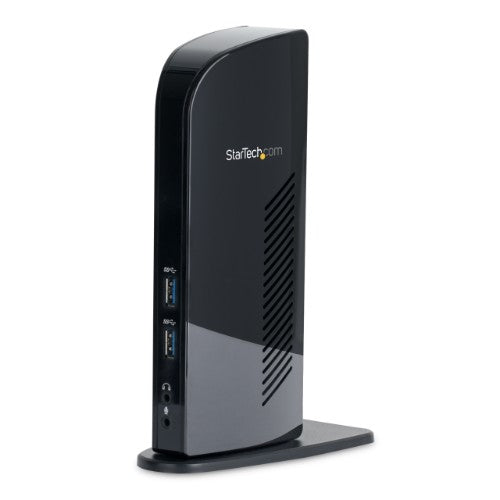

- UPRIGHT DESIGN: The high performance, all black, upright dock features a slim & sleek design that is the perfect addition to any home or office workstation; The dock enhances your laptop's capabilities while taking up little desk space
- UNIVERSAL COMPATIBILITY: Compatible with Windows, macOS, & Chrome OS v55+, enabling extended dual displays on Laptops, Ultrabooks, Chromebooks and MacBooks that feature a USB-A host connection; Supports HDMI, DVI and VGA monitors
- CONNECTIVITY TOOLS: Optimize the performance and security of this USB 3.0 docking station, using the included MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities (available for download)
Maximize your productivity with this Dual Monitor USB-A Docking Station featuring Gigabit Ethernet, USB Hub, and Audio

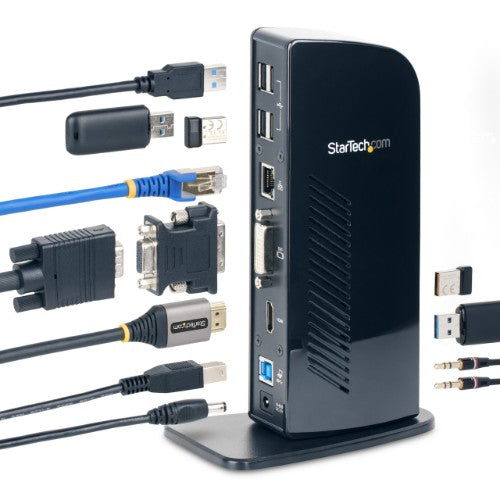

This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub

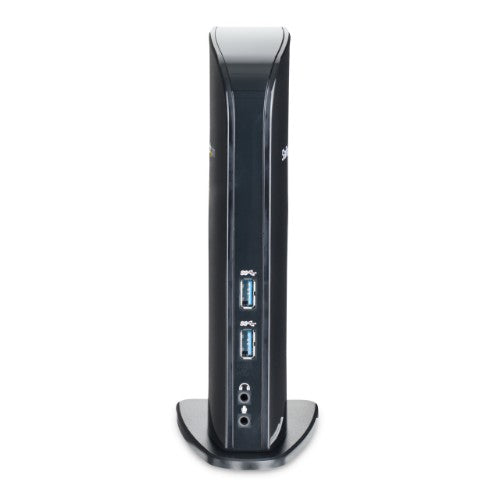

The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile Design
With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub
The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile Design
With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 4 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB connector type | USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DVI-I ports quantity | 1 |
| Number of microphone inputs | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Combo headphone/mic port | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Performance | |
| Product colour | Black |
| Card reader integrated | No |
| Brand compatibility | Any brand |
| Maximum digital resolution | 1920 x 1200 pixels |
| LED indicators | Power, USB |
| Full duplex | Yes |
| Data transfer rate | 5 Gbit/s |
| Auto MDI/MDI-X | Yes |
| Certification | CE, FCC |
| Housing material | Plastic |
| Storage | |
| Card reader integrated | No |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Power consumption (typical) | 20 W |
| Power plug type | Type C |
| Output voltage | 5 V |
| Output current | 4 A |
| Compatible power plug types | AU, EU, JP, UK, US |
| Software | |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Weight & dimensions | |
| Width | 2.76" (70 mm) |
| Depth | 4.92" (125 mm) |
| Height | 7.68" (195 mm) |
| Weight | 13.1 oz (370 g) |
| Package width | 7.48" (190 mm) |
| Package depth | 10.7" (273 mm) |
| Package height | 4.29" (109 mm) |
| Package weight | 31.7 oz (900 g) |
| Design | |
| Product colour | Black |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| LED indicators | Power, USB |
| Certification | CE, FCC |
| Packaging data | |
| Package width | 7.48" (190 mm) |
| Package depth | 10.7" (273 mm) |
| Package height | 4.29" (109 mm) |
| Package weight | 31.7 oz (900 g) |

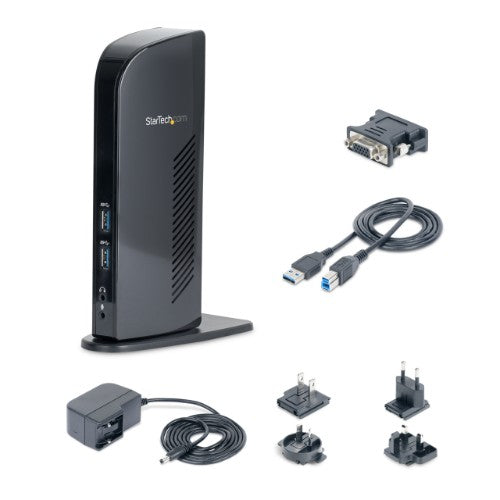

| Packaging content | |
| Manual | Yes |
| Interface adapters included | DVI-I male - VGA female |
| Drivers included | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Technical details | |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 11.8" (300 mm) |
| Master (outer) case length | 15.7" (400 mm) |
| Master (outer) case height | 14.2" (360 mm) |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 11.8" (300 mm) |
| Master (outer) case length | 15.7" (400 mm) |
| Master (outer) case height | 14.2" (360 mm) |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Number of microphone inputs | 1 |
| Minimum system requirements | CPU: i3 Dual core 2.8GHz + RAM: 2GB + |
| Chipset | DisplayLink - DL-3900, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E |
