Tripp Lite PDUMV15 power distribution unit (PDU) 16 AC outlet(s) 0U White
233.19 CAD
Skip to product information
Out of stock
Tripp Lite PDUMV15 power distribution unit (PDU) 16 AC outlet(s) 0U White
Part number
PDUMV15
233.19 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
2.071 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

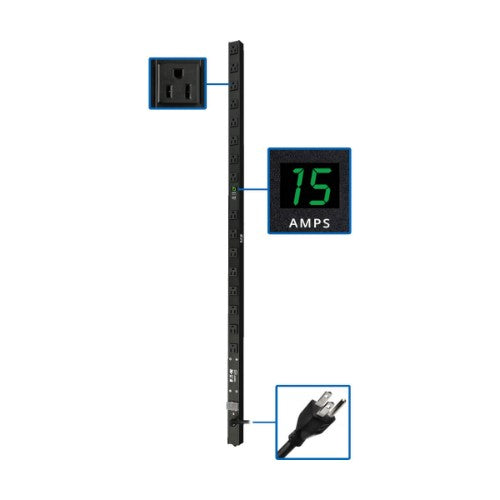

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)

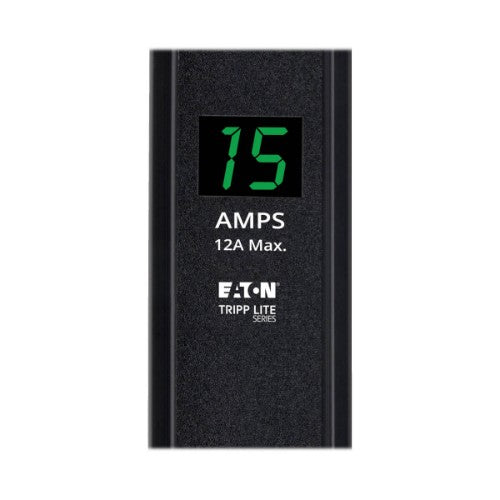

- Two-digit lighted meter reports combined total output current in amps

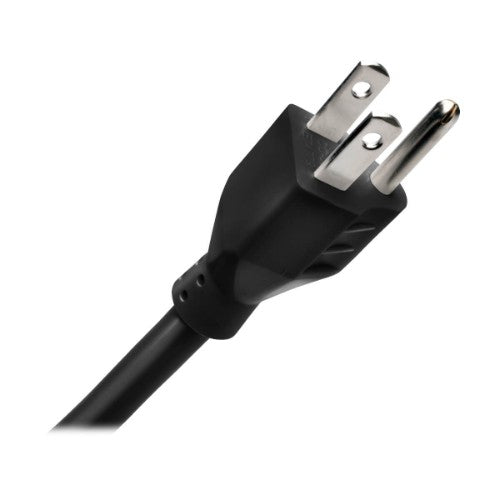

- Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
- 0U 48in / 122cm vertical rackmount format installs using no rack spaces

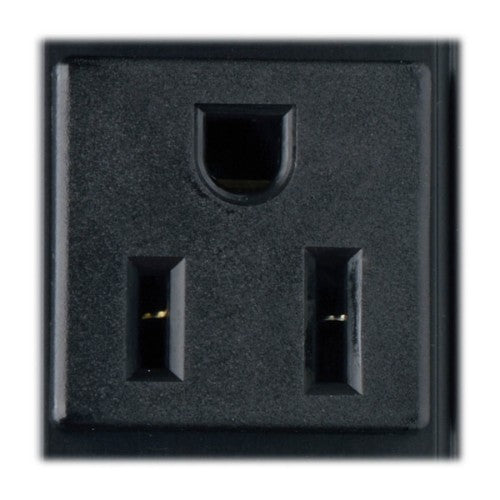

- 16 NEMA 5-15R outlets
- Includes 15A circuit breaker and lighted power switch inside a transparent protective cover

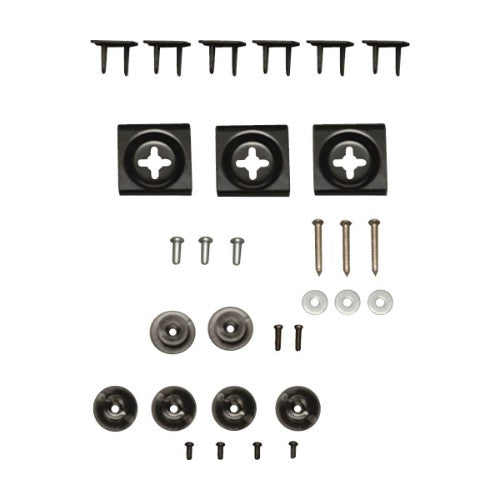

- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
- 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
- Two-digit lighted meter reports combined total output current in amps
- Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
- 0U 48in / 122cm vertical rackmount format installs using no rack spaces
- 16 NEMA 5-15R outlets
- Includes 15A circuit breaker and lighted power switch inside a transparent protective cover
- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Vertical |
| Product colour | White |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Rack capacity | 0U |
| Housing material | Metal |
| Ports & interfaces | |
| Power plug | NEMA 5–15P |
| AC outlets quantity | 16 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Features | |
| Cable length | 181.1" (4.6 m) |
| Certification | UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada) |
| Ergonomics | |
| Cable length | 181.1" (4.6 m) |
| Power | |
| Nominal input voltage | 100-127 V |
| Maximum current | 15 A |
| Nominal output voltage | 100-127 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 48 x 1.5 x 3" (1219.2 x 38.1 x 76.2 mm) |
| Weight | 3.75 lbs (1.7 kg) |
| Weight (imperial) | 3.8 lbs |
| Width | 48" (1219.2 mm) |
| Depth | 1.5" (38.1 mm) |
| Height | 3" (76.2 mm) |
| Package width | 3.43" (87.1 mm) |
| Package depth | 2.4" (61 mm) |
| Package height | 51.8" (1315 mm) |
| Package weight | 4.43 lbs (2.01 kg) |
| Packaging data | |
| Package width | 3.43" (87.1 mm) |
| Package depth | 2.4" (61 mm) |
| Package height | 51.8" (1315 mm) |
| Package weight | 4.43 lbs (2.01 kg) |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332132533 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 7.68" (195.1 mm) |
| Master (outer) case length | 52.6" (1335 mm) |
| Master (outer) case height | 8.46" (214.9 mm) |
| Master (outer) case gross weight | 28.2 lbs (12.8 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
