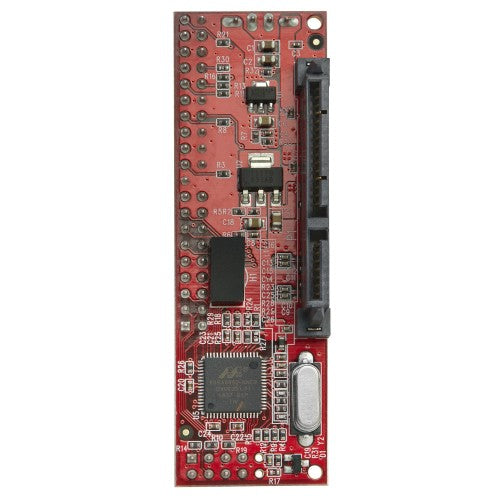

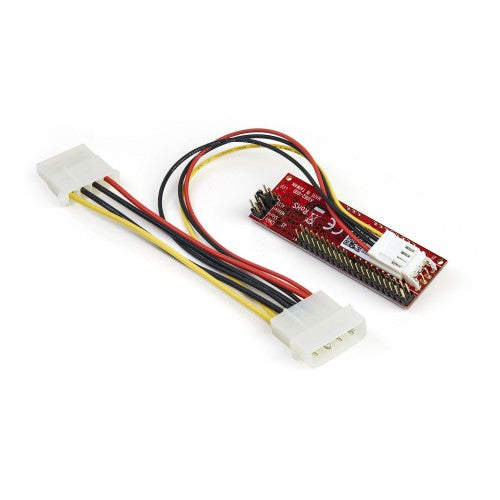

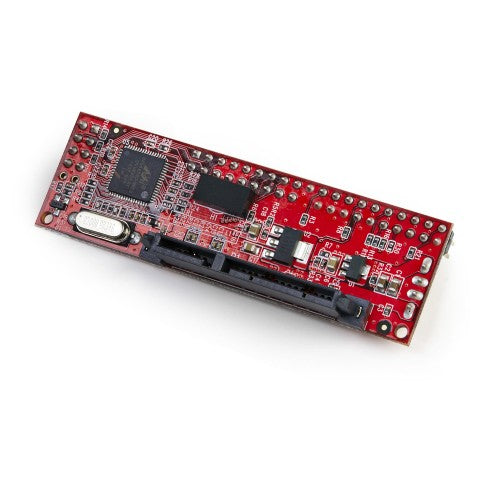

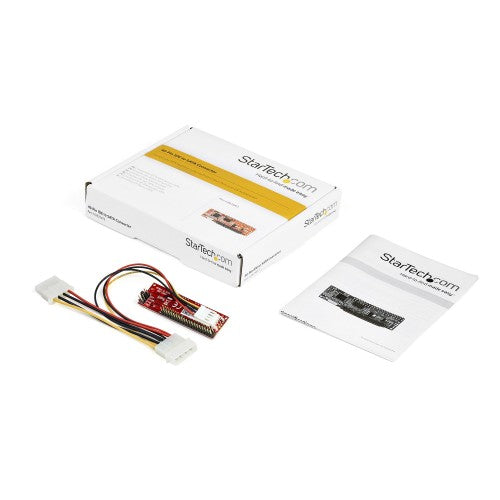

StarTech.com IDE2SAT2 interface cards/adapter Internal SATA
25.03 CAD
Skip to product information
In stock
StarTech.com IDE2SAT2 interface cards/adapter Internal SATA
Part number
IDE2SAT2
25.03 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.089 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Host interface | IDE |
| Output interface | SATA |
| Connector(s) | 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin) |
| Performance | |
| Chipset | Marvell - 88SA8052 |
| Logical block addressing (LBA) support | 48 bit |
| Data transfer rate (max) | 0.133 Gbit/s |
| Product colour | Red |
| Harmonized System (HS) code | 84733020 |
| Design | |
| Internal | Yes |
| Product colour | Red |
| Certification | FCC, CE, TAA, REACH |
| Features | |
| Chipset | Marvell - 88SA8052 |
| Logical block addressing (LBA) support | 48 bit |
| Data transfer rate (max) | 0.133 Gbit/s |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 80 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Technical details | |
| Material | Plastic, Steel |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 0.787" (20 mm) |
| Depth | 2.97" (75.5 mm) |
| Height | 0.906" (23 mm) |
| Weight | 1.02 oz (29 g) |
| Package width | 6.89" (175 mm) |
| Package depth | 5.71" (145 mm) |
| Package height | 1.3" (33 mm) |
| Package weight | 3.14 oz (89 g) |
| Packaging data | |
| Manual | Yes |
| Package width | 6.89" (175 mm) |
| Package depth | 5.71" (145 mm) |
| Package height | 1.3" (33 mm) |
| Package weight | 3.14 oz (89 g) |
| Logistics data | |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 15" (380 mm) |
| Master (outer) case length | 19.5" (496 mm) |
| Master (outer) case height | 12.6" (321 mm) |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Material | Plastic, Steel |
| Chipset | Marvell - 88SA8052 |
| Packaging content | |
| Manual | Yes |
