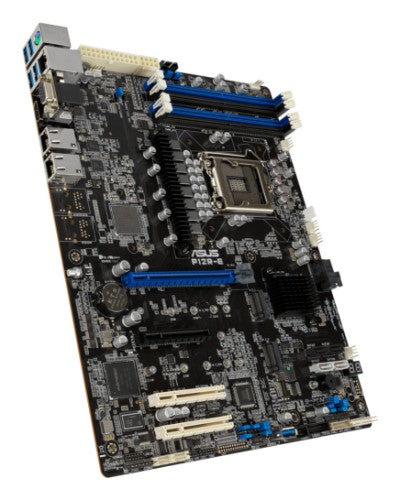

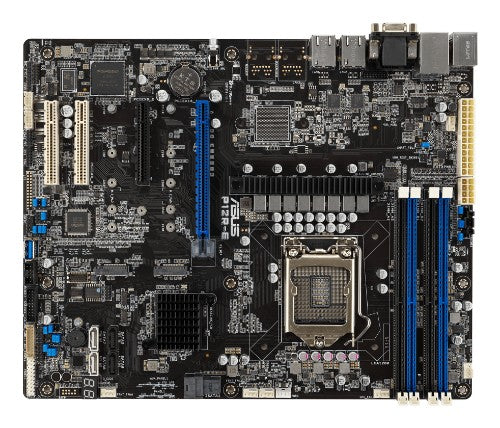

ASUS P12R-E motherboard Intel C256 LGA 1200 (Socket H5) ATX
551.77 CAD
Skip to product information
Out of stock
ASUS P12R-E motherboard Intel C256 LGA 1200 (Socket H5) ATX
Part number
P12R-E
551.77 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
9.5 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots
- Dual Intel I210AT Gigabit Ethernet with teaming support
- Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
- HDMI 1.4 support for high-resolution display maintenance and monitoring
- Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
- Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
High-resolution HDMI monitoring
ASUS P12R server motherboards feature an HDMI 1.4 port directed from the CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
Server-management Solution
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Enhanced security
ASUS P12R server motherboards integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all P12R server motherboards servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
High-resolution HDMI monitoring
ASUS P12R server motherboards feature an HDMI 1.4 port directed from the CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
Server-management Solution
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Enhanced security
ASUS P12R server motherboards integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all P12R server motherboards servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| Number of SATA III connectors | 8 |
| Number of COM connectors | 1 |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Performance | |
| Component for | Server |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C256 |
| Motherboard form factor | ATX |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Processor socket | LGA 1200 (Socket H5) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Supported memory module capacities | 8GB, 16GB, 32GB |
| Maximum internal memory | 128 GB |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Graphics | |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| On-board graphics card memory | 64 MB |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Features | |
| Component for | Server |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C256 |
| Motherboard form factor | ATX |
| Expansion slots | |
| PCI Express x4 slots | 2 |
| Number of M.2 (M) slots | 2 |
| PCI Express x8 slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Packaging data | |
| Package weight | 20.9 lbs (9.5 kg) |
| Weight & dimensions | |
| Width | 12" (305 mm) |
| Depth | 9.61" (244 mm) |
| Package weight | 20.9 lbs (9.5 kg) |
| Other features | |
| Package weight | 20.9 lbs (9.5 kg) |
