In stock
PoE+
A 65W PoE power budget supports up to eight Power over Ethernet devices.
Gigabit Ports
Eight gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.
Compact Design
With a compact and lightweight metal housing design, this switch is well-suited for desktop installations
Jumbo Frame
Sends Jumbo Frames (up to 9KB) for increased performance
Fanless
Fanless design is ideal for quiet environments that require silent operation

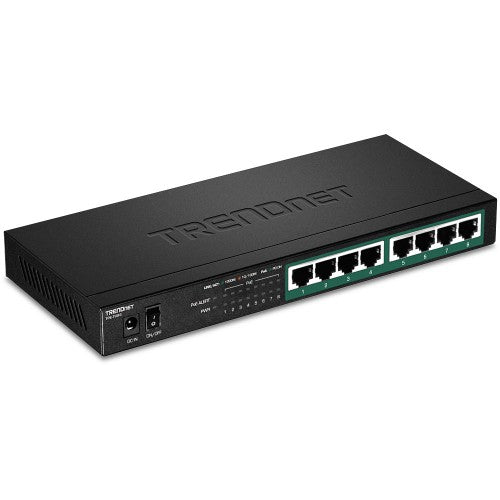

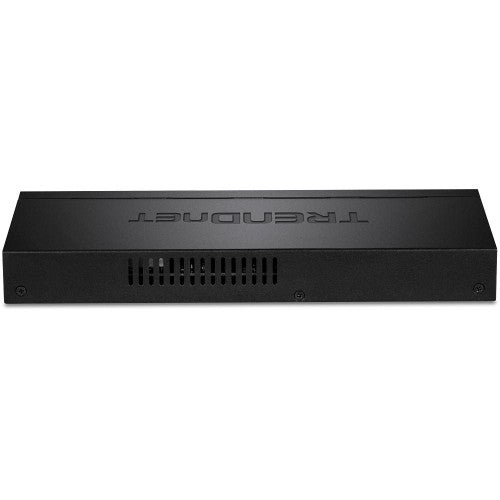

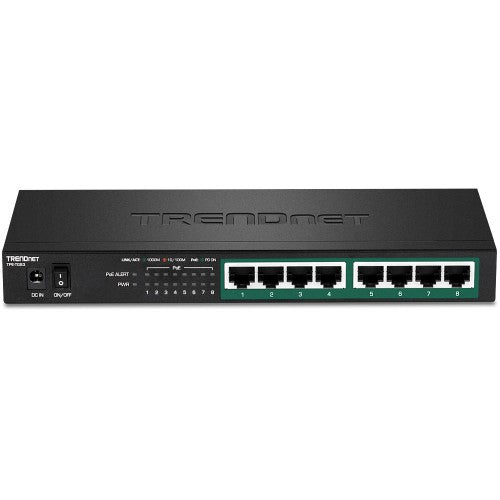

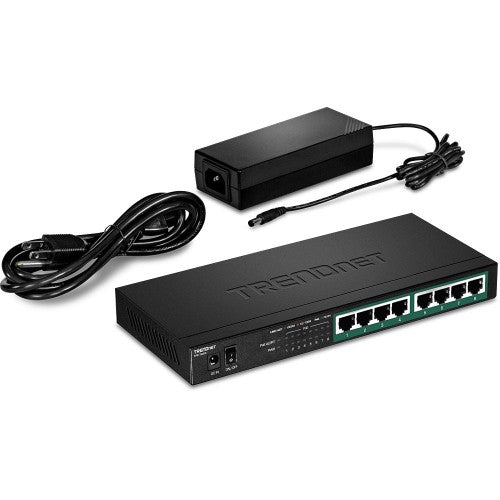

Trendnet TPE-TG83 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number
TPE-TG83
$107.13 CAD
8-Port, Gigabit, PoE+,Jumbo Frame, Fanless, 16Gbps, 192KB, 65W, Black
Key Features
- Compact fanless design
- Wall-mountable metal housing
Description
TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG83, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch provides eight gigabit PoE+ ports with a total PoE power budget of 65W. The TPE-TG83 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.PoE+
A 65W PoE power budget supports up to eight Power over Ethernet devices.
Gigabit Ports
Eight gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.
Compact Design
With a compact and lightweight metal housing design, this switch is well-suited for desktop installations
Jumbo Frame
Sends Jumbo Frames (up to 9KB) for increased performance
Fanless
Fanless design is ideal for quiet environments that require silent operation
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Cable types supported | Cat5e |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.192 MB |
| Forwarding rate | 11.9 Mpps |
| Design | |
| Product colour | Black |
| Wall mountable | Yes |
| LED indicators | Activity, Link, PoE, Power |
| Housing material | Metal |
| Certification | CE, FCC, LVD |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 0.192 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 9.45" (240 mm) |
| Depth | 4.13" (105 mm) |
| Height | 1.06" (27 mm) |
| Weight | 20.5 oz (580 g) |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | DC |
| Certificates | |
| Certification | CE, FCC, LVD |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | DC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
