In stock

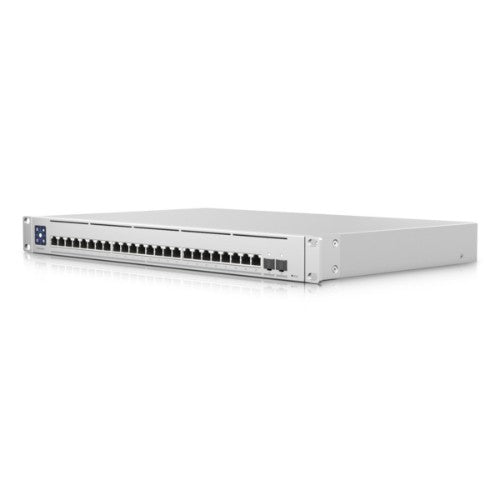

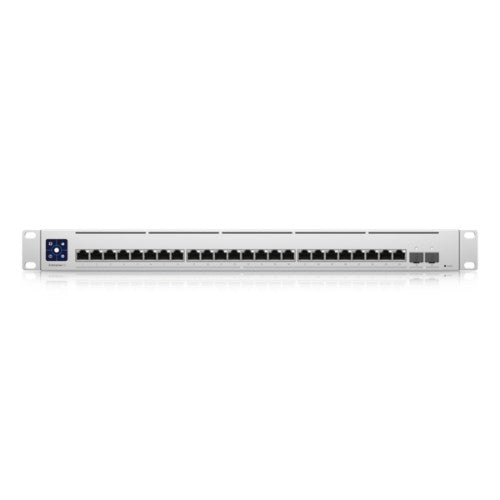

The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Ubiquiti UniFi Enterprise XG 24 Managed L3 10G Ethernet (100/1000/10000) Stainless steel
Part number
USW-ENTERPRISEXG-24
$1,714.52 CAD
Fully managed, L3, 24x 10GbE RJ-45 ports, 2x 25G SFP28 ports, 580 Gbps switching capacity, UniFi Network
Key Features
- (1) 1.3" LCM color touchscreen with AR switch management
- (24) 10GbE RJ45 ports
- (2) 25G SFP28 ports
- (1) USP RPS DC input
- Layer 3 switching features
- Single-row RJ45 port layout for easy patch panel cable management
Description
Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports.The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Specifications
| Management features | |
|---|---|
| Switch layer | L3 |
| Switch type | Managed |
| Reset button | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP28 ports quantity | 2 |
| Network | |
| Ethernet LAN data rates | 10,1000,2500,5000,10000 Mbit/s |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 580 Gbit/s |
| Forwarding rate | 431.52 Mpps |
| Throughput | 290 Gbit/s |
| Design | |
| Rack mounting | Yes |
| Product colour | Stainless steel |
| Reset button | Yes |
| LED indicators | Activity, Link |
| Housing material | Steel |
| Power | |
| Power supply included | No |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 100 W |
| Redundant power supply (RPS) support | Yes |
| Input current | 8.7 A |
| DC input voltage | 11.5 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 17.4" (442 mm) |
| Depth | 11.2" (285 mm) |
| Height | 1.73" (44 mm) |
| Weight | 9.85 lbs (4.47 kg) |
| Packaging content | |
| Manual | Yes |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Compliance certificates | CE |
| Certificates | |
| Compliance certificates | CE |
| Packaging data | |
| Manual | Yes |
| Other features | |
| Ethernet LAN data rates | 10,1000,2500,5000,10000 Mbit/s |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
