Incredible Immersion with Ultra-Narrow Bezel

ACHIEVING INCREDIBLE IMMERSION

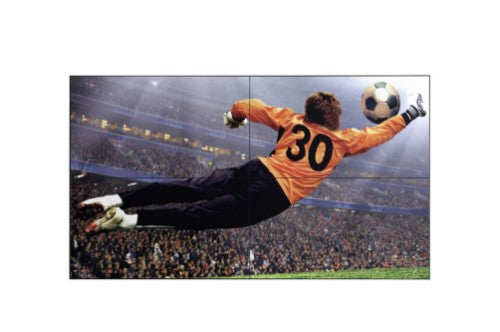

Seamless Large Screens with Ultra- Narrow Bezel
The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

ACHIEVING INCREDIBLE IMMERSION
Image Gap Reduction
The VL5G-M series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
* The "LG Conventional" refers to displays which do not include an image improvement algorithm.

VIVID AND DYNAMIC PICTURE QUALITY
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5G-M series is high enough to display vivid colors throughout the screen with no distortion.
* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

VIVID AND DYNAMIC PICTURE QUALITY
Wide Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5G-M series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

USER CONVENIENCE White
Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

USER CONVENIENCE
White Balance Adjustment
In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL5G-M series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

USER CONVENIENCE
User-Friendly Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

USER CONVENIENCE
Intuitive GUI
The GUI (Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a large font for better visibility, which is necessary when users want to control displays from relatively far distances.

Display
Display diagonal	49"
Display resolution	1920 x 1080 pixels
HD type	Full HD
Panel type	IPS
Aspect ratio	16:9
Display brightness	500 cd/m²
Contrast ratio (typical)	1000:1
Response time	8 s
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Design
Placement supported	Indoor
Orientation	Horizontal/Vertical
Bezel width (top)	0.0886" (2.25 mm)
Bezel width (side)	0.0492" (1.25 mm)
Bezel width (bottom)	0.0492" (1.25 mm)
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Product colour	Black
Ports & interfaces
HDMI ports quantity	2
HDMI input ports quantity	2
DVI port	Yes
DVI-D ports quantity	1
DisplayPorts quantity	3
DisplayPorts in	2
DisplayPorts out	1
Ethernet LAN (RJ-45) ports	1
USB port	Yes
RS-232C	Yes
USB ports quantity	1
Power
Power consumption (typical)	100 W
Power consumption (max)	120 W
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	80 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical details
Harmonized System (HS) code	85285210
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Logistics data
Harmonized System (HS) code	85285210
Weight & dimensions
Width	42.4" (1077.6 mm)
Depth	3.53" (89.7 mm)
Height	23.9" (607.8 mm)
Weight	37.3 lbs (16.9 kg)
Packaging data
Cables included	AC, DisplayPort
Package width	47.8" (1214 mm)
Package depth	10.4" (263 mm)
Package height	30.6" (778 mm)
Package weight	64.6 lbs (29.3 kg)
