Fractal Design Core 1100 Mini Tower Black
Part number
FD-CA-CORE-1100-BL
$79.43 CAD
Micro-ATX, Mini ITX, 2 x 5.25", 2 x 3.5"/2.5", ATX PSUs, USB 3.0, USB 2.0
Key Features
- An extremely compact micro ATX case, designed for exceptional airflow and cooling
- Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
- One Fractal Design 120mm fan included

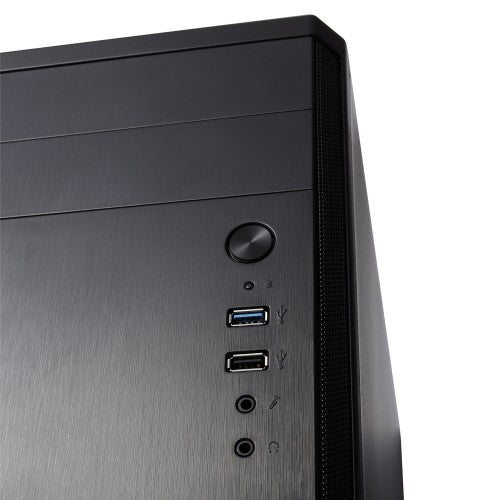

- Easy access I/O on front panel, with audio and both USB 3.0 and USB 2.0 ports
- Front panel dust filters and closed top and bottom panels help maintaining a dust free interior
- Innovative vertical HDD bracket, which can hold two 3.5" drives or three 2.5" drives, or one drive of each size
- Vibration-dampened mounting for both 3.5" drive slots
- Fully painted interior, with Fractal Design signature white details
Reasons To Buy
Brushed aluminum
Brushed aluminum-look front panel with a sleek, three-dimensional textured finish1x 120 mm fan included
One Fractal Design 120 mm fan includedSmart HDD Bracket
Innovative vertical HDD bracket, which can hold two 3.5" drives or three 2.5" drives, or one drive of each sizeDescription
Despite its extremely small outer dimensions, the Core 1100 mATX case provides everything you need. The stylish, Scandinavian exterior design is matched by the fully painted interior, complete with the signature white details of Fractal Design. The case is optimized for airflow with a straight cooling path, and comes equipped with a pre-installed 120mm fan. The front panel is equipped with dust filters. An innovative vertical hard drive bracket can fit either two 3.5" drives, three 2.5" drives, or one drive of each size. Both the 3.5" drive slots come with silicone vibration dampening grommetsSpecifications
| Ergonomics | |
|---|---|
| LED indicators | HDD, Power |
| Design | |
| Form factor | Mini Tower |
| Type | PC |
| Number of 5.25" bays | 2 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Product colour | Black |
| Anti-dust filter | Yes |
| Number of internal 3.5" bays | 2 |
| Number of external 5.25" bays | 2 |
| Side window | No |
| LED indicators | HDD, Power |
| Illumination | No |
| Built-in speaker(s) | No |
| Number of expansion slots | 4 |
| Maximum CPU cooler height | 5.83" (14.8 cm) |
| Maximum graphics card length | 13.8" (35 cm) |
| Maximum PSU length | 7.28" (18.5 cm) |
| Power supply | |
| Power supply included | No |
| Supported power supply form factors | ATX |
| Power supply location | Bottom |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
| Front radiator installed | No |
| Rear radiator installed | No |
| Top radiator installed | No |
| Front fans installed | 1x 120 mm |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 92 mm |
| Fan speed | 1200 |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |
| Width | 6.89" (175 mm) |
| Depth | 16.1" (410 mm) |
| Height | 14.1" (358 mm) |
| Weight | 8.38 lbs (3.8 kg) |
| Packaging data | |
| Manual | Yes |
| Package width | 9.25" (235 mm) |
| Package depth | 19.1" (485 mm) |
| Package height | 16.5" (420 mm) |
| Package weight | 10.1 lbs (4.6 kg) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Manual | Yes |
| Harmonized System (HS) code | 84733080 |
