This USB-C Dual Display Docking Station supports connected devices, such as keyboards, mice, portable hard drives, and other peripherals, all while supporting up to 60W of power delivery to keep the laptop battery charged.
This USB-C Dual Display Docking Station has two video display outputs, simultaneously splitting content into two displays while supporting resolutions up to 1080p. Connect a single display and support resolutions up to 4K (3840 x 2160) at 30Hz. Three USB-A ports support SuperSpeed USB 5Gbps data transfers, and two USB-A ports support 480Mbps data transfers. The USB-C port supports power delivery ― allowing 60W to power and charge the connected laptop. Optimize performance by connecting displays designed for 4K signals and USB-A devices designed for 5Gbps transfer speeds.
Maximum Supported Resolutions
2 HDMI Ports to 2 Displays: 1080p at 60Hz
1 HDMI Port to 1 Display: 4K (3840 x 2160) at 30Hz
PORTS
2x 4K HDMI: Connect to two displays via the HDMI ports.
1x USB-C Power Delivery: Power a laptop or tablet with up to 60W power delivery.
5x USB-A: Connect storage devices and transfer data up to 5Gbps through the USB-A ports.
Gigabit Ethernet: Connect to local network for network and internet access.
3.5mm Jack: Connect a headphone/microphone for audio output.

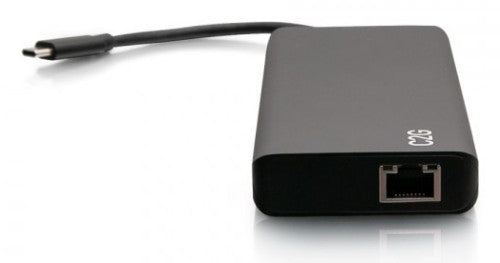

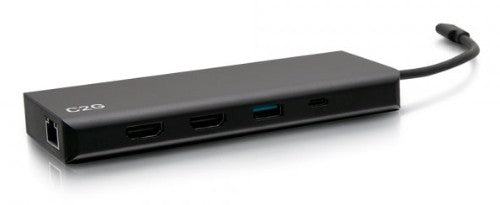

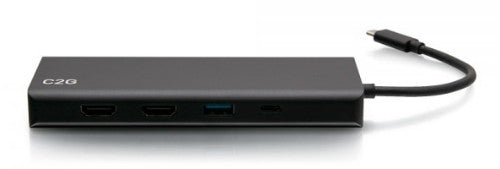

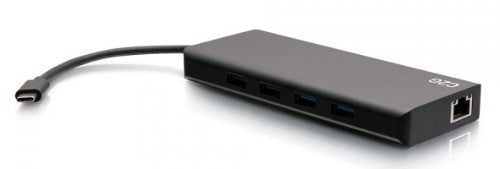

C2G C2G54488 Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Part number
C2G54488
$184.52 CAD
USB-C® 9-in-1 Dual Display Docking Station with HDMI®, Ethernet, USB, 3.5mm Audio and Power Delivery up to 60W - 4K 30Hz (TAA Compliant)
Key Features
- Connect a USB-C laptop to multiple 4K video displays, a wired network, and transfer data, while keeping the laptop charged
- 60W USB-C power supply to support connected displays and devices
- Dual HDMI display extension from a single USB-C connection
- Supports single HDMI display resolutions up to 4K (3840 x 2160) at 30Hz for viewing high definition content
- Supports dual HDMI display resolutions up to 1080p
- USB-A 2.0 and USB-A 3.0 ports for fast data transferring
- Hard wired Ethernet port for when security requires it or when WiFi™ is not available
- Compatible with Windows and Mac operating systems
- 5 year warranty, for peace of mind – with the highest quality docking stations
Description
The USB-C 9-in-1 Dual Display Docking Station with HDMI, Ethernet, USB, 3.5mm Audio and Power Delivery connects to USB-C or Thunderbolt™ 3 enabled laptops. It is perfect for contributing to a desktop solution ― making it ideal for those extra connectivity demands that inside reps have for multitasking and increasing productivity while in the office or when working from home.This USB-C Dual Display Docking Station supports connected devices, such as keyboards, mice, portable hard drives, and other peripherals, all while supporting up to 60W of power delivery to keep the laptop battery charged.
This USB-C Dual Display Docking Station has two video display outputs, simultaneously splitting content into two displays while supporting resolutions up to 1080p. Connect a single display and support resolutions up to 4K (3840 x 2160) at 30Hz. Three USB-A ports support SuperSpeed USB 5Gbps data transfers, and two USB-A ports support 480Mbps data transfers. The USB-C port supports power delivery ― allowing 60W to power and charge the connected laptop. Optimize performance by connecting displays designed for 4K signals and USB-A devices designed for 5Gbps transfer speeds.
Maximum Supported Resolutions
2 HDMI Ports to 2 Displays: 1080p at 60Hz
1 HDMI Port to 1 Display: 4K (3840 x 2160) at 30Hz
PORTS
2x 4K HDMI: Connect to two displays via the HDMI ports.
1x USB-C Power Delivery: Power a laptop or tablet with up to 60W power delivery.
5x USB-A: Connect storage devices and transfer data up to 5Gbps through the USB-A ports.
Gigabit Ethernet: Connect to local network for network and internet access.
3.5mm Jack: Connect a headphone/microphone for audio output.
Specifications
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Black |
| Card reader integrated | No |
| Number of displays supported | 2 |
| Data transfer rate | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Housing material | Metal |
| Maximum refresh rate | 30 Hz |
| Storage | |
| Card reader integrated | No |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Weight & dimensions | |
| Weight | 9.52 oz (270 g) |
| Package weight | 10.2 oz (290 g) |
| Design | |
| Product colour | Black |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 10.2 oz (290 g) |
| Technical details | |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
