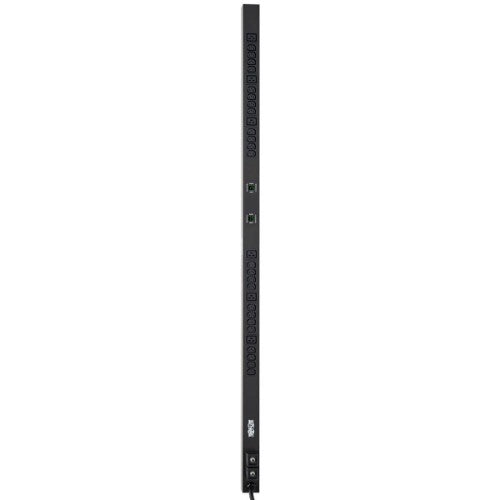

Tripp Lite PDUMV30HV power distribution unit (PDU) 30 AC outlet(s) 0U Black
563.41 CAD
Skip to product information
4 left
Tripp Lite PDUMV30HV power distribution unit (PDU) 30 AC outlet(s) 0U Black
Part number
PDUMV30HV
563.41 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
5.17 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 30A single phase 208/240V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)

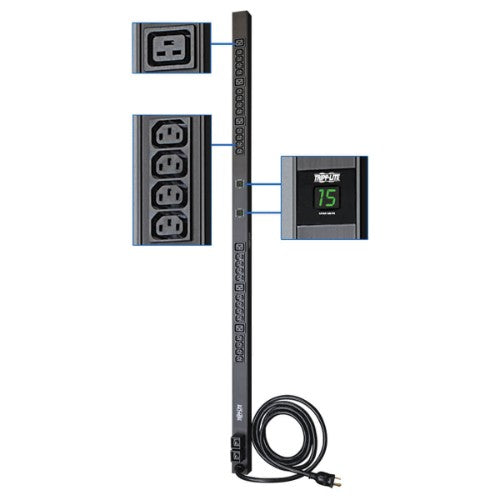

- Set of two lighted meters report PDU output current in amps for each output load bank
- Attached NEMA L6-30P 30A 208/240V input plug and 12ft / 3.6m cord
- 0U 63.75in / 162cm vertical rackmount format installs using no rack spaces
- 30 output receptacles (6 C19, 24 C13)
- Outlets are arranged in two 15 outlet load banks, each with separate 15A breaker and current metering
- Toolless installation in button-mount compatible equipment racks
- 30A single phase 208/240V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)
- Set of two lighted meters report PDU output current in amps for each output load bank
- Attached NEMA L6-30P 30A 208/240V input plug and 12ft / 3.6m cord
- 0U 63.75in / 162cm vertical rackmount format installs using no rack spaces
- 30 output receptacles (6 C19, 24 C13)
- Outlets are arranged in two 15 outlet load banks, each with separate 15A breaker and current metering
- Toolless installation in button-mount compatible equipment racks
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Vertical |
| Type | Single-phase |
| Product colour | Black |
| Certification | UL60950-1 (USA, Canada), NOM (Mexico) |
| Rack capacity | 0U |
| Housing material | Aluminum |
| Ports & interfaces | |
| Power plug | NEMA L6-30P |
| AC outlets quantity | 30 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| LED indicators | Yes |
| Cable length | 120.1" (3.05 m) |
| Certification | UL60950-1 (USA, Canada), NOM (Mexico) |
| Ergonomics | |
| LED indicators | Yes |
| Cable length | 120.1" (3.05 m) |
| Power | |
| Nominal input voltage | 208-230 V |
| Maximum current | 30 A |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | UL60950-1 (USA, Canada), NOM (Mexico) |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight & dimensions | |
| Weight | 8 lbs (3.63 kg) |
| Width | 2.24" (57 mm) |
| Depth | 3.74" (95 mm) |
| Height | 63.8" (1620 mm) |
| Package width | 3" (76.2 mm) |
| Package depth | 65" (1651 mm) |
| Package height | 5" (127 mm) |
| Package weight | 11.4 lbs (5.17 kg) |
| Packaging data | |
| Package width | 3" (76.2 mm) |
| Package depth | 65" (1651 mm) |
| Package height | 5" (127 mm) |
| Package weight | 11.4 lbs (5.17 kg) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332139358 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 16" (406.4 mm) |
| Master (outer) case length | 65.5" (1663.7 mm) |
| Master (outer) case height | 7" (177.8 mm) |
| Master (outer) case gross weight | 68.3 lbs (31 kg) |
| Products per master (outer) case | 6 pc(s) |
| Country of origin | China |
| Master (outer) case GTIN (EAN/UPC) | 10037332139358 |
