TV Wall Mount Secures Your Interactive Touchscreen Display at Arm’s Length

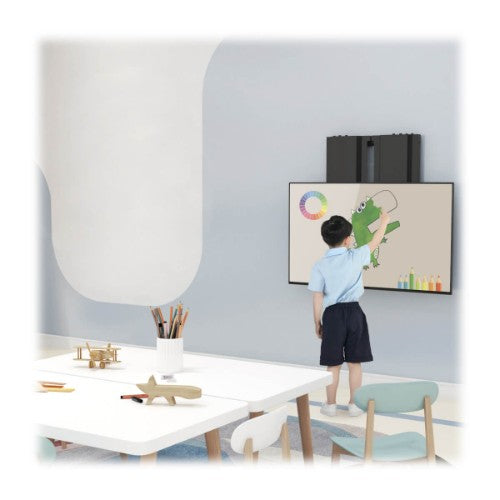

The VESA-compliant DWM7090HD mounts your television, monitor, whiteboard or interactive display to a wood stud, brick or concrete wall with the included hardware. Recommended for conference rooms, boardrooms and classrooms, this wall mount supports most popular brands of interactive touchscreen displays, including Promethean, Balance Box and Balt.

Glides Up and Down with Just a Touch for Perfect Viewing

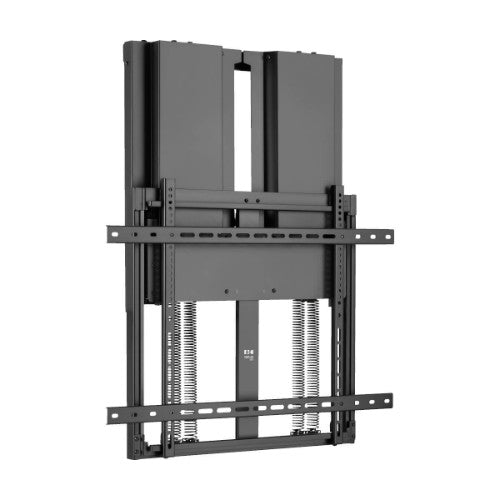

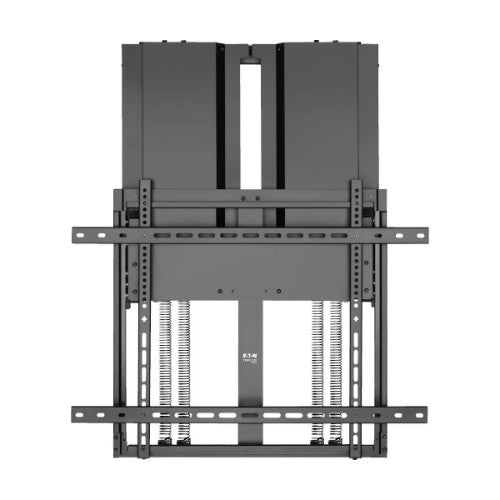

Intricately designed counterbalanced springs allow the connected display to glide up and down the wall, allowing users of all sizes to adjust and work at the interactive touchscreen. With 15.7 inches (40 centimeters) of vertical movement, the DWM7090HD provides easy fingertip control for everyone.

Durable All-Metal Construction Built to Last
This height-adjustable TV wall mount is made from heavy-duty steel with a powder-coated black finish that resists scratches and blends smoothly into any room décor. It is compatible with most flat-screen televisions, monitors and interactive digital whiteboards between 70 and 90 inches and supports 132 to 198 pounds (90 kilograms).

VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this TV wall mount supports the following VESA mounting hole patterns: 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 400 x 500, 400 x 600, 600 x 300, 600 x 400, 600 x 500, 600 x 600, 700 x 400, 700 x 500, 700 x 600, 800 x 500 and 800 x 600.

Mounting
Maximum weight capacity	198.4 lbs (90 kg)
Minimum screen size	70"
Maximum screen size	90"
Panel mounting interface	200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,600 x 400,600 x 600,600 x 300,600 x 500,700 x 400,700 x 500,700 × 600,800 x 400,800 x 500,800 x 600
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount	31.5 x 23.6" (800 x 600 mm)
Ergonomics
Height adjustment	Yes
Distance to the wall (max)	5" (12.7 cm)
Height adjustment type	Manual
Design
Product colour	Black
Housing material	Steel
Technical details
Mounting type	Wall
Country of origin	China
Quantity per pack	1 pc(s)
Compliance certificates	REACH, RoHS
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	33.1" (840 mm)
Depth	5" (127 mm)
Height	40.9" (1039.9 mm)
Weight	56.7 lbs (25.7 kg)
Packaging data
Package width	29.1" (739.1 mm)
Package depth	29.1" (739.1 mm)
Package height	5.51" (140 mm)
Package weight	63.7 lbs (28.9 kg)
Mounting kit	Yes
Manual	Yes
Logistics data
Master (outer) case width	31.3" (795 mm)
Master (outer) case length	31.3" (795 mm)
Master (outer) case height	6.1" (154.9 mm)
Master (outer) case gross weight	70.5 lbs (32 kg)
Products per master (outer) case	1 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332268836
Harmonized System (HS) code	8302.50.0000
Other features
Mounting type	Wall
Country of origin	China
