Now You Can Add a PoE Device to Your LAN Without a PoE Switch
Add a surveillance camera, wireless access point, VoIP phone, outdoor kiosk, smart lights or other PoE (Power over Ethernet) device to your home or office network, even if your network switch doesn’t support PoE. Instead of making an expensive upgrade to a PoE switch, you can use this single-port PoE++ injector to send 90W of power, as well as Gigabit Ethernet data, through your existing Cat5e/6/6a cabling. It is recommended for outdoor applications, such as LED lights, security cameras and heater elements.

Saves You Time and Money on Unnecessary Equipment Updates
This compact PoE plus injector delivers 10/100/1000 Mbps (1 Gbps) of data and up to 90W of power using existing Cat5e/6/6a cables. That means, in addition to not buying a new PoE network switch, you also don’t need to install new AC power lines and electrical outlets. This cost-effective midspan injector sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor.

Expand Your PoE Network Up to 328 ft.
The NPOEI-90W-1G delivers both power and data to any IEEE 802.3af (PoE), 802.3at (PoE+) or 802.3bt (4PPoE) device up to 328 feet (100 meters) away. This allows you to install a device in a building lobby, on a ceiling, inside a warehouse or anywhere else an AC power outlet is unavailable. The PoE+ injector supports full-duplex 2 Gbps communication for sending and receiving data simultaneously. It also protects your device against short circuits, high voltage and overloads.

Simple Plug-and-Play Installation Has Your Device Connected in Minutes

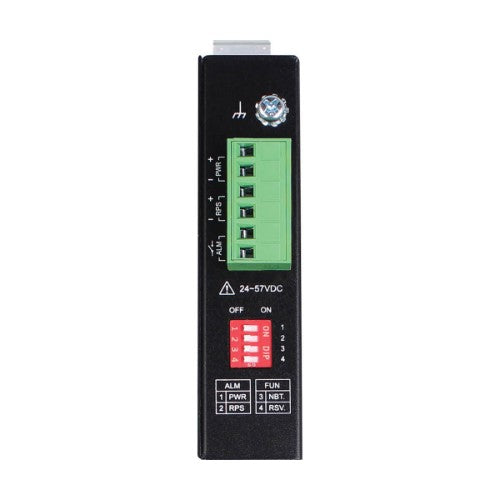

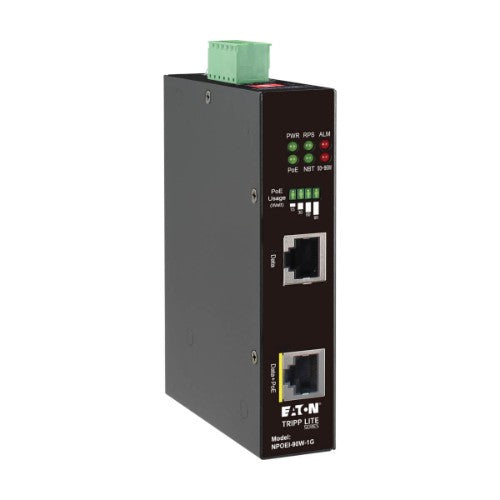

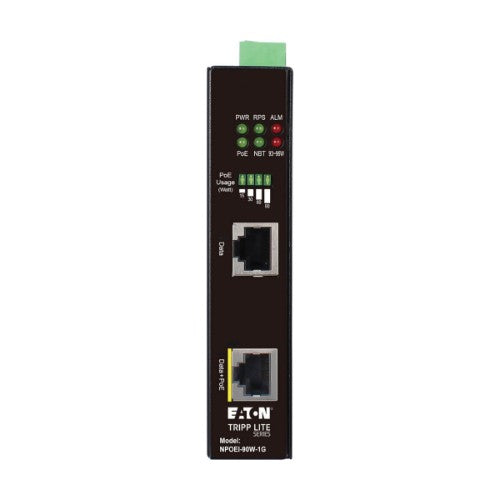

No configuration or software is required to add the NPOEI-90W-1G to your LAN (local area network). Just connect your switch or Ethernet network to the shielded RJ45 LAN port and your PoE device to the shielded RJ45 PoE port using existing Cat5e/6/6a cable. The included terminal block offers dual primary and redundant power inputs. DIP switches and LEDs help you find the right settings for your application. The NPOEI-90W-1G automatically detects which connected devices are compatible.

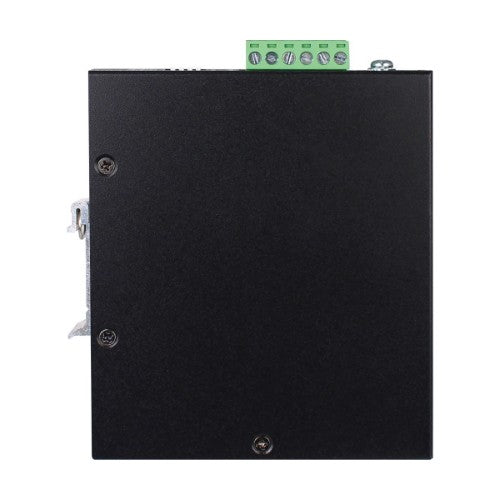

Designed for Installation on a DIN Rail

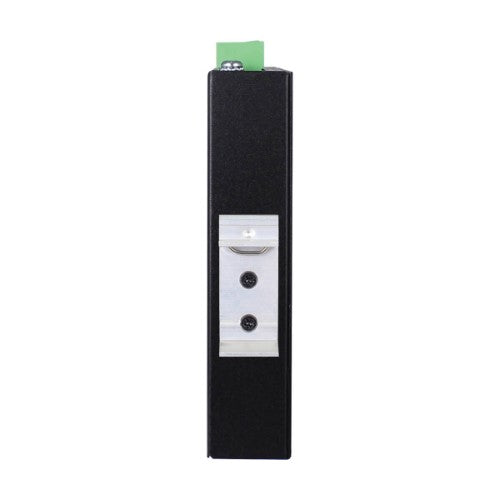

A DIN rail kit is included for mounting the IP30-rated metal housing on a well-grounded corrosion-free rail. The fanless design is ideal for silent operation.

Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ethernet LAN data rates	1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Features
Wall mountable	Yes
Product colour	Black
Rack mounting	Yes
LED indicators	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Country of origin	Taiwan
Power
Total Power over Ethernet (PoE) budget	90 W
Input voltage	24 - 57 V
Input frequency	50/60 Hz
Certificates
Compliance certificates	CE, REACH, RoHS
Sustainability
Sustainability compliance	Yes
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 75 °C
Operating temperature (T-T)	-49 - 167 °F
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	0.984" (25 mm)
Depth	3.94" (100 mm)
Height	4.57" (116 mm)
Package weight	13.1 oz (370 g)
Package depth	7.2" (182.9 mm)
Package width	9.17" (232.9 mm)
Package height	2.44" (62 mm)
Packaging data
Package weight	13.1 oz (370 g)
Package depth	7.2" (182.9 mm)
Package width	9.17" (232.9 mm)
Package height	2.44" (62 mm)
Technical details
Sustainability compliance	Yes
Master (outer) case GTIN (EAN/UPC)	10037332265927
Compliance certificates	CE, REACH, RoHS
Logistics data
Country of origin	Taiwan
Master (outer) case width	15.1" (384 mm)
Master (outer) case length	13.1" (334 mm)
Master (outer) case height	10.2" (260.1 mm)
Master (outer) case gross weight	9.92 lbs (4.5 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332265927
