PoE Camera Flexibility
The switch recognizes non-PoE, PoE (15.4 W), and PoE+ (30 W) cameras (or other PoE devices) and supplies the required amount of power automatically.
Full PoE Power
The large 246 Watt PoE power budget supplies full PoE power to every port, thereby maximizing the number of allowable connected PoE devices.
Gigabit Networking
All Gigabit ports produce a 32 Gbps switching capacity and support Jumbo Frames up to 10 KB.

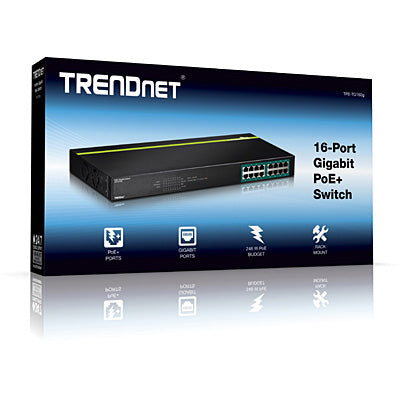

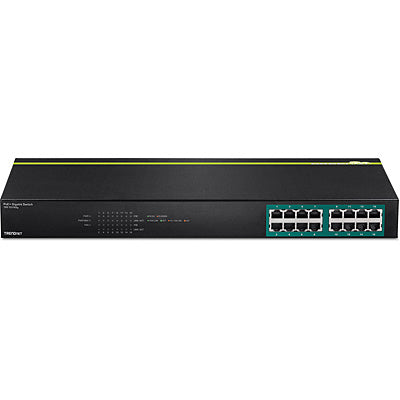

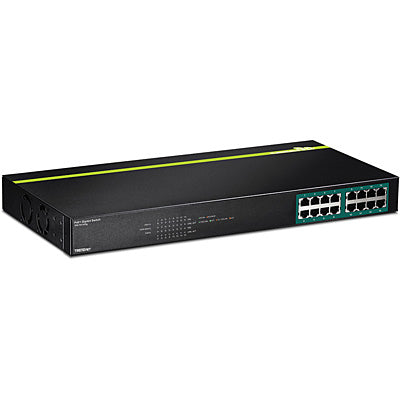

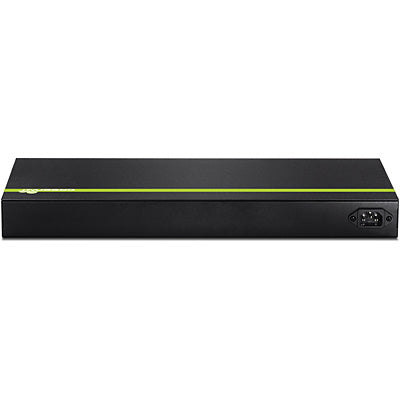

Trendnet TPE-TG160G network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Part number
TPE-TG160G
$395.83 CAD
16-Port Gigabit PoE+ Switch
Key Features
- 16 x Gigabit PoE+ ports
- 32Gbps switching capacity
- 246W PoE power budget
- IEEE 802.3af/at compliant
- Smart Fans
- Reduces equipment cost by delivering data and power over existing network cables
- 1U 19” rack mountable metal housing with brackets included
- Internal power supply
- NDAA / TAA compliant (U.S. and Canada only)
Description
TRENDnet’s 16-Port Gigabit PoE+ Switch, model TPE-TG160g, offers 16 x Gigabit PoE+ ports, a 32 Gbps switching capacity, and a PoE power budget of 246 Watts. This rugged metal switch comes with a rack mount kit.PoE Camera Flexibility
The switch recognizes non-PoE, PoE (15.4 W), and PoE+ (30 W) cameras (or other PoE devices) and supplies the required amount of power automatically.
Full PoE Power
The large 246 Watt PoE power budget supplies full PoE power to every port, thereby maximizing the number of allowable connected PoE devices.
Gigabit Networking
All Gigabit ports produce a 32 Gbps switching capacity and support Jumbo Frames up to 10 KB.
Specifications
| Management features | |
|---|---|
| Switch layer | L2 |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
| 10G support | No |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Throughput | 23.8 Mpps |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Form factor | 1U |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | CE FCC |
| Performance | |
| Buffer size | 512 KB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (typical) | 36 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 246 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 8.27" (210 mm) |
| Height | 1.73" (44 mm) |
| Weight | 6.61 lbs (3 kg) |
| Certificates | |
| Certification | CE FCC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
