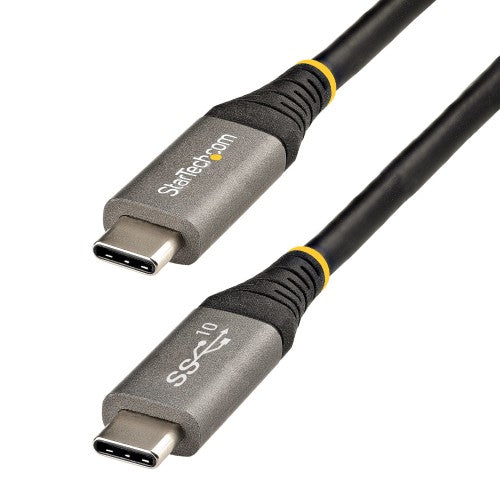

StarTech.com USB31CCV1M USB cable USB 3.2 Gen 2 (3.1 Gen 2) 39.4" (1 m) USB C Black, Gray
1/8

StarTech.com USB31CCV1M USB cable USB 3.2 Gen 2 (3.1 Gen 2) 39.4" (1 m) USB C Black, Gray

Part number USB31CCV1M
22.71 CAD
Taxes and shipping calculated at checkout.
In stock

Enjoy Free Shipping on orders over 2000 CAD

Shipping time varies based your on location.

Specifications
Weight
0.095 kg
Shipping + Returns

Shipping Policy

Ships to: Canada & USA via UPS, DHL, & Canada Post.

Fast Dispatch: Orders before 2 PM EST process same-day.

Options: Standard (Ground) and Express (Air) shipping available.

Heavy Items: Heavy freight usually requires1-2 extra days for Processing

Returns & Refunds

Return Period: Request a return within 14 days of delivery.

Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.

Condition: Items must be returned in original packaging (New or Like New).

Final Sale: Software, licenses, and special orders cannot be returned.

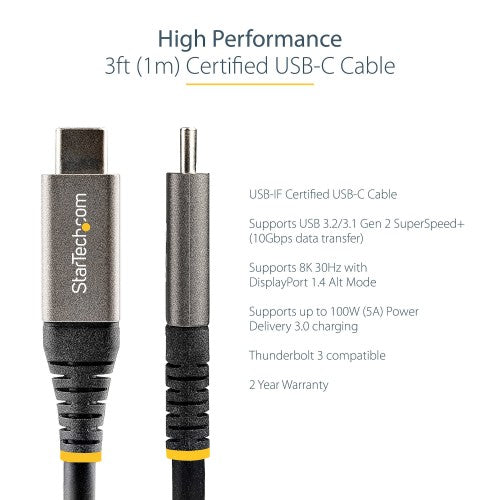

  • HIGH PERFORMANCE: 3.3ft (1m) Certified USB-C cable supports SuperSpeed USB 3.2 Gen 2 (10Gbps) data transfer; DisplayPort 1.4 Alt mode up to 8K 60Hz; USB C to C cable supports up to 100W (5A) Power Delivery 3.0 charging; Thunderbolt 3 compatible
  • USB-IF CERTIFIED USB C CABLE: For home or office, this high quality USB C Cord has been tested to meet USB 3.2 Gen 2 standards; 32 AWG conductors with Al-Mylar foil (85% Braid coverage) EMI shielding provides superior signal integrity and reliability

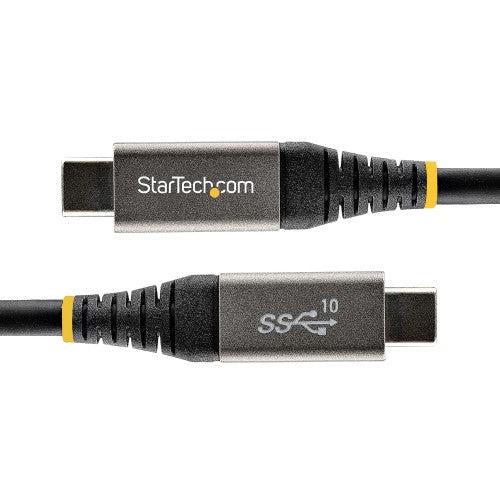

  • DURABLE DESIGN: USB Type-C cable has been tested to withstand 10,000+ insertions & 4000+ bend angle of +/- 60° Long lasting flexible TPE jacket and strain relief; TPE is non-toxic and halogen free; Compatible with USB 3.2 and earlier versions

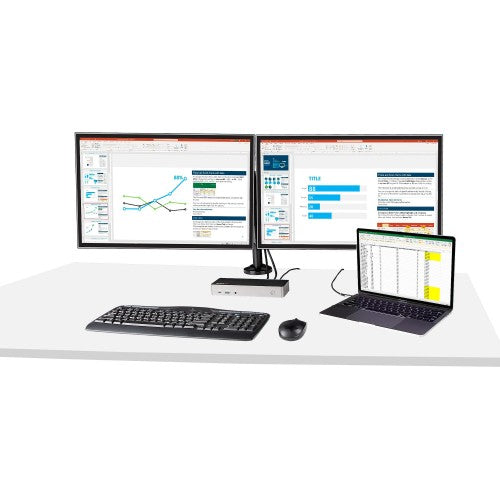

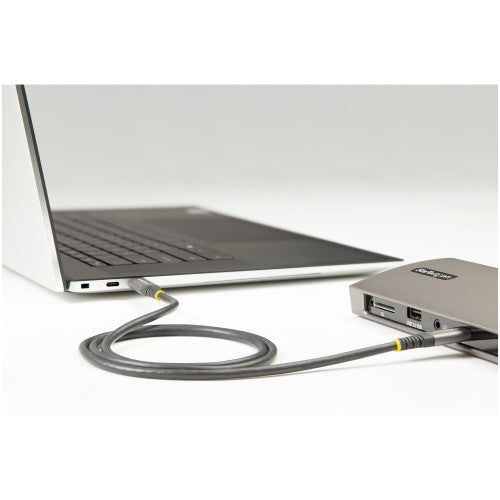

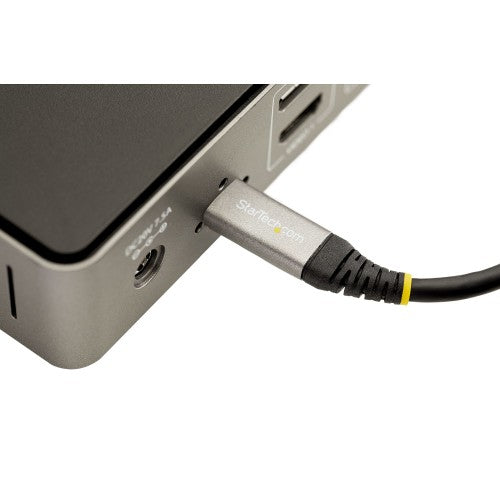

  • APPLICATIONS: Works w/docking stations/external hard drives; TB3/4 or USB-C laptops MacBook Air/Pro, Surface Book, X1 Carbon, iPad Pro, iPhone 15 [Plus/Pro/Max] and up, Samsung Galaxy S8 & up, Pixel 5; USB-C portable monitors Asus ZenScreen/ProArt

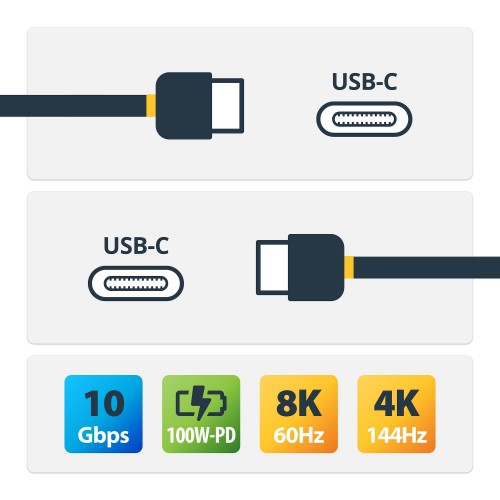

  • SPECS: 3.3 feet (1 meter); Color: Black; USB 3.2 Gen 2 10Gbps; PD 3.0, 20V (max), 5A (max); USB C Cable Male to Male; 0.19" (4.8 mm) Outer Diameter, 32 AWG; Jacket: TPE; EMI Shield: Al-Mylar Foil, 85% Braid; DP 1.4 Alt mode 8K 60Hz, 4K 144Hz
USB C Cable 10Gbps | USB-IF Certified |100W (5A) Power Delivery | DP Alt Mode

This USB 3.2 Gen 2 10Gbps USB-C™ cable lets you connect your USB Type-C™ devices for syncing, charging and powering your devices.

The cable is also compatible with Thunderbolt™ 3 ports, which means you can charge and sync your USB-C mobile devices using your Thunderbolt 3 laptop.

Power your USB-C devices

With up to 5A (100W) of power delivery, you can power a USB-C laptop, such as your Apple MacBook or Microsoft Surface Book. Simply connect the cable to your USB-C laptop and to a USB-C wall charger.

You can use this USB Type-C cable to power your USB-C hard drive from the USB-C port on your laptop.

Charge your mobile devices

When used with devices that support PD 3.0, this cable charges up to 20V and 5A for a maximum of 100W. It can decrease your charge time and make sure your mobile devices are ready, whenever you need them.

Deliver 8K Video with DisplayPort 1.4 Alt Mode

The cable supports 8K 30Hz video with DisplayPort 1.4 and is backward compatible to connect your docking station or laptop to a monitor that supports 4K or 1080p resolutions.

Provide superior connections with USB-IF certified cables

The cable has undergone rigorous compliance testing and is certified by USB-IF (USB Implementers Forum) to meet all USB 3.2 specifications. This includes all environmental, electrical and mechanical standards, which ensures a reliable, high-quality cable for all your USB-C devices.

The USB31CCV1M from StarTech.com is backed by a 2-year warranty for guaranteed reliability.

The StarTech.com Advantage
Features
USB version USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1 USB C
Connector 2 USB C
Cable length 39.4" (1 m)
Plug and Play Yes
Connector 1 form factor Straight
Connector 2 form factor Straight
Connector contacts plating Nickel
Product colour Black, Gray
Maximum data transfer rate 10000 Mbit/s
Country of origin China
Cable shielding Aluminum mylar foil
Connector 1 gender Male
Connector 2 gender Male
USB Power Delivery (USB PD) Yes
Cable jacket material Thermoplastic elastomer (TPE)
USB Power Delivery up to 100 W
USB Power Delivery revision 3.0
Maximum data transfer rate 10 Gbit/s
Output voltage 20 V
Output current (max) 5 A
Cable diameter 0.189" (4.8 mm)
Weight 1.55 oz (44 g)
Quantity per pack 1 pc(s)
Power
Output voltage 20 V
Output current (max) 5 A
Weight & dimensions
Cable length 39.4" (1 m)
Cable diameter 0.189" (4.8 mm)
Weight 1.55 oz (44 g)
Package width 4.92" (125 mm)
Package depth 8.66" (220 mm)
Package height 0.394" (10 mm)
Package weight 3.35 oz (95 g)
Packaging data
Package width 4.92" (125 mm)
Package depth 8.66" (220 mm)
Package height 0.394" (10 mm)
Package weight 3.35 oz (95 g)
Quantity per pack 1 pc(s)
Packaging content
Quantity per pack 1 pc(s)
Technical details
Country of origin China
Harmonized System (HS) code 84733080
Logistics data
Products per master (outer) case 160 pc(s)
Master (outer) case width 15.4" (390 mm)
Master (outer) case length 16.9" (430 mm)
Master (outer) case height 11.4" (290 mm)
Country of origin China
Harmonized System (HS) code 84733080
