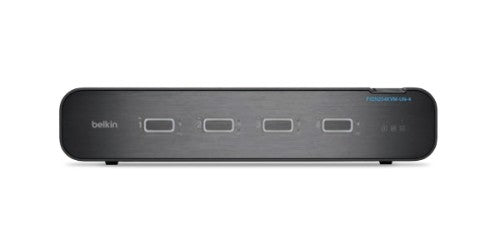

Designed to deliver a streamlined user experience when working across security enclaves, Belkin's Universal 2nd Gen Secure KVM switches meet the latest in Common Criteria and NIAP Protection Profile for Peripheral Switching Devices version 4.0 requirements. Compatible with the optional Belkin KVM Remote Control with Integrated Keyboard, the Universal 2nd Gen Secure KVMs elevate the user experience while vastly improving enclave awareness and minimizing operator errors. The keyboard combined with a variety of mounting options from Belkin helps declutter the desk without jeopardizing operator control. Optical data diodes and embedded peripheral emulation allow operators to safely share peripherals across multiple security enclaves without exposing potential vectors for attack. Innovative video combo connectors combined with auto-sensing and internal converters make the Universal 2nd Gen SKVM Series compatible with modern and legacy systems, eliminating the need for external converters and their inherent cost and compatibility problems. Always on, active anti-tamper and some of the most advanced protections against ultrasonic audio attacks round out the Universal 2nd Gen SKVMs. US-Manufactured and TAA-compliant, these secure KVM series are ideal for use in IT environments that demand rigorous cybersecurity provisions—including government, military, and healthcare applications.

Meets the Highest Standards for Cybersecurity
Ideal for highly sensitive applications that demand isolation between different network security enclaves. The Belkin Universal 2nd Gen Secure KVM Switches utilize optical data diodes and peripheral emulation on each channel to help prevent data leakage between computers while maintaining strict air-gap isolation, even when sharing peripherals. An 8th order elliptical audio filter protects against ultrasonic attacks.

Universal Video Compatibility With Combo Connector and Internal Conversion
DisplayPort/HDMI combo connectors on each input and output allow the same KVM to accommodate systems with DisplayPort, HDMI, and DVI video outputs and modern and legacy monitors, eliminating the need, cost, and uncertainties with external converters. This flexibility enables IT managers to deploy the same, secure KVM switch across their network and prolong the useful life of the KVM simply by matching the appropriate Belkin cable with each connected system and monitor. Cutting-edge video performance delivers up to 4K resolution and 60Hz refresh on each display.

Belkin KVM Remote Control With Integrated Keyboard Elevates the User Experience
The Universal 2nd Gen Secure KVMs are compatible with Belkin’s innovative KVM Remote Control with Integrated Keyboard. The remote control combines channel selection with a backlit mechanical keyboard that mimics the enclave color codes for each channel, minimizing operator errors. The ability to control the KVM via the remote combined with Belkin’s mounting options help enhance user experience and efficiency by decluttering the desk.

Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
USB connector type	USB Type-B
Mouse port type	USB
Video port type	HDMI/DisplayPort
Audio connections	Yes
DisplayPorts quantity	2
DisplayPort version	1.2
HDMI version	2.0
HDMI ports quantity	2
DC-in jack	Yes
Console ports	3.5mm headphone, DisplayPort, HDMI, RJ–45, USB A
Performance
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	3840 x 2160 pixels
Design
Product colour	Black
Rack mounting	Yes
Certification	FCC Class B UL CE RoHS ICES RCM
Housing material	Aluminum, Metal
Power
Input current	2.5 A
Power source	AC
External power adapter	Yes
Input voltage	100 - 240, 12 V
Video
HD type	4K Ultra HD
Video bandwidth	60 Hz
Maximum resolution	3840 x 2160 pixels
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	12.5" (317.5 mm)
Depth	6.4" (162.6 mm)
Height	3.6" (91.4 mm)
Weight	4.85 lbs (2.2 kg)
Packaging content
Cables included	AC
Manual	Yes
AC adapter included	Yes
Certificates
Certification	FCC Class B UL CE RoHS ICES RCM
Logistics data
Harmonized System (HS) code	85176200
