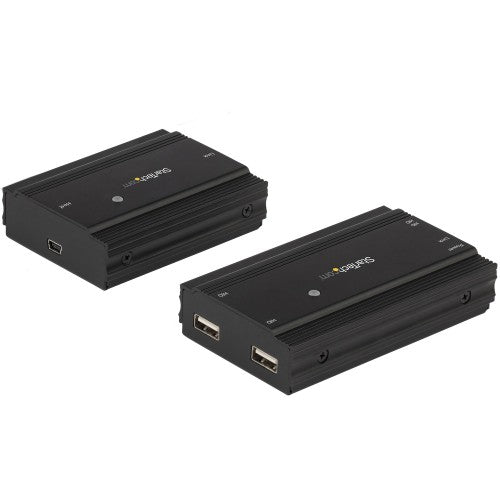

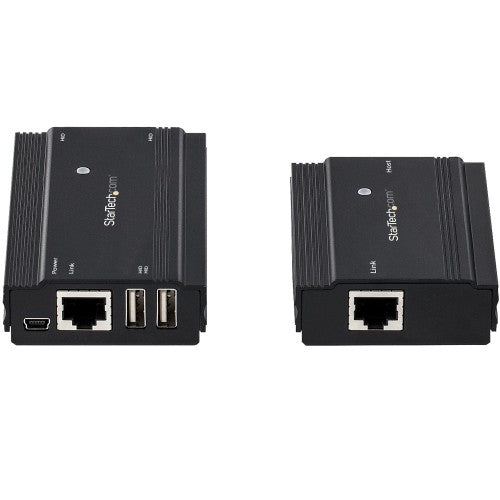

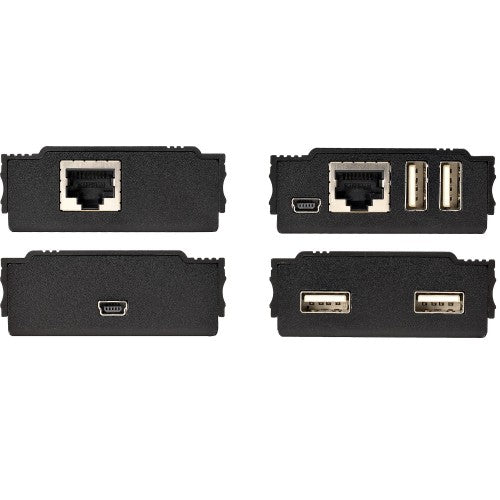

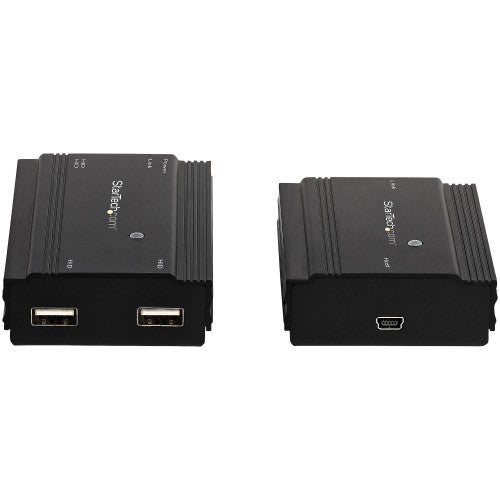

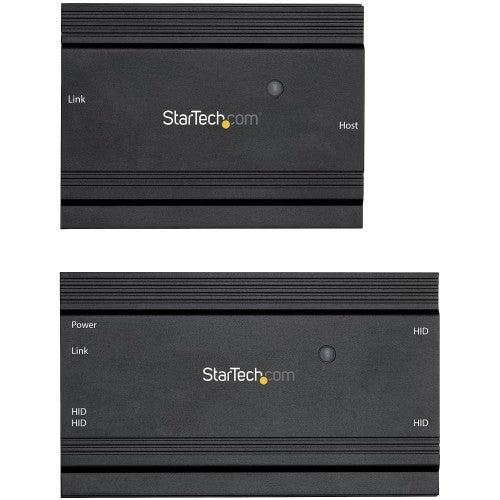

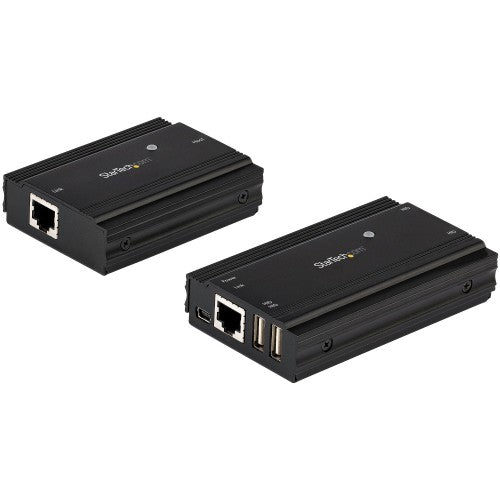

StarTech.com USB2004EXT100 console extender Console transmitter & receiver 480 Mbit/s
521.90 CAD
Skip to product information
Out of stock
StarTech.com USB2004EXT100 console extender Console transmitter & receiver 480 Mbit/s
Part number
USB2004EXT100
521.90 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.726 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- RELIABLE LONG-RANGE PERFORMANCE: Offers extension of 4x USB 2.0 devices up to 330ft (100 meters) over CAT5e/CAT6 RJ45 ethernet network cable with speeds up to 480Mbps; LEDs monitor Power & Link Status
- ROBUST CONSTRUCTION: Featuring an extruded aluminum & metal housing this USB 2.0 extender is ideal for high wear-and-tear, commercial settings; Remotely access USB printers, cameras, plotters, keyboard/mouse, displays & CCTV systems
- ACTIVE USB EXTENDER KIT: With the included power adapter, the receiver hub at remote end shares 10W of total power providing up to 5V, 500mA/2.5W of power per port, while the local transmitter is powered by the PC USB port
- PLUG-AND-PLAY: The extender features driverless installation and is compatible with all major operating systems including Windows, macOS, Linux; Backwards Compatible with USB 1.1 and USB 1.0 devices
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 4 Port USB extender hub is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
USB Extender Over CAT5e/CAT6/CAT7 | Rugged Enclosure | 2-Year Warranty
This USB 2.0 extender enables you to connect up to four USB 2.0 devices over distances of up to 330 feet (100 meters), over standard Cat5e/Cat6/Cat7 Ethernet LAN cabling.
Hi-Speed USB Performance
With data bandwidth of up to 480Mbps and no software installation required, the USB extender over Cat5e, Cat6, or Cat7 network cabling offers a fast, easy, and versatile solution for business or commercial applications with durable metal housing, an included surface-mounting bracket kit and simple plug-and-play installation.
Plus, the 330 ft. (100 m) USB extender provides up to the full 500 mA of power (with the use of an external power adapter at the remote end) allowing for greater compatibility with bus-powered USB devices.
Compatible with USB 2.0/1.1/1.0 Devices
Connecting low-speed peripherals or HID devices isn't a problem. This versatile USB over network extender is backward compatible with legacy USB 1.0/1.1 devices, so you can access up to four different types of USB devices from your remote location, far away from the host computer.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales
USB2004EXT100 is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
The StarTech.com Advantage
This USB 2.0 extender enables you to connect up to four USB 2.0 devices over distances of up to 330 feet (100 meters), over standard Cat5e/Cat6/Cat7 Ethernet LAN cabling.
Hi-Speed USB Performance
With data bandwidth of up to 480Mbps and no software installation required, the USB extender over Cat5e, Cat6, or Cat7 network cabling offers a fast, easy, and versatile solution for business or commercial applications with durable metal housing, an included surface-mounting bracket kit and simple plug-and-play installation.
Plus, the 330 ft. (100 m) USB extender provides up to the full 500 mA of power (with the use of an external power adapter at the remote end) allowing for greater compatibility with bus-powered USB devices.
Compatible with USB 2.0/1.1/1.0 Devices
Connecting low-speed peripherals or HID devices isn't a problem. This versatile USB over network extender is backward compatible with legacy USB 1.0/1.1 devices, so you can access up to four different types of USB devices from your remote location, far away from the host computer.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales
USB2004EXT100 is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.
The StarTech.com Advantage
| Technical details | |
|---|---|
| Type | Console transmitter & receiver |
| Rubber feet | Yes |
| Maximum transfer distance | 3937" (100 m) |
| LED indicators | Status |
| Housing material | Aluminum |
| Data transfer rate | 480 Mbit/s |
| Product colour | Black |
| Cable types supported | Cat5e, Cat6 |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | CE, RoHS |
| Ports & interfaces | |
| Mini-USB 2.0 ports quantity | 2 |
| RJ-45 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 4 |
| Weight & dimensions | |
| Width | 2.36" (60 mm) |
| Depth | 3.94" (100 mm) |
| Height | 0.866" (22 mm) |
| Weight | 5.04 oz (143 g) |
| Package width | 9.25" (235 mm) |
| Package depth | 6.02" (153 mm) |
| Package height | 2.56" (65 mm) |
| Package weight | 25.3 oz (716 g) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Colour | |
| Product colour | Black |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45), USB |
| AC adapter included | Yes |
| Power | |
| Power consumption (typical) | 10 W |
| Input voltage | 100 - 240 V |
| Output voltage | 5 V |
| Output current | 2 A |
| Logistics data | |
| Master (outer) case width | 16.1" (410 mm) |
| Master (outer) case length | 12.7" (323 mm) |
| Master (outer) case height | 10.8" (275 mm) |
| Products per master (outer) case | 12 pc(s) |
| Harmonized System (HS) code | 84733020 |
