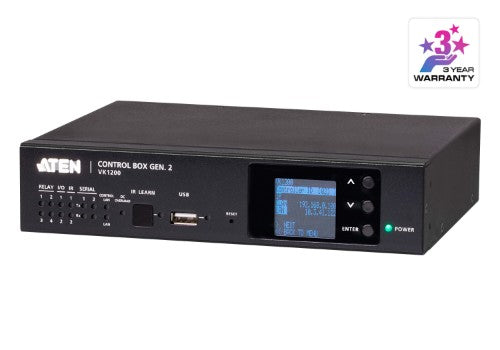

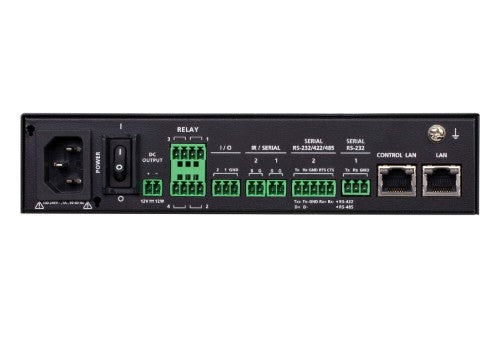

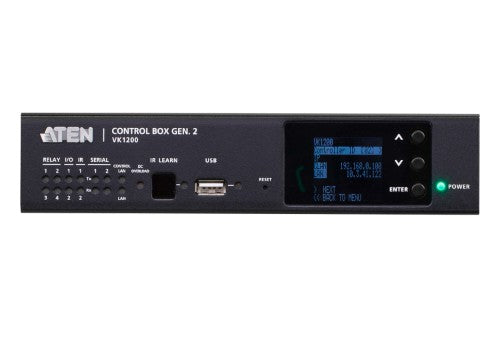

VK1200, ATEN’s second-generation Control Box, boasts the highest performance processor within the series. Equipped with a quad-core CPU and 1 GB memory, VK1200 provides real-time response and status updates and can process complex, high-loading events with customized GUI designs, as well as multiuser access control to connected devices. VK1200 features dual, isolated LAN ports – Control LAN and LAN. The Control LAN allows managed devices to be securely protected within a separate network, independent from the corporate network, for fulfilling high-security and stability demand. On the other hand, the LAN can be connected to ATEN Unizon, a centralized platform streamlining daily AV / IT management, which provides users with the convenience to monitor, troubleshoot, and maintain multiple systems all at once.

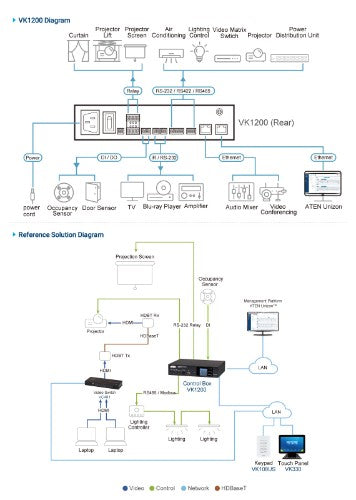

The VK1200 Control Box can be used to easily manage any room setting, and can be deployed into an existing installation by seamless integration with ATEN ProAV products, as well as nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK1200 is the perfect solution for managing mass device deployments especially in strict security settings with high performance requirements, such as government agencies, military facilities, corporate organizations, and healthcare institutions.

VK1200 is a part of ATEN’s Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user-defined GUIs from any mobile device, ATEN Keypad and Touch Panel.

Design
LED indicators	Yes
Product colour	Black
Performance
Internal memory	1024 MB
Flash memory	8000 MB
Display type	LCD
Product colour	Black
Protocols
DHCP server	Yes
Supported network protocols	ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Security
Security algorithms	SSH
Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (typical)	4.7 W
Output voltage	12 V
Output current	1 A
Input voltage	100-240 V
Input frequency	50-60 Hz
Weight & dimensions
Weight	2.71 lbs (1.23 kg)
Width	7.87" (200 mm)
Height	1.73" (44 mm)
Depth	6.46" (164.1 mm)
Packaging content
Cables included	AC
Manual	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Indication
LED indicators	Yes
Memory
Internal memory	1024 MB
Flash memory	8000 MB
Display
Display type	LCD
Display resolution	128 x 64 pixels
Display diagonal	1.6"
