HDMI Quad-Output Splitter Ideal for Digital Signage in Schools and Workplaces
This 4K transmitter/splitter is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

Extends a 4K A/V Transmission up to 230 ft....or Even Farther
The B127A-004-BH connects to B127A-Series receivers to extend 4K signals from an HDMI source to four HDMI displays up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding B127A-010-H signal repeaters or B127A-110-BH transceivers (each sold separately) to the application, you can extend the signal to each connected display up to 400 feet (121.9 meters) or 460 feet (140.2 meters), respectively.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color
The B127A-004-BH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with true uncompressed 7.1-channel digital audio and Dolby TrueHD. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This splitter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions
Say you have a brand new 4K/60 Hz HDTV in one room, but want to also connect your Blu-ray player or satellite box to an older 1080p TV in another room. The B127A-004-BH is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching, allowing each connected monitor to display video at its maximum resolution.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution and Cascading
To monitor the video signal being extended to the receiver, connect a 4K display to the splitter’s local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly. Add even more displays to an installation by connecting an additional B127A splitter unit (sold separately) to the port.

Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the connected receivers over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers where needed without worrying about finding a nearby AC outlet.

Plug-and-Play Operation for Quick Setup and Immediate Use
The splitter works right out of the package with no software required. Mounting hardware is included for installing it on a wall, pole or 19-inch rack. Connect the splitter to an HDMI source device with a user-supplied HDMI cable (such as P568- or P569-Series). Then, connect the splitter to B127A-Series remote receivers with user-supplied Cat6 cable (such as N202-Series).

TAA-Compliant for GSA Schedule Purchases
The B127A-004-BH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

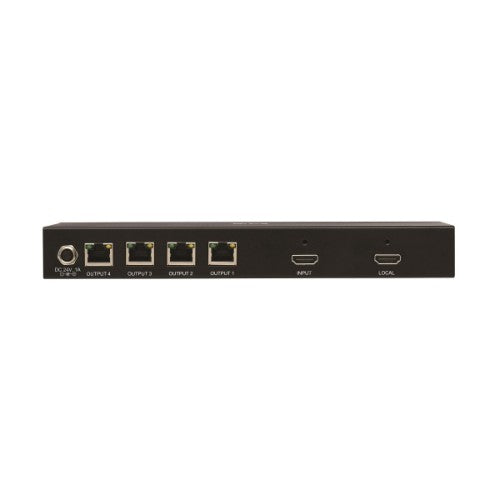

Ports & interfaces
Video ports quantity	2
Video port type	HDMI
Video out	4x RJ-45
HDMI version	2.0
Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes
Consumer Electronics Control (CEC) support	Yes
Cable types supported	Cat6
Cable length	54.3" (1.38 m)
Features
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Rack mounting	Yes
Maximum operating distance	2755.9" (70 m)

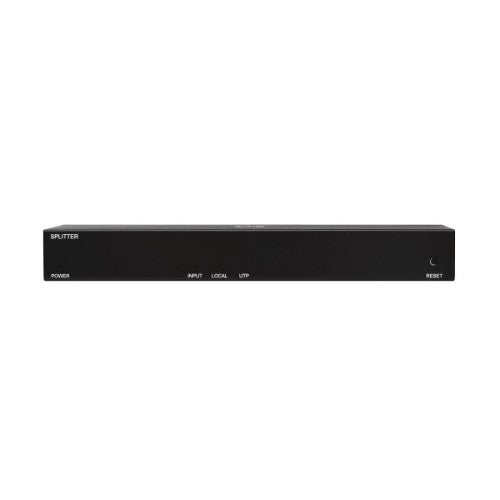

LED indicators	Yes
Housing material	Metal
Product colour	Black
Colour depth	36 bit
3D	Yes
Cable length	54.3" (1.38 m)
HD type	4K Ultra HD
HDCP version	1.4/2.2
Country of origin	Taiwan
Network
Cable types supported	Cat6
Power
Input current	0.6 A
Output voltage	24 V
Output current	1 A
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Weight & dimensions
Weight	22.9 oz (650 g)
Width	9.25" (235 mm)
Depth	3.94" (100 mm)
Height	1.17" (29.7 mm)
Package type	Box
Package depth	6.46" (164.1 mm)
Package width	13.9" (352 mm)
Package height	2.17" (55.1 mm)
Package weight	2.27 lbs (1.03 kg)
Packaging data
Package type	Box
Package depth	6.46" (164.1 mm)
Package width	13.9" (352 mm)
Package height	2.17" (55.1 mm)
Package weight	2.27 lbs (1.03 kg)
Quantity per pack	1 pc(s)

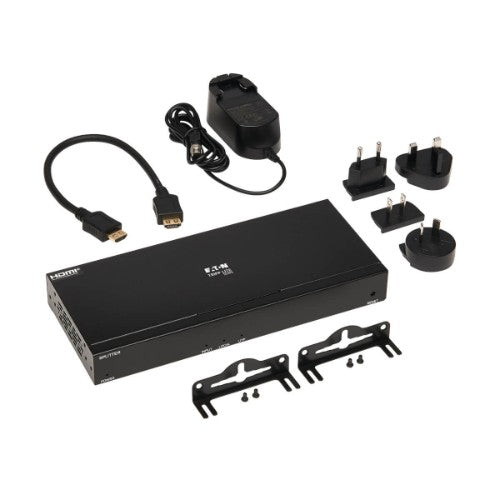

Packaging content
Manual	Yes
Cables included	HDMI
AC adapter included	Yes
Package type	Box
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Sustainability
Sustainability compliance	Yes
Video
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Colour depth	36 bit
3D	Yes
Colour
Product colour	Black
Indication
LED indicators	Yes
Technical details
Video out	4x RJ-45
Rack mounting	Yes
Maximum operating distance	2755.9" (70 m)
Housing material	Metal
HDMI version	2.0
Sustainability compliance	Yes
Compliance certificates	CE, REACH, RoHS
Logistics data
Quantity per pack	1 pc(s)
Master (outer) case width	23.1" (586 mm)
Master (outer) case length	14.8" (374.9 mm)
Master (outer) case height	7.76" (197.1 mm)
Master (outer) case gross weight	24.5 lbs (11.1 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332263374
Harmonized System (HS) code	85176990
Country of origin	Taiwan
