Axis 02315-001 PoE adapter Gigabit Ethernet 1000 V
110.08 CAD
Skip to product information
In stock
Axis 02315-001 PoE adapter Gigabit Ethernet 1000 V
Part number
02315-001
110.08 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.08 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Can be wall or DIN-rail mounted; Protects up to 10 kV surge; Supports IEEE 802.3bt up to 95 W; Supports data rates of up to 1 Gbps; Tested with Axis devices

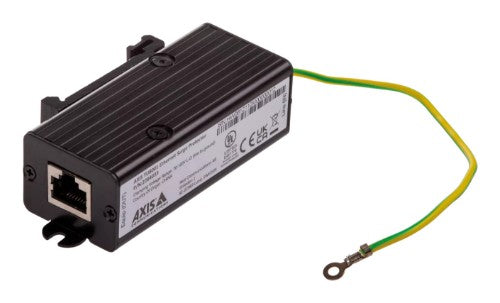

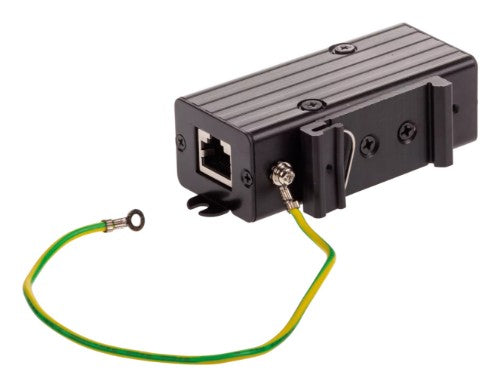

AXIS TU8001 Ethernet Surge Protector helps reduce system downtime, service and maintenance by shielding PoE devices against transient voltage spikes in the Ethernet cable. It is a compact, high-quality product validated to work seamlessly with Axis devices. AXIS TU8001 can be installed close to a PoE switch located indoors or in an outdoor electrical enclosure cabinet adjacent to a network camera or another device. Placing it in an enclosure, you get less exposed wiring, simpler troubleshooting of the whole system and less hardware visible on the pole. The product can be easily mounted on a wall or on a DIN rail.
| Network | |
|---|---|
| Networking standards | IEEE 802.3bt |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Wall mountable | Yes |
| Surge protection | Yes |
| Product colour | Black |
| Networking standards | IEEE 802.3bt |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-45 input ports | 1 |
| Power | |
| Power consumption (max) | 95 W |
| Power over Ethernet (PoE) voltage | 1000 V |
| Input current | 2 A |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 2.82 oz (80 g) |
| Width | 1.06" (27 mm) |
| Depth | 3.7" (94 mm) |
| Height | 1.38" (35 mm) |
| Technical details | |
| Harmonized System (HS) code | 85044095 |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
