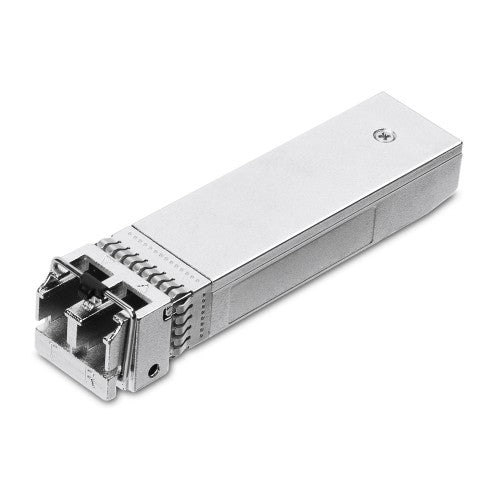

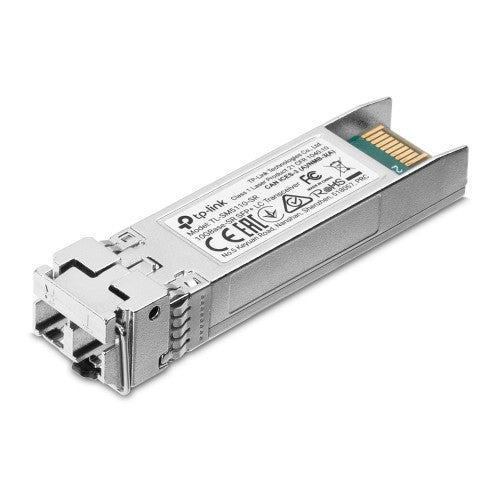

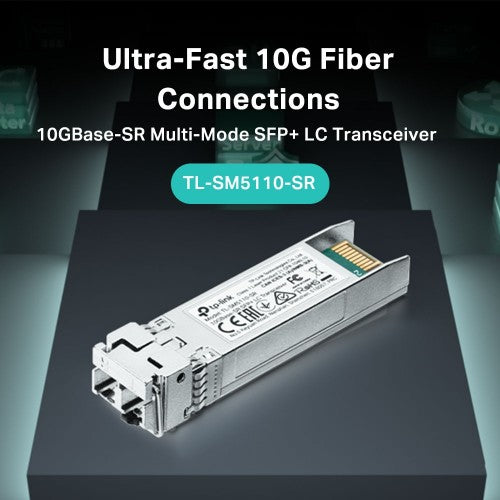

TP-Link TL-SM5110-SR network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
33.89 CAD
Skip to product information
Out of stock
TP-Link TL-SM5110-SR network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm
Part number
TL-SM5110-SR
33.89 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.064 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Multi-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)

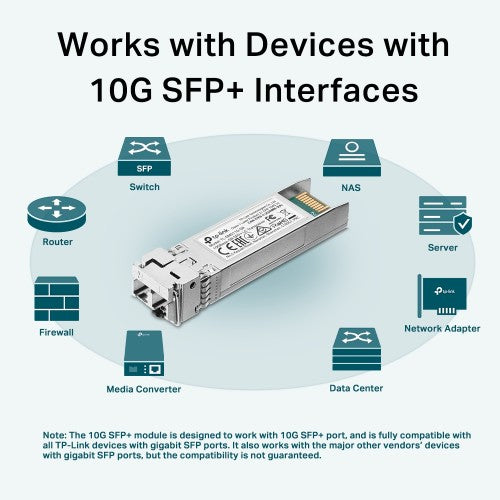

- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more

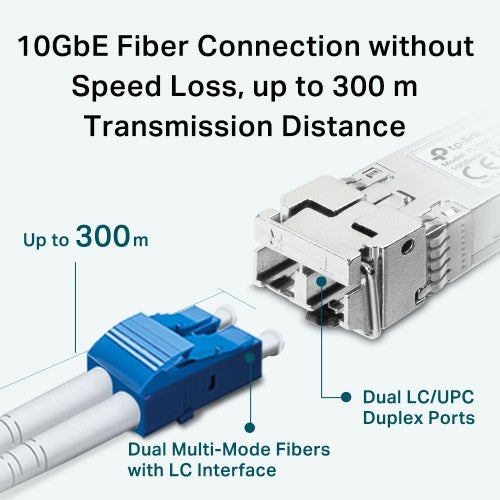

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| Fiber optic connector | LC (UPC) |
| Performance | |
| Product colour | Silver |
| Hot-swap | Yes |
| SFP transceiver type | Fiber optic |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC (UPC) |
| Maximum transfer distance | 11811" (300 m) |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Multi-mode fiber (MMF) supported | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | FCC, CE |
| Power | |
| Input voltage | 3.3 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 0.571" (14.5 mm) |
| Depth | 2.41" (61.3 mm) |
| Height | 0.48" (12.2 mm) |
| Package width | 3.21" (81.5 mm) |
| Package depth | 4.82" (122.5 mm) |
| Package height | 1.52" (38.5 mm) |
| Package weight | 2.12 oz (60 g) |
| Packaging data | |
| Package width | 3.21" (81.5 mm) |
| Package depth | 4.82" (122.5 mm) |
| Package height | 1.52" (38.5 mm) |
| Package weight | 2.12 oz (60 g) |
| Certificates | |
| Certification | FCC, CE |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
