The CyberPower PDU41105 is a 0U rackmount switched power distribution unit or PDU that has 24 outlets and provides 240V 30A output. This PDU distributes power to 21 IEC-320 C13 outlets and 3 IEC-320 C19 outlet receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. Using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, the user can manage the switched outlet receptacles individually or collectively over the network. In addition, the user can manage the switched outlet receptacles locally by using the LCD controls. Outlets can be turned on, turned off, or cycled on demand. The user can also schedule outlets to address a number of needs: remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.
Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
CyberPower Management Console
CyberPower Management Console is a hardware interface built into switched PDUs. Users can remotely switch individual PDU.
Remote and Local Monitoring
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.
Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.
Upgradeable Firmware
Downloadable firmware updates that provide improvements to programs that run the PDU.
Power Control Display
Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Twist-Lock Plug
The user can secure the plug into an outlet by twisting and locking into place to prevent accidental disconnection.
Long Input Power Cord
Allows the user to place the PDU where it’s needed because the power cord reaches distant power sources.
Cord Retention Tray
Secures power cords. Keeps cord organized and accessible by securing power cord. The cord-retention tray also helps cords stay plugged in.
Configurable Mounting Brackets
Allows for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

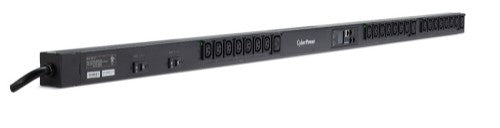

CyberPower PDU41105 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Part number
PDU41105
$1,502.77 CAD
24 Outlets, 200-240V 50/60Hz, 30A, 55.8 x 47.7 x 1664.9mm, 7.89kg, Black
Description
Product OverviewThe CyberPower PDU41105 is a 0U rackmount switched power distribution unit or PDU that has 24 outlets and provides 240V 30A output. This PDU distributes power to 21 IEC-320 C13 outlets and 3 IEC-320 C19 outlet receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. Using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, the user can manage the switched outlet receptacles individually or collectively over the network. In addition, the user can manage the switched outlet receptacles locally by using the LCD controls. Outlets can be turned on, turned off, or cycled on demand. The user can also schedule outlets to address a number of needs: remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.
Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
CyberPower Management Console
CyberPower Management Console is a hardware interface built into switched PDUs. Users can remotely switch individual PDU.
Remote and Local Monitoring
The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.
Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.
Upgradeable Firmware
Downloadable firmware updates that provide improvements to programs that run the PDU.
Power Control Display
Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Twist-Lock Plug
The user can secure the plug into an outlet by twisting and locking into place to prevent accidental disconnection.
Long Input Power Cord
Allows the user to place the PDU where it’s needed because the power cord reaches distant power sources.
Cord Retention Tray
Secures power cords. Keeps cord organized and accessible by securing power cord. The cord-retention tray also helps cords stay plugged in.
Configurable Mounting Brackets
Allows for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Specifications
| Design | |
|---|---|
| PDU types | Monitored, Switched |
| Type | Single-phase |
| Display | LCD |
| Product colour | Black |
| Certification | CE, FCC |
| Rack capacity | 0U |
| Housing material | Steel |
| Ports & interfaces | |
| Power plug | NEMA L6-30P |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| LED indicators | Yes |
| Cable length | 129.9" (3.3 m) |
| Certification | CE, FCC |
| Management features | |
| Supported network protocols | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, Windows AD |
| Firmware upgradeable via | USB |
| Firmware upgradeable | Yes |
| Ergonomics | |
| Display | LCD |
| LED indicators | Yes |
| Cable length | 129.9" (3.3 m) |
| Power | |
| Nominal input voltage | 200-240 V |
| Maximum current | 30 A |
| Output voltage | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.2 x 1.88 x 65.5" (55.8 x 47.7 x 1664.9 mm) |
| Weight | 17.4 lbs (7.89 kg) |
| Width | 2.2" (55.8 mm) |
| Depth | 1.88" (47.7 mm) |
| Height | 65.5" (1664.9 mm) |
| Package width | 7.28" (184.9 mm) |
| Package depth | 4.57" (116 mm) |
| Package height | 74.6" (1895 mm) |
| Package weight | 18.8 lbs (8.55 kg) |
| Packaging data | |
| Package width | 7.28" (184.9 mm) |
| Package depth | 4.57" (116 mm) |
| Package height | 74.6" (1895 mm) |
| Package weight | 18.8 lbs (8.55 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 95 °C |
| Operating altitude | 0 - 137795.3" (0 - 3500 m) |
| Technical details | |
| Compliance certificates | RoHS |
