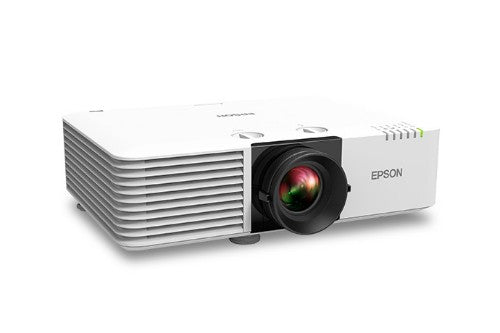

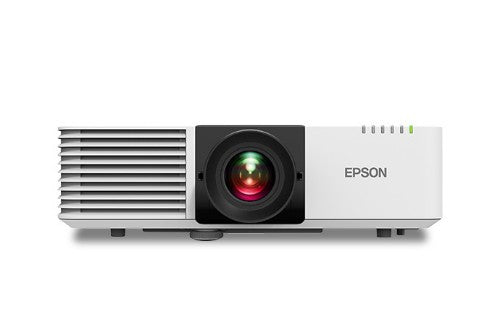

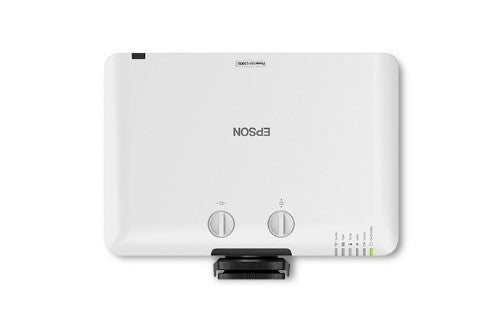

Share bright, easy-to-read displays for meetings, lectures and more with the PowerLite L520U long-throw laser projector. Offering an incredible 5,200 lumens of brightness1, the PowerLite L520U delivers large,true-to-life, Full HD WUXGA images using advanced 3LCD technology. Ideal for business, education and beyond, this versatile projector displays up to 500" diagonal and provides an array of features for engaging, impactful presentations, including split screen capability2 for side-by-side viewing and easy wireless sharing from laptops and smart devices3. A convenient, easy-to-use solution, the PowerLite L520U features a virtually maintenance-free 20,000-hour laser light source4, plus a variety of advanced, built-in tools and software for easy, streamlined installation.


3-chip 3LCD image quality
With up to 5,200 lumens of equal Color and White Brightness1 for vibrant, rich color


Full HD WUXGA support
Native WUXGA 1920 x 1200 resolution for true-to-life images; accepts 4K signal

Breakthrough laser technology
Features a virtually maintenance-free 20,000-hour laser light source

Flexible projection
Lightweight, easy-to-install design; can display images from 50" to 500" diagonal in 16:10 or ultra wide 16:6 to cover a large wall

Simplified installation
Features 360-degree flexibility, 1.6x optical zoom, e-zoom and geometric correction tools such as horizontal and vertical keystone, edge blending, arc correction, Quick Corner® and more

Optional wireless networking
Display from PC, Mac®, Chromebook™, iPhone®, iPad® and Android™ mobile devices3; connect with Miracast® through optional wireless LAN

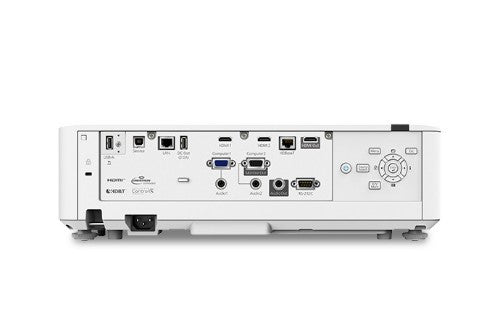

- Variety of connectivity options — HDBaseT, HDMI®, VGA, RJ-45, RS-232 and control management tools
- Remarkable sharpness and detail — with up to 2,500,000:1 dynamic contrast ratio
- Custom brightness and constant brightness modes — to maximize light source life and provide a consistent brightness level
- Remote management and control tools — for easy installation and operation

Projector
Projector brightness	5200 ANSI lumens
Projection technology	LCOS
Projector native resolution	WUXGA (1920x1200)
Screen size compatibility	50 - 500"
Native aspect ratio	16:10
Supported aspect ratios	16:10
Contrast ratio (typical)	2500000:1
Number of colours	1.07 billion colors
Vertical scan range	23.98 - 60 Hz
Horizontal scan range	15 - 135 kHz
Uniformity	86%
Matrix size	0.67"
Keystone correction, vertical	-30 - 30°
Keystone correction, horizontal	-30 - 30°
Light source
Light source type	Laser/LED hybrid
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Zoom capability	Yes
Focus	Manual
Focal length range	20 - 37.8 mm
Horizontal lens shift range	-20 - 20%
Vertical lens shift range	-50 - 50%
Throw ratio	1.35 - 2.20
Zoom type	Manual
Video
Full HD	Yes
Ports & interfaces
VGA (D-Sub) ports quantity	2
HDMI ports quantity	3
HDMI connector type	Full-size
Audio (L/R) in	2
Audio (L/R) out	1
Serial interface type	RS-232C
PC in (D-Sub)	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN (RJ-45) ports	1
Features
Noise level	31 dB
Noise level (economic mode)	23 dB
Screen mirroring	Yes
Multimedia
Built-in speaker(s)	Yes
RMS rated power	10 W
Design
Market positioning	Business
Product colour	White
Product type	Standard throw projector
Cable lock slot type	Kensington
Cable lock slot	Yes
Power
Power source	AC
Power consumption (typical)	301 W
Power consumption (standby)	2 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (economy mode)	232 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Weight & dimensions
Width	17.3" (439.9 mm)
Depth	12" (304 mm)
Height	4.76" (121 mm)
Weight	18.1 lbs (8.21 kg)
Packaging content
Remote control included	Yes
Cables included	AC, HDMI
Batteries included	Yes
Technical details
Sustainability compliance	Yes
Sustainability certificates	Good for recycling
Compliance certificates	RoHS
