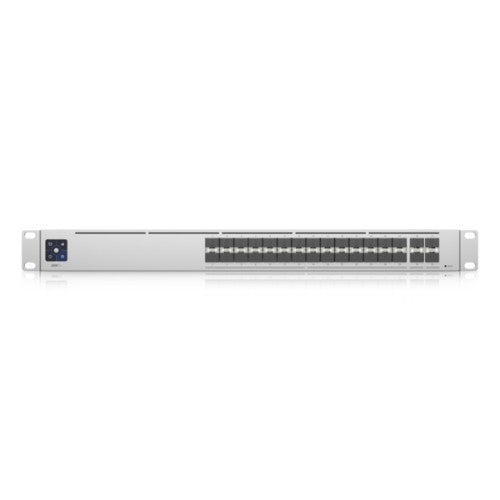

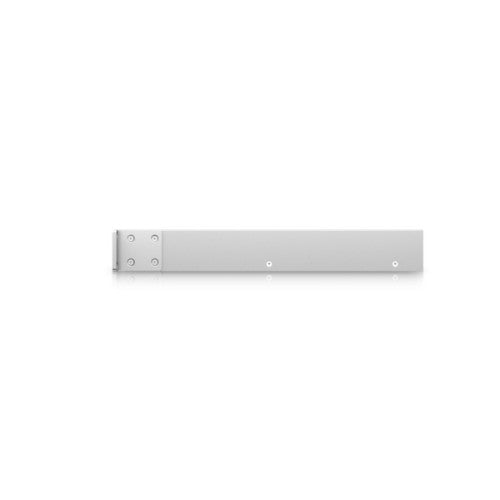

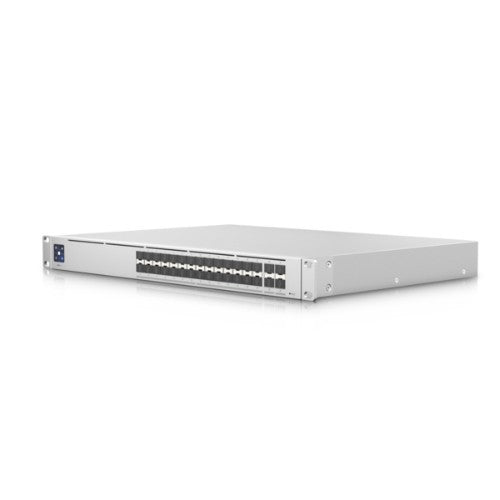

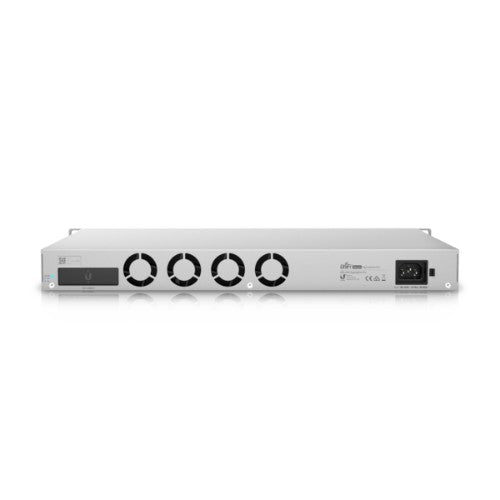

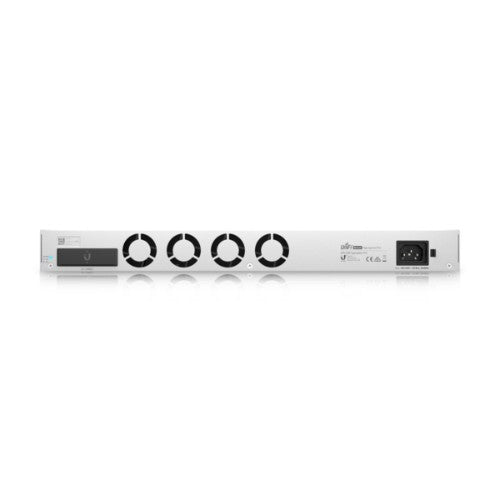

Ubiquiti UniFi Switch Pro Aggregation Managed L3 Gray
Part number
USW-PRO-AGGREGATION
$1,189.98 CAD
Fully Managed Layer 3 Switch, with (4) 25G SFP28 Ports and (28) 10G SFP+ Ports
Key Features
- (28) 10Gbps SFP+
- (4) 25Gbps SFP28
- 760 Gbps switching capacity
- (1) 1.3” Touchscreen with AR switch management
- (1) Backup 12V DC input connector, SmartPower RPS
Description
Featuring a 1.3” touchscreen, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. The USW-Pro-Aggregation is managed through the UniFi controller and mobile App, allowing you to easily build, scale and monitor your enterprise networks.Specifications
| Management features | |
|---|---|
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| SFP+ module slots quantity | 28 |
| Power connector | DC-in jack |
| SFP28 ports quantity | 4 |
| Network | |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 760 Gbit/s |
| Throughput | 380 Mpps |
| Static route | Yes |
| Forwarding rate | 565.44 Mpps |
| Security | |
| DHCP features | DHCP server |
| Design | |
| Product colour | Gray |
| LED indicators | Yes |
| Housing material | Steel |
| Number of fans | 4 fan(s) |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 100 W |
| Input current | 2 A |
| DC input voltage | 11.5 V |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 17.4" (442 mm) |
| Depth | 12.8" (325 mm) |
| Height | 1.73" (44 mm) |
| Weight | 10.1 lbs (4.6 kg) |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
