In stock
-Reduces equipment cost by delivering data and power over existing network cables.
-4 PoE and 4 standard 10/100Mbps ports.
-Flow Control for Full-Duplex mode.
-IEEE 802.3af Power over Ethernet (PoE) Standard Compliant.
-8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports.
-Built-in 4 PoE Ports (Port 1 ~ Port 4).
-Supports PoE Power Maximum 15.4 watts for each POE port.
-Supports PoE Powered Device (PD) classification identify.
-Full Wire-Speed Non-Blocking Reception and Transmission.
-Store and Forward Switching Method.
-96Kbytes RAM Data Buffer and 1K entries MAC Address Table.
-Extensive Diagnostic LED´s on the Front Panel.
-IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode.
-5-year limited warranty.

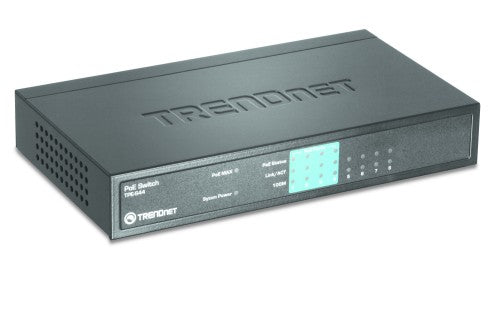

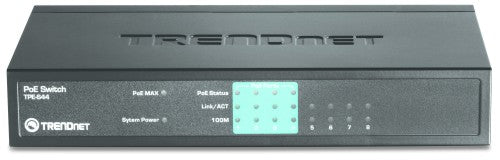

Trendnet TPE-S44 network switch Unmanaged Power over Ethernet (PoE) Blue
Part number
TPE-S44
$81.11 CAD
8-Port 10/100Mbps PoE Switch
Description
TPE-S44 8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure.-Reduces equipment cost by delivering data and power over existing network cables.
-4 PoE and 4 standard 10/100Mbps ports.
-Flow Control for Full-Duplex mode.
-IEEE 802.3af Power over Ethernet (PoE) Standard Compliant.
-8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports.
-Built-in 4 PoE Ports (Port 1 ~ Port 4).
-Supports PoE Power Maximum 15.4 watts for each POE port.
-Supports PoE Powered Device (PD) classification identify.
-Full Wire-Speed Non-Blocking Reception and Transmission.
-Store and Forward Switching Method.
-96Kbytes RAM Data Buffer and 1K entries MAC Address Table.
-Extensive Diagnostic LED´s on the Front Panel.
-IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode.
-5-year limited warranty.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3af |
| Full duplex | Yes |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Supported data transfer rates | 10/100 Mbps |
| Maximum data transfer rate | 0.1 Gbit/s |
| Protocols | |
| Supported protocols | CSMA/CD |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Blue |
| Certification | FCC, CE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Dimensions (WxDxH) | 6.73 x 3.86 x 1.14" (171 x 98 x 29 mm) |
| Connectivity technology | Wired |
| Power requirements | 48V DC, 0.8A |
| Networking features | Ethernet, Fast Ethernet |
| Connectivity LEDs | Yes |
| Supported protocols | CSMA/CD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Weight | 15.2 oz (430 g) |
| Performance | |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power connector | DC-in jack |
| Certificates | |
| Certification | FCC, CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
