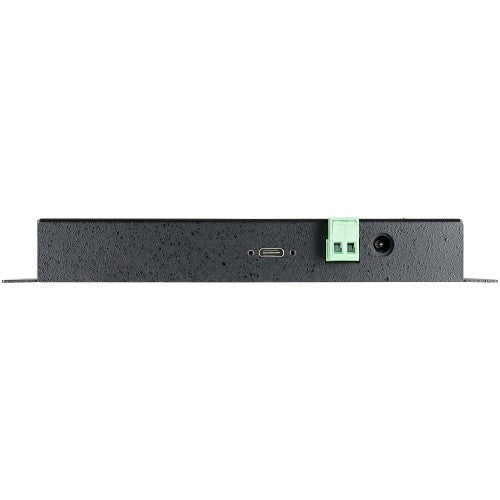

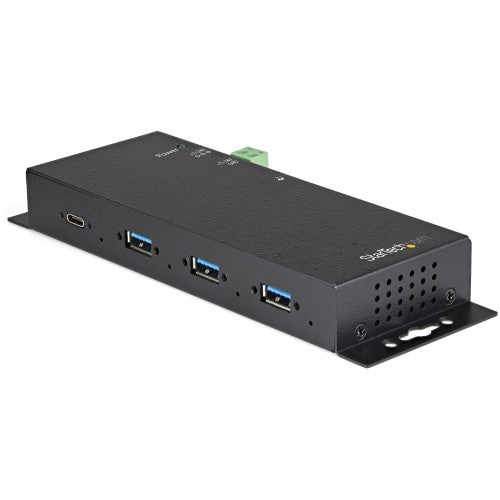

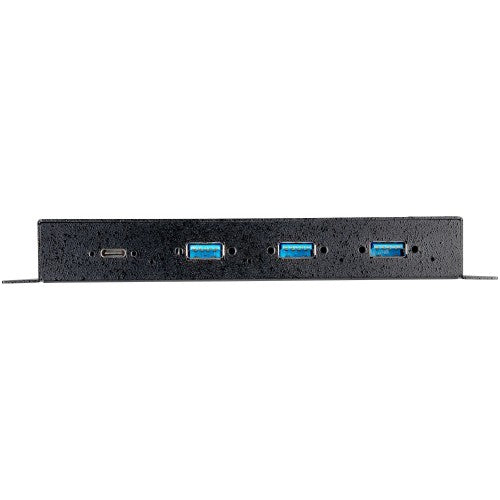

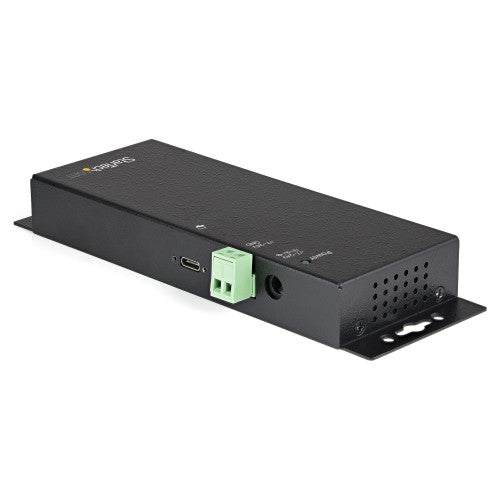

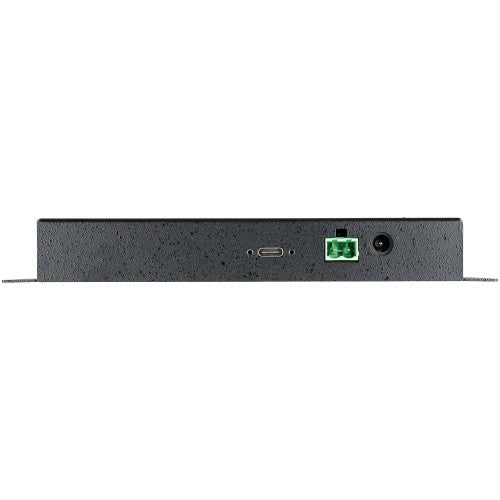

Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking Ports

This 4-Port industrial USB hub enables you to connect four SuperSpeed USB 3.2 Gen 2 (10 Gbps) peripherals to your USB-A or USB-C computer. The hub features three USB-A and one USB-C peripheral ports, each with a screw-lock connector, and a metal industrial housing ideal for commercial environments.

Expands the Connectivity of Your Computer for Industrial Applications

With this USB-C hub you can connect three USB-A devices, and one USB-C device, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).

Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.1 Gen 2 (10 Gbps), USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 (5 Gbps), and USB 3.0 (5 Gbps).

Powers and Charges Your Connected Devices

The USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.

Ideal for Use in Industrial Environments

This USB hub has a rugged-metal enclosure with built-in mounting ears that enable you to mount it to any wall or surface. The hub features 15kV Air and 8kV Contact electrostatic discharge protection, with 350W surge protection. Each port on the Hub has a screw lock, avoiding the possibility of accidental cable disconnection and a 3.3 ft (1m) USB-C & USB-A host cables is included that features a locking screw.

Wide Device Compatibility

The USB hub is OS independent ensuring support on a wide range of platforms including Windows, macOS, Linux, iPadOS, Chrome OS and Android.

HB31C3A1CME is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.

The StarTech.com Advantage

Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports quantity	4
Hub interfaces	USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Terminal block port	Yes
Features
Data transfer rate	10000 Mbit/s
Surge protection	Yes
LED indicators	Link, Power
Product colour	Black
Housing material	Steel
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Network
UASP support	Yes
Power
Power consumption (typical)	36 W
Input voltage	100 - 240 V
Input current	1 A
Output voltage	12 V
Output current	3 A
Power plug type	Type M
Weight & dimensions
Width	2.35" (59.6 mm)
Depth	5.98" (152 mm)
Height	0.925" (23.5 mm)
Weight	9.91 oz (281 g)
Package width	5.87" (149 mm)
Package depth	11.4" (290 mm)
Package height	2.76" (70 mm)
Package weight	2.65 lbs (1.2 kg)
Packaging data
Package width	5.87" (149 mm)
Package depth	11.4" (290 mm)
Package height	2.76" (70 mm)
Package weight	2.65 lbs (1.2 kg)
Quantity per pack	1 pc(s)
Performance
Data transfer rate	10000 Mbit/s
Surge protection	Yes
Harmonized System (HS) code	84719000
Packaging content
Included power plug types	ANZ, EU, JP, UK, US
Terminal block included	Yes
Manual	Yes
Cables included	USB Type-A to USB Type-C, USB Type-C to USB Type-C
Design
LED indicators	Link, Power
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	0 - 85%
Logistics data
Master (outer) case width	15.4" (390 mm)
Master (outer) case length	20.3" (515 mm)
Master (outer) case height	12.3" (313 mm)
Products per master (outer) case	14 pc(s)
Harmonized System (HS) code	84719000
Technical details
Compliance certificates	CE, RoHS
Other features
Chipset	VIA/VLI - VL822
