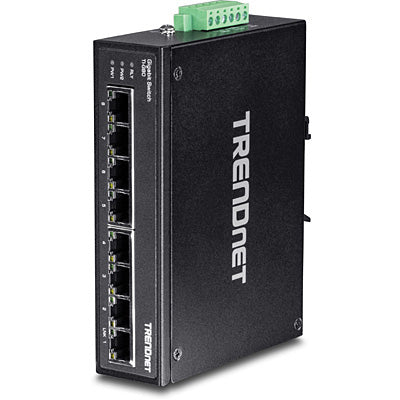

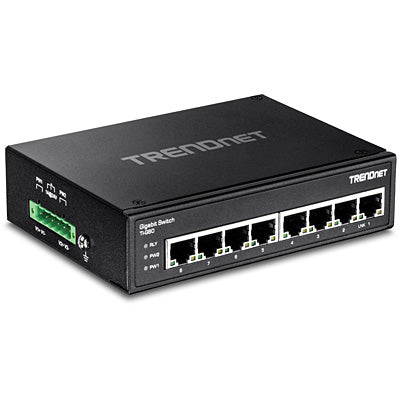

Trendnet TI-G80 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Part number
TI-G80
$167.46 CAD
8-Port Hardened Industrial Gigabit DIN-Rail Switch
Key Features
- 8 x Gigabit Ethernet ports
- 16 Gbps switching capacity
- Hardened IP30 rated metal switch

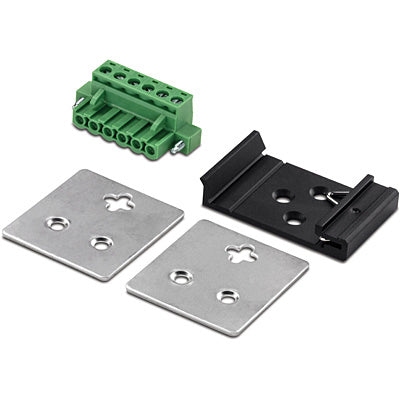

- Includes DIN-rail and wall mounts
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- NDAA / TAA compliant
Description
TRENDnet’s TI-G80 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit ports and a 16 Gbps switching capacity. Dual redundant power inputs (power adapter sold separately: TI-M6024) and a power failure alarm output trigger support zero downtime applications.Specifications
| Management features | |
|---|---|
| Switch layer | L2 |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Wall mountable | Yes |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Certification | FCC CE |
| Performance | |
| Buffer size | 1024 KB |
| Mean time between failures (MTBF) | 510304 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 5 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Power requirements | 12 - 56 VDC |
| Weight & dimensions | |
| Width | 5.63" (143 mm) |
| Depth | 4.09" (104 mm) |
| Height | 1.42" (36 mm) |
| Weight | 18.1 oz (512 g) |
| Packaging content | |
| Quick start guide | Yes |
| Wall mounting kit | Yes |
| Terminal block included | Yes |
| Packaging data | |
| Wall mounting kit | Yes |
| Terminal block included | Yes |
| Quick start guide | Yes |
| Certificates | |
| Certification | FCC CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
