In stock
Pre-configured for out-of-the-box use
NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

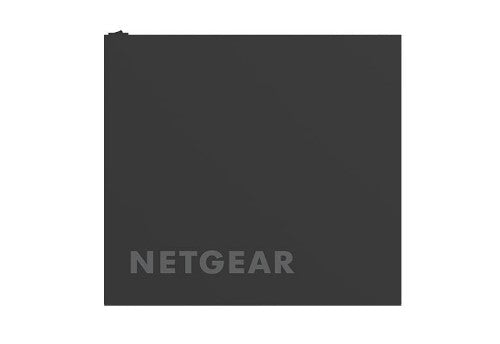

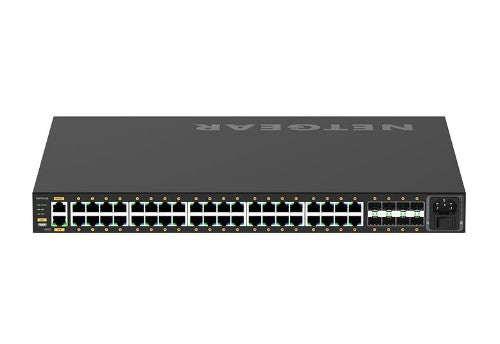

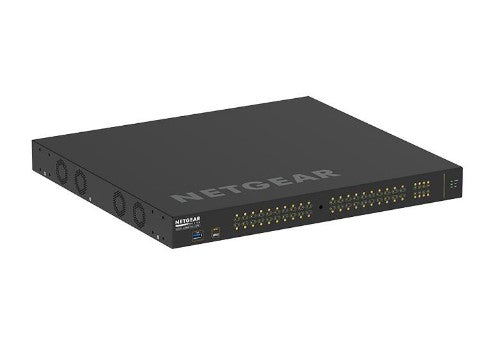

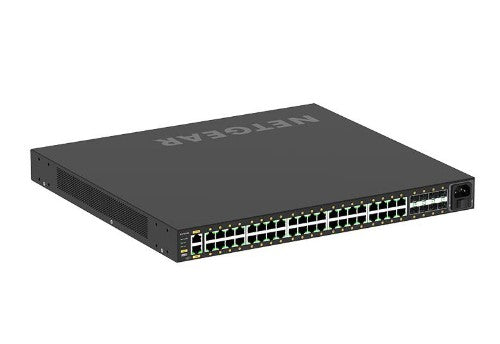

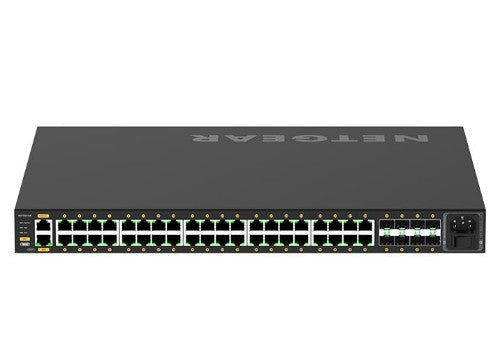

NETGEAR GSM4248PX Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
NETGEAR GSM4248PX Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Part number
GSM4248PX-100NAS
$3,980.52 CAD
AV Line M4250-40G8XF-PoE+ (GSM4248PX) 40x1G PoE+ 960W and 8xSFP+ Managed Switch
Description
Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!Pre-configured for out-of-the-box use
NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch layer | L2/L3/L4 |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Network | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1Qav, IEEE 802.1ak, IEEE 802.1as, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| 10G support | Yes |
| Virtual LAN features | Private VLAN |
| Virtual LAN features | |
| Number of VLANs | 4000 |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Number of VLANs | 4000 |
| MAC address table | 16000 entries |
| Switching capacity | 240 Gbit/s |
| Jumbo frames | 12000 |
| Throughput | 178.56 Mpps |
| Latency (1 Gbps) | 2.78 µs |
| Latency (10 Gbps) | 0.73 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 32 MB |
| Performance | |
| Packet buffer memory | 32 MB |
| Noise level | 69 dB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 40 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 8 |
| Console port | RJ-45/USB Type-C |
| Security | |
| Security algorithms | SNMP |
| IGMP snooping | Yes |
| DHCP features | DHCP relay, DHCP server, DHCPv6 server |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Form factor | 1U |
| LED indicators | Yes |
| Power | |
| Power source | PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 40 |
| Total Power over Ethernet (PoE) budget | 960 W |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 17.3" (440 mm) |
| Height | 1.7" (43.2 mm) |
| Weight | 13.9 lbs (6.31 kg) |
| Packaging data | |
| Rack mount kit | Yes |
| User guide | Yes |
| Packaging content | |
| Rack mount kit | Yes |
| User guide | Yes |
