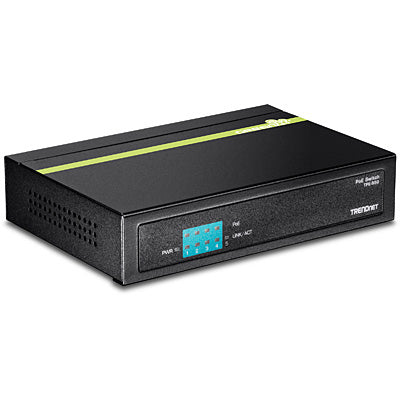

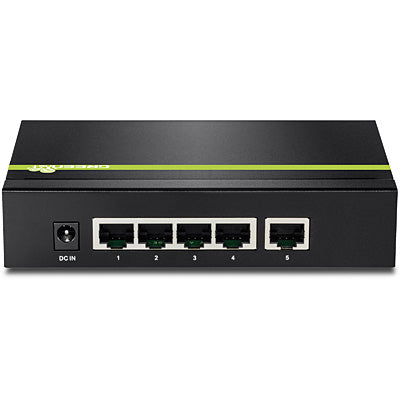

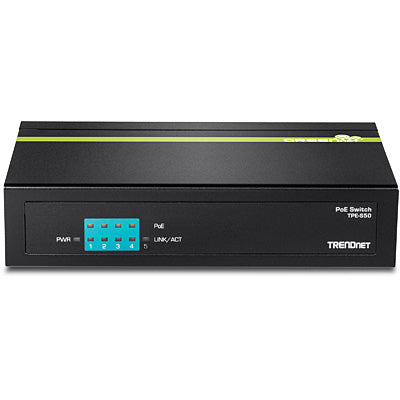

Trendnet TPE-S50 network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Part number
TPE-S50
$65.81 CAD
6-Port Fast Ethernet PoE+ Switch
Key Features
- Easy installation
- 4 x Fast Ethernet PoE+ ports and 2 x Fast Ethernet ports
- 1.2Gbps switching capacity
- 60W PoE budget
- Wall mountable design
- Sturdy metal switch
- Use with TRENDnet's PoE splitter to network and power non-PoE devices
- NDAA compliant
Description
The 5-Port 10/100 Mbps PoE Switch, model TPE-S50, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. The TPE-S50 offers four 10/100 Mbps PoE Ethernet ports and one 10/100 Mbps Ethernet port. It supports PoE (802.3af) devices with a 31 Watt power budget. Plug and Play this sturdy metal switch for reliable high speed PoE networking.Specifications
| Management features | |
|---|---|
| Switch layer | L2 |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Flow control support | Yes |
| 10G support | No |
| Data transmission | |
| MAC address table | 1024 entries |
| Switching capacity | 1 Gbit/s |
| Packet forwarding rate (100 Mbps) | 744000 pps |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | FCC, CE |
| Performance | |
| Plug and Play | Yes |
| Buffer size | 56 KB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Output current | 0.75 A |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 48 V |
| Power consumption (max) | 36 W |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 31 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 5.55" (141 mm) |
| Depth | 3.74" (95 mm) |
| Height | 1.18" (30 mm) |
| Weight | 11.9 oz (337 g) |
| Packaging content | |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Certificates | |
| Certification | FCC, CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
