Trendnet TI-S12048 v1.0R network switch component Power supply
153.44 CAD
Skip to product information
Out of stock

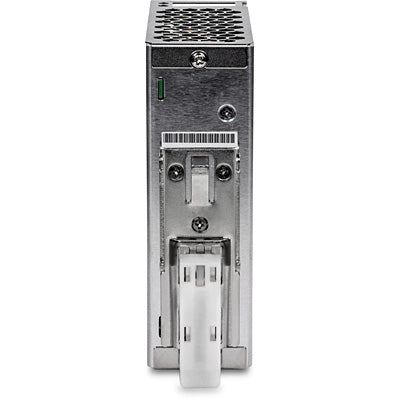

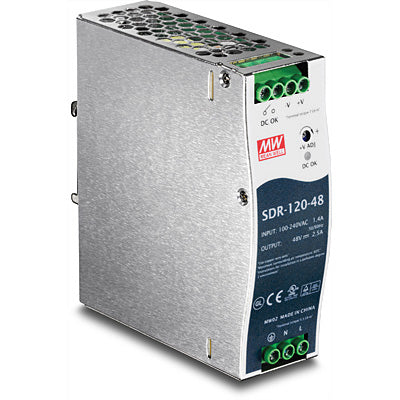

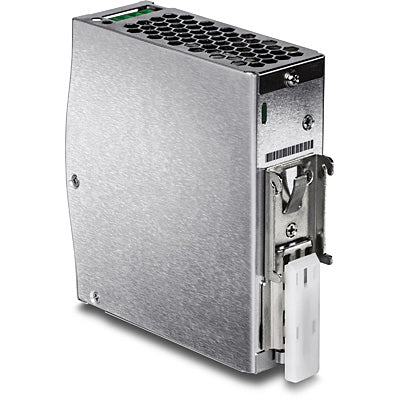

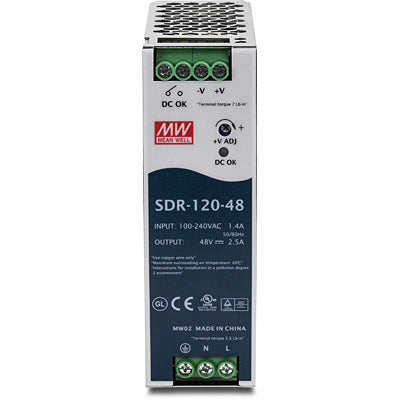

Trendnet TI-S12048 v1.0R network switch component Power supply
Part number
TI-S12048
153.44 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.67 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Industrial power supply with integrated DIN-rail mount
- Provides up to 120 Watts of power (48 V, 2.5 A)
- Built-in active PFC (PF > 0.93)
- Short circuit/overload/over voltage/over temperature protection
- High efficiency (91%) design
- UL 508 approved
- 100 % full load burn-in test
- Extreme -25 to 70 °C (-13 to 158 °F) operating temperature range
- NDAA / TAA compliant
TRENDnet’s high efficiency 120 W Single Output Industrial DIN-Rail Power Supply, model TI-S12048 (Mean Well SDR-120-48), supplies up to 120 Watts (48 V, 2.5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection.
120 Watt Power
Provides up to 120 Watts (48 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points
Active PFC
The built-in active Power Factor Controller (PFC, PF > 0.93) helps eliminate unusable reactive power
Overload Protection
Overload/short circuit/over voltage/over temperature protection
Full Load Test
This power supply undergoes a 100 % full load burn-in test
Passive Cooling
Cooling by free air convection

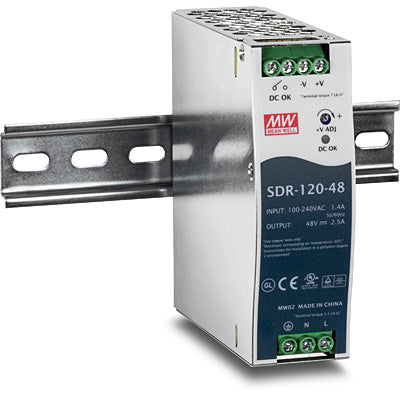

DIN-Rail Mount
Metal enclosure with integrated DIN-rail mount
Extreme Temperatures
Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F)
Safety Certifications
Certified for UL 508 and TUV EN60950-1
Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved
Vibration Resistant
Rated for vibration
LED Indicator
LED indicator confirms power to the unit
120 Watt Power
Provides up to 120 Watts (48 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points
Active PFC
The built-in active Power Factor Controller (PFC, PF > 0.93) helps eliminate unusable reactive power
Overload Protection
Overload/short circuit/over voltage/over temperature protection
Full Load Test
This power supply undergoes a 100 % full load burn-in test
Passive Cooling
Cooling by free air convection
DIN-Rail Mount
Metal enclosure with integrated DIN-rail mount
Extreme Temperatures
Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F)
Safety Certifications
Certified for UL 508 and TUV EN60950-1
Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved
Vibration Resistant
Rated for vibration
LED Indicator
LED indicator confirms power to the unit
| Features | |
|---|---|
| Product type | Power supply |
| Mean time between failures (MTBF) | 2899000 h |
| LED indicators | Yes |
| Product colour | Metallic |
| Certification | CE, UL, TUV |
| Power protection features | Over voltage, Overload, Short circuit |
| Harmonized System (HS) code | 85177900 |
| Colour | |
| Product colour | Metallic |
| Technical details | |
| Mean time between failures (MTBF) | 2899000 h |
| LED indicators | Yes |
| Height | 4.49" (114 mm) |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 120 W |
| Maximum current | 1.8 A |
| Certificates | |
| Certification | CE, UL, TUV |
| Operational conditions | |
| Operating temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Weight | 23.6 oz (670 g) |
| Height | 4.49" (114 mm) |
| Width | 1.57" (40 mm) |
| Depth | 4.92" (125 mm) |
| Logistics data | |
| Harmonized System (HS) code | 85177900 |
