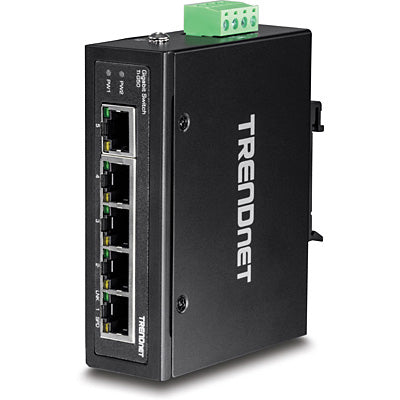

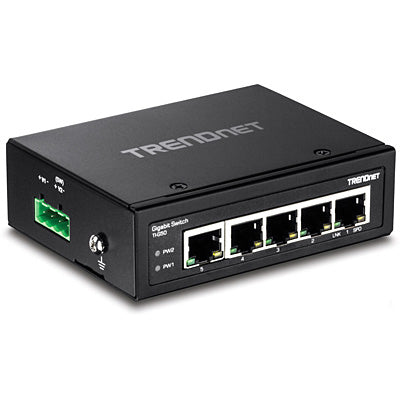

Trendnet TI-G50 network switch Unmanaged Gigabit Ethernet (10/100/1000)
Part number
TI-G50
$121.80 CAD
5-Port Industrial Gigabit Ethernet DIN-Rail Switch
Key Features
- 5 x Gigabit Ethernet ports
- Hardened IP50 rated metal switch
- Extreme operating temperature range of -40° – 75° C (-40° – 167° F)
- Dual power inputs provide redundant power with overload current protection
- Fanless design for silent operation
- 10Gbps switching capacity

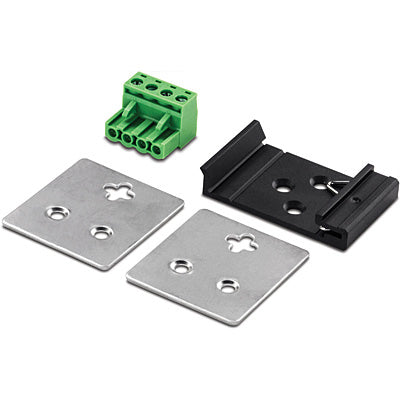

- Includes DIN-Rail mount and wall mount brackets
- NDAA / TAA compliant
Description
TRENDnet’s TI-G50 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit ports and a 10 Gbps switching capacity. Dual redundant power inputs (power adapter sold separately: TI-M6024) with overload current protection support zero downtime applications.Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Network | |
| Networking standards | IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab |
| Full duplex | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
| 10G support | No |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Design | |
| Rack mounting | No |
| International Protection (IP) code | IP30 |
| Housing material | Metal |
| Certification | FCC CE |
| Performance | |
| Buffer size | 1024 KB |
| Mean time between failures (MTBF) | 510304 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 2.76 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Power requirements | 12 - 56 VDC / 18 - 36 VAC |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
| Width | 4.45" (113 mm) |
| Depth | 3.23" (82 mm) |
| Height | 1.22" (31 mm) |
| Weight | 5.93 oz (168 g) |
| Packaging content | |
| User guide | Yes |
| Wall mounting kit | Yes |
| Terminal block included | Yes |
| Packaging data | |
| Wall mounting kit | Yes |
| Terminal block included | Yes |
| User guide | Yes |
| Certificates | |
| Certification | FCC CE |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
