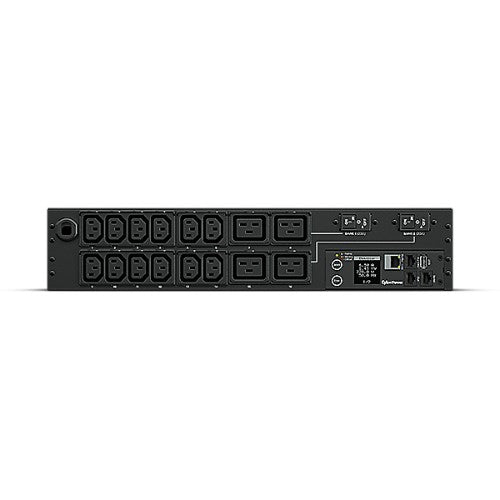

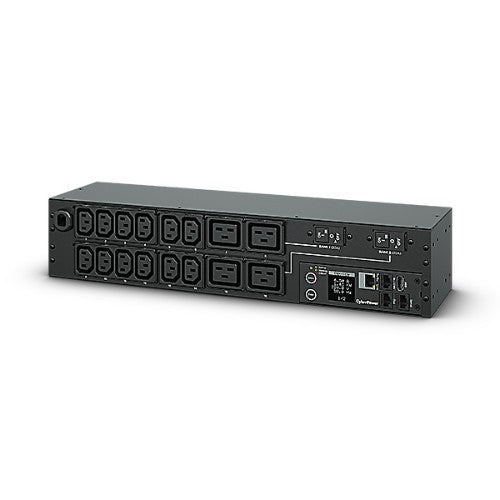

CyberPower PDU31008 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. The unit supports real-time remote monitoring of its connected equipment, making power management much more convenient for users.

The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.

The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel® Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

Design
PDU types	Monitored
Mounting	Horizontal
Type	Single-phase
Product colour	Black
Certification	FCC Class A, UL60950
Rack capacity	2U
Housing material	Steel
Ports & interfaces
Power plug	NEMA L6-30P
AC outlets quantity	16 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Features
LED indicators	Link, Status
Certification	FCC Class A, UL60950
Reset button	Yes
Ergonomics
LED indicators	Link, Status
Power
Nominal input voltage	200 - 240 V
Maximum current	24 A
Nominal output voltage	200 - 240 V
AC input frequency	50 / 60 Hz
Weight & dimensions
Weight	9.04 lbs (4.1 kg)
Width	17" (433 mm)
Depth	4.41" (112 mm)
Height	3.46" (88 mm)
Package width	9.84" (250 mm)
Package depth	5.91" (150 mm)
Package height	240.2" (6100 mm)
Package weight	17.6 oz (500 g)
Packaging data
Package width	9.84" (250 mm)
Package depth	5.91" (150 mm)
Package height	240.2" (6100 mm)
Package weight	17.6 oz (500 g)
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-15 - 55 °C
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	32 - 113 °F
Technical details
Compliance certificates	RoHS
